Kubota B2350

Last Updated: June 2024

Overview

The Kubota B2350 is a 4WD compact utility tractor from the B50 series, manufactured by Kubota since 2014. It features a Kubota D1105 three-cylinder diesel engine, with a displacement of 68.5 ci, capable of producing 21.3 hp at a rated RPM of 2500. The tractor is available with two transmission options: a 9-speed mechanical shuttle or a hydrostatic transmission with infinite (3-range) forward and reverse options. The B2350 runs on standard agricultural tires at the front and rear, with options for lawn/turf tires. It has an open operator station with two-post ROPS, with a cab option available. This model includes a category 1 hitch with a lift capacity of 2139 lbs and features a rear PTO with a speed of 540 rpm. Furthermore, the tractor is equipped with hydrostatic power steering and wet disc type brakes for reliable operation.

Key Specifications

Category: Utility

Power Output: 21.3

Transmission: Gear shift with dry single plate type clutch / Hydrostatic

Operating Weight: ROPS: 1664 / Cab: 2238

Fuel Type: Diesel

Lift Capacity: 2139

Image Gallery

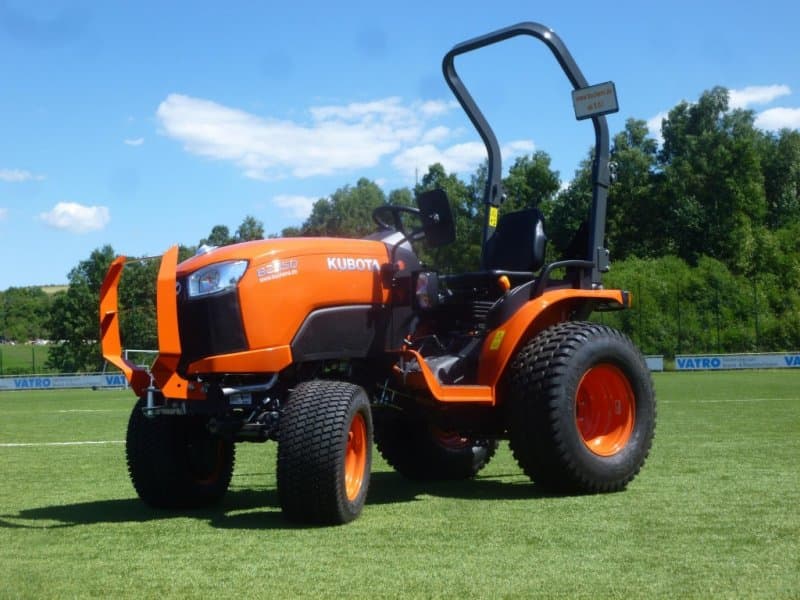

Kubota B2350 Tractor

Kubota B2350 vs. Similar Tractors

Power Output

Below Average

Greater than 11% of similar tractors.

Hitch Capacity

Average

Greater than 37% of similar tractors.

Operating Weight

Above Average

Greater than 82% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: D1105
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Natural Aspirated
Cylinders: 3
Displacement (ci): 68.5
Bore (in): 3.07
Stroke (in): 3.09
Rated RPM: 2500
Power Output (hp): 21.3

Transmission

Type: Gear shift with dry single plate type clutch / Hydrostatic
Forward Gears: 9
Reverse Gears: 9
Total Gears: -

Dimensions

Length (in): ROPS: 107.5 / Cab: 113.7
Width (in): 48.4
Height (in): ROPS: 91.3 / Cab: 82.2
Operating Weight (lb): ROPS: 1664 / Cab: 2238

Power Take-Off (PTO)

PTO Type: Transmission (gear) or independent (HSD)
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: -
Steering Type: Hydrostatic power
Coolant Capacity (qts): 4.86
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag: Front: 6-12, Rear: 9.5-16 / Lawn/turf: Front: 22x8.50-12, Rear: 31x13.5-15
Manufacture - End Year: -
Hitch Type: -
Hitch Category: Category 1
Hitch Position: -
Hitch Capacity (lb): 2139
Operator Station Type: Open operator station with two-post ROPS. Cab (option)
Starter Type: Electric
Brake Type: Wet disc type
Hydraulic System Type: Open center
