Kubota B7500

Last Updated: June 2024

Overview

The Kubota B7500 is a 4WD compact utility tractor from the B series. This tractor was manufactured by the Kubota from 2000 to 2003. The Kubota B7500 is equipped with a 1.0 L, 61.1 cubic inches, three-cylinder diesel engine, and is available with two types of transmissions: a gear shift transmission with a dry disc clutch and 6 forward and 2 reverse gears for the 7500D version or a hydrostatic transmission with infinite (2-range) forward and reverse gears for the B7500HSD version. Additional features include an open operator station with a two-post ROPS and a fuel tank capacity of 19.0 liters. The tractor is also fitted with power steering, wet disc brakes, and has a rear-lift capacity of 615 kg.

Key Specifications

Category: Utility

Power Output: 21

Transmission: Gear / Hydrostatic (multiple options available)

Drive Type: 4WD

Operating Weight: 1323 (Gear Model) / 1367 (Hydro Model)

Fuel Type: Diesel

Image Gallery

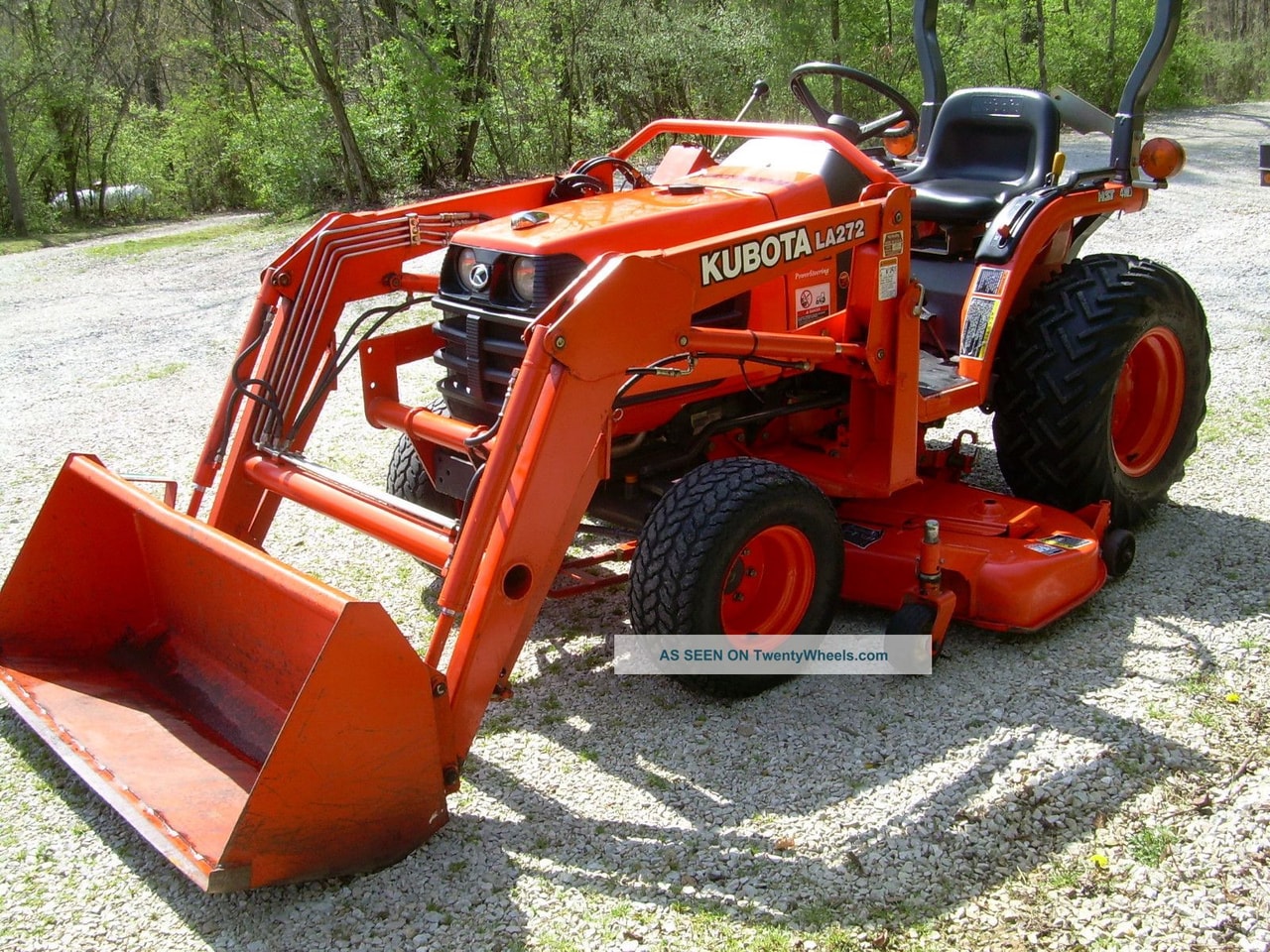

Kubota B7500 Tractor

Kubota B7500 vs. Similar Tractors

Power Output

Below Average

Greater than 11% of similar tractors.

Hitch Capacity

Below Average

Greater than 25% of similar tractors.

Operating Weight

Above Average

Greater than 81% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: D1005-E-D16
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Natural aspiration
Cylinders: 3
Displacement (ci): 61.1
Bore (in): 2.99
Stroke (in): 2.9
Rated RPM: 2600
Power Output (hp): 21

Transmission

Type: Gear / Hydrostatic (multiple options available)
Forward Gears: 6 (gear transmission) / Infinite (2-range) (hydrostatic)
Reverse Gears: 2 (gear transmission) / Infinite (2-range) (hydrostatic)
Total Gears: -

Dimensions

Length (in): 90.2
Width (in): 42.1
Height (in): 76.4
Operating Weight (lb): 1323 (Gear Model) / 1367 (Hydro Model)

Power Take-Off (PTO)

PTO Type: Transmission (gear) / Independent (hydrostatic)
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): 2500 (Mid PTO)
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): 4
Front Tire Diameter (in): Unknown (Size: 6-12)
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): Unknown (Size: 9.5-16)
Front/Rear Rim Diameter (in): -
Tire Type: Ag tires
Manufacture - End Year: 2003
Hitch Type: Three-point hitch (assumed from "Rear Type: I")
Hitch Category: Category 1
Hitch Position: Rear
Hitch Capacity (lb): 1356
Operator Station Type: Open operator station with two-post ROPS
Starter Type: Electric
Brake Type: Wet disc type
Hydraulic System Type: Open center
