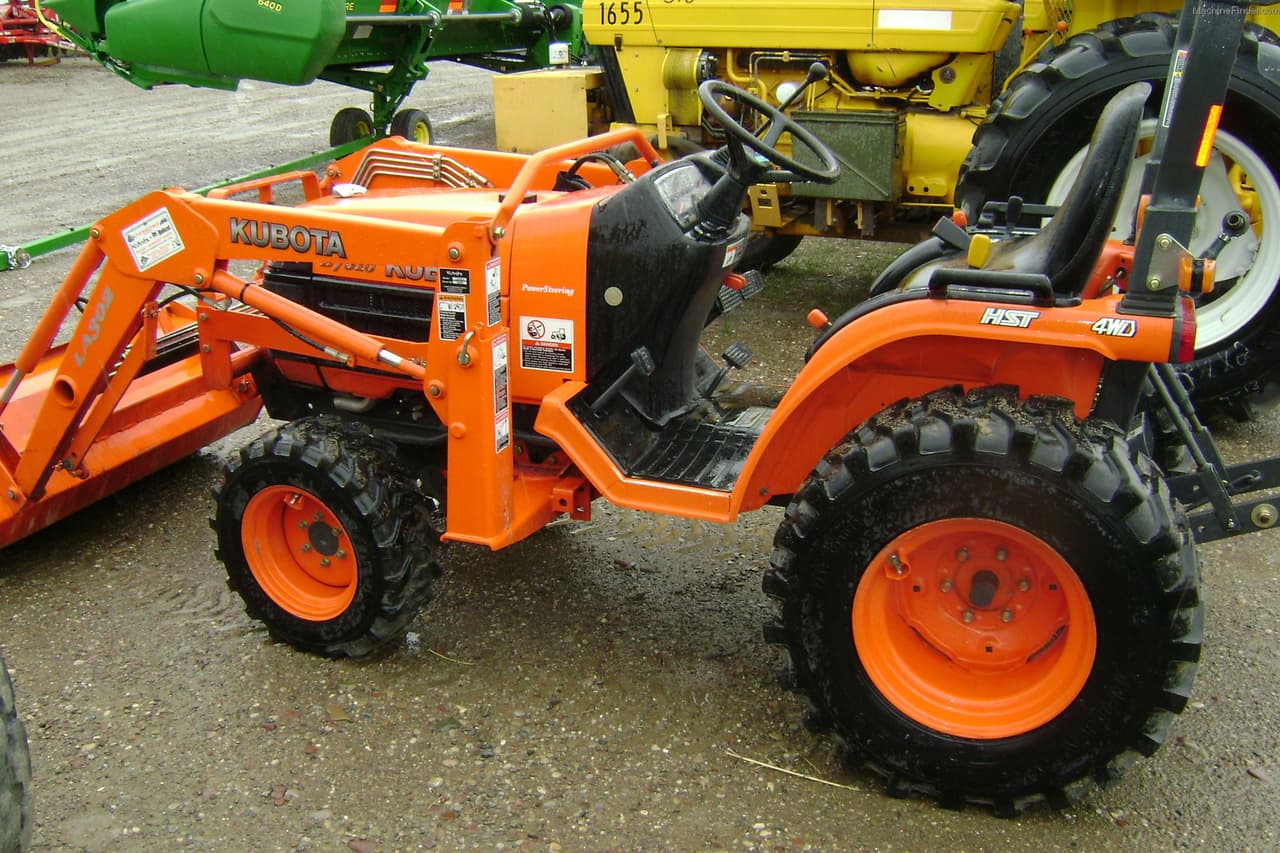

Kubota B7510DT

Last Updated: June 2024

Overview

The Kubota B7510DT is a utility tractor that comes with a gear-type transmission, offering 6 forward gears and 2 reverse gears. The tractor is powered by a Kubota D1005-E-D16 liquid-cooled diesel engine with E-TVCS (Emissions-TVCS), having three cylinders and a displacement of 61.1 cubic inches, capable of delivering 21 horsepower at a rated RPM of 2600. It features a cooling system capacity of 4.4 quarts and a Category 1 type 3-point hitch capable of lifting 1058.3 pounds. The operating weight of this model is 1322.8 pounds. The provided measures include a length of 76 inches and a width of 43.2 inches. The operational and service capacities such as engine oil, fuel capacity, and pump flow capacity ensure this model is sufficient for various utility tasks, combined with its comfortable maneuverability marked by a 6.6 feet turning radius and a maximum speed of 8.8 mph.
Show more...

Key Specifications

Category: Utility

Power Output: 21

Transmission: Gear

Operating Weight: 1322.8

Fuel Type: Diesel

Lift Capacity: 1058.3

Kubota B7510DT vs. Similar Tractors

Power Output
Below Average
Greater than 11% of similar tractors.
Hitch Capacity
Below Average
Greater than 20% of similar tractors.
Operating Weight
Poor
Greater than 9% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
D1005-E-D16
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
E-TVCS
Cylinders
3
Displacement (ci)
61.1
Bore (in)
-
Stroke (in)
-
Rated RPM
2600
Power Output (hp)
21

Transmission

Type
Gear
Forward Gears
6
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
76
Width (in)
43.2
Height (in)
-
Operating Weight (lb)
1322.8

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
4.4
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Cat. I 3 Point Hitch
Hitch Category
Category 1
Hitch Position
Rear
Hitch Capacity (lb)
1058.3
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
