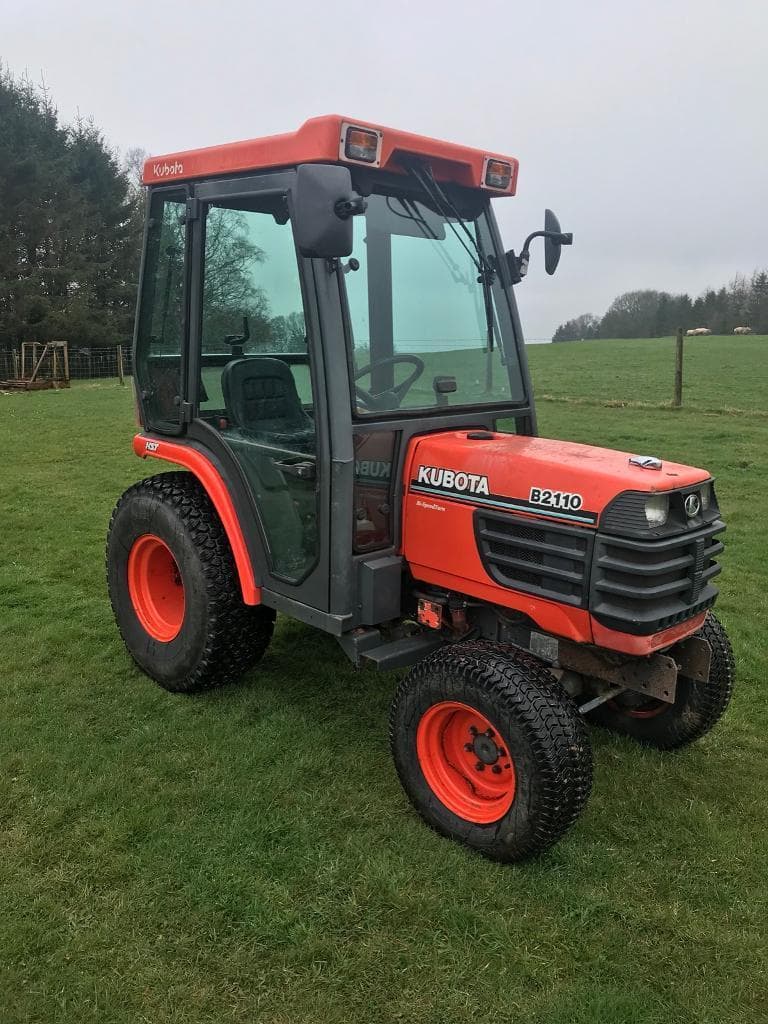

Kubota B2110

Last Updated: June 2024

Overview

The Kubota B2110 is known for its versatility as a 2WD or 4WD compact utility tractor in the L series, crafted by Kubota between the years 2000 and 2005. It harnesses the power from the Kubota D1005 engine, a three-cylinder diesel motor with a displacement of 61.1 cubic inches, producing 21 horsepower at 2,600 RPM. Suitable for various tasks, this tractor comes equipped with integral type power steering and operates using wet disc brakes for reliable stopping power. The tractor boasts an open operator station with two-post ROPS and a substantial 24.0-liter fuel capacity, enhancing its efficiency and comfort during long work days. Additionally, with a lifting capability of 750 kg at the hitch ends, it consolidates its position as a strong performer in its category. The "Bi-Speed Turn" mechanism is an extra feature that manifests in the B2110DB, improving maneuverability and operational finesse.
Show more...

Key Specifications

Category: Utility

Power Output: 21

Operating Weight: 1472

Fuel Type: Diesel

Lift Capacity: 1654

Kubota B2110 vs. Similar Tractors

Power Output
Below Average
Greater than 11% of similar tractors.
Hitch Capacity
Below Average
Greater than 30% of similar tractors.
Operating Weight
Below Average
Greater than 11% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
D1005
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural aspirated
Cylinders
3
Displacement (ci)
61.1
Bore (in)
2.99
Stroke (in)
2.9
Rated RPM
2600
Power Output (hp)
21

Transmission

Type
-
Forward Gears
-
Reverse Gears
-
Total Gears
-

Dimensions

Length (in)
94.7
Width (in)
40.9
Height (in)
89.3
Operating Weight (lb)
1472

Power Take-Off (PTO)

PTO Type
Live
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
Integral type power
Coolant Capacity (qts)
4.02
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
2005
Hitch Type
-
Hitch Category
I
Hitch Position
-
Hitch Capacity (lb)
1654
Operator Station Type
Open operator station with two-post ROPS
Starter Type
Electric
Brake Type
Wet disc
Hydraulic System Type
Open center
