Bobcat CT120

Last Updated: June 2024

Overview

The Bobcat CT120 is a compact utility tractor manufactured by Daedong for the distributor Bobcat in South Korea from 2008 to 2010. It's equipped with a 0.9 L natural aspirated three-cylinder diesel engine that produces 21 horsepower at a maximum of 2800 RPM. The CT120 has a 4x4 four-wheel-drive chassis and power steering, backed by a hydrostatic transmission with infinite (2-range) forward and reverse gears. The open operator station boasts a two-post folding ROPS for safety.

Key Specifications

Category: Utility

Power Output: 21

Transmission: Hydrostatic

Drive Type: Four-Wheel Drive (4WD)

Operating Weight: 2055

Fuel Type: Diesel

Image Gallery

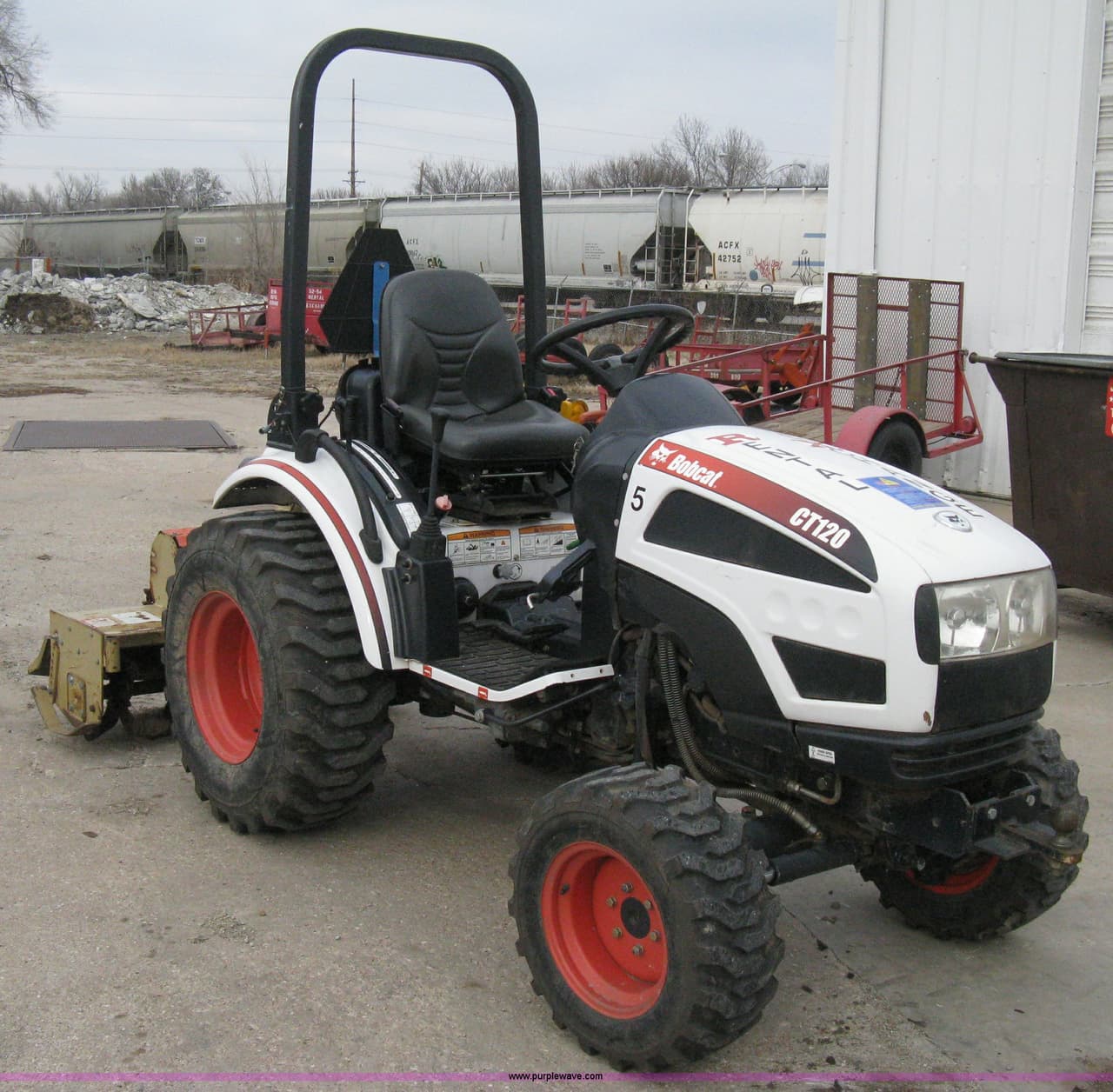

Bobcat CT120 Tractor

Bobcat CT120 vs. Similar Tractors

Power Output

Below Average

Greater than 11% of similar tractors.

Hitch Capacity

Excellent

Greater than 93% of similar tractors.

Operating Weight

Below Average

Greater than 17% of similar tractors.

Technical Specifications

Engine

Manufacturer: Daedong
Model: 3C093
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Natural Aspiration
Cylinders: 3
Displacement (ci): 56.6
Bore (in): 2.95
Stroke (in): 2.76
Rated RPM: 2800
Power Output (hp): 21

Transmission

Type: Hydrostatic
Forward Gears: Infinite (2-range)
Reverse Gears: Infinite (2-range)
Total Gears: -

Dimensions

Length (in): 105.5
Width (in): 46.5
Height (in): 81.5
Operating Weight (lb): 2055

Power Take-Off (PTO)

PTO Type: Middle: Optional, Rear: Live
PTO Speed 1 (rpm): Middle: 2000, Rear: 540
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: Four-Wheel Drive (4WD)
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): 23
Front Tire Width (in): 8.5
Rear Tire Diameter (in): 33
Rear Tire Width (in): 12
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural / Turf
Manufacture - End Year: 2010
Hitch Type: -
Hitch Category: I
Hitch Position: -
Hitch Capacity (lb): 959 lbs (at 24 in)
Operator Station Type: Open operator with two-post folding ROPS
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
