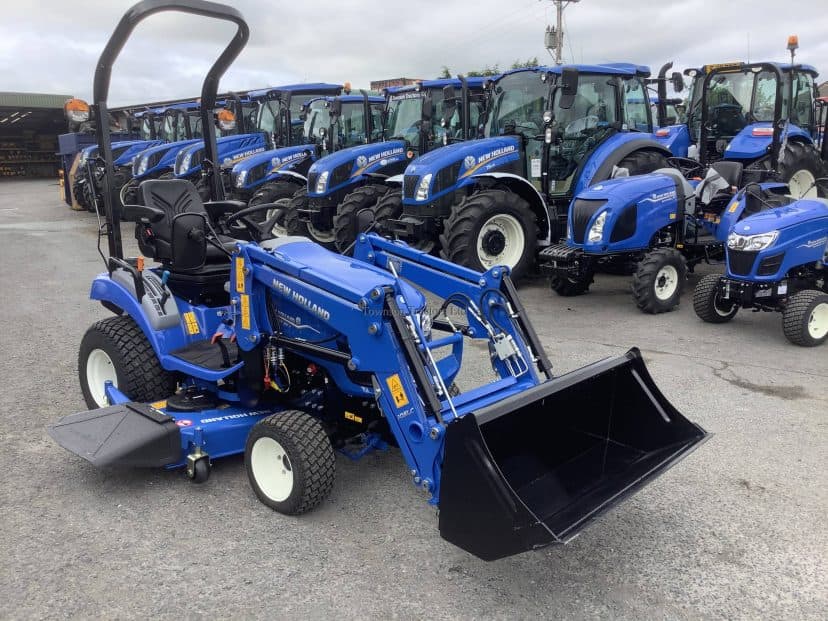

New Holland Boomer 25

Last Updated: June 2024

Overview

The New Holland Boomer 25 is a sub-compact utility tractor that is well-suited for a variety of tasks around small farms, estates, and landscaping projects. Its chassis integrates a 4x4 MFWD 4WD system, providing stability and traction in diverse terrain conditions. Powered by a 27 horsepower diesel engine from Mitsubishi (S3L2), which is liquid-cooled and features mechanical indirect injection with a rated RPM of 2700, this tractor offers robust and reliable performance. The hydrostatic transmission with infinite (2-range) forward and reverse gears, along with hydrostatic power steering, ensures smooth and easy operation. The unit features a wheelbase of 59 inches, which contributes to its stable handling. The tractor's dimensions include a length of 103.6 inches, a width of 43.8 inches, and a height of 85.5 inches with ROPS. It weighs in at 1,702 lbs, which allows for substantial capability without being overly cumbersome. The Boomer 25 also incorporates an open-center hydraulic system and has standard agricultural tires with a front size of 6-12 and a rear size of 9.5-16.
Show more...

Key Specifications

Category: Utility, Sub-Compact

Power Output: 27

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 1,702

Fuel Type: Diesel

New Holland Boomer 25 vs. Similar Tractors

Power Output
Below Average
Greater than 21% of similar tractors.
Operating Weight
Poor
Greater than 0% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
S3L2
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
3
Displacement (ci)
80.4
Bore (in)
3.07
Stroke (in)
3.62
Rated RPM
2700
Power Output (hp)
27

Transmission

Type
Hydrostatic
Forward Gears
Infinite (2-range)
Reverse Gears
Infinite (2-range)
Total Gears
-

Dimensions

Length (in)
103.6
Width (in)
43.8
Height (in)
85.5 with ROPS
Operating Weight (lb)
1,702

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
-
Hitch Type
Category I
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center, fixed displacement gear pump
