New Holland 1630

Last Updated: June 2024

Overview

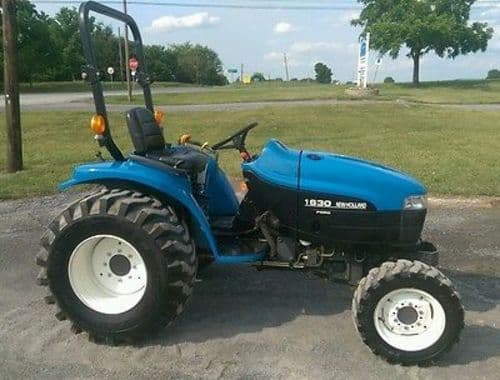

The New Holland 1630, a compact utility tractor from the Boomer series, was manufactured by Shibaura for New Holland between 1997 and 1999. It has the versatility of being either 4x2 2WD or 4x4 MFWD 4WD, accommodating different types of land and farm work requirements. This model comes equipped with a 27.3 horsepower Shibaura diesel engine with a displacement of 81.2 cubic inches, operating at a rated RPM of 2600. Transmission options include a standard 9 forward and 3 reverse gear sliding gear or an infinite 3-range forward and reverse hydrostatic transmission. It features hydrostatic power steering and wet disc brakes for ease of operation and safety, respectively. Additionally, the New Holland 1630 offers a two-post fixed ROPS or an optional foldable ROPS for added protection, and a fuel tank capacity of 7.3 US gallons. The tractor's open center hydraulic system provides reliable and consistent power to attached implements. This model's diverse tire options facilitate its use in agricultural, lawn, turf, and industrial applications. This tractor can be fitted with various attachments, enhancing its utility for a broad array of tasks.
Show more...

Key Specifications

Category: Utility

Power Output: 27.3

Transmission: Sliding gear or Hydrostatic

Drive Type: 4x2 2WD

Operating Weight: 2474 to 2588

Fuel Type: Diesel

New Holland 1630 vs. Similar Tractors

Power Output
Below Average
Greater than 21% of similar tractors.
Hitch Capacity
Average
Greater than 33% of similar tractors.
Operating Weight
Above Average
Greater than 83% of similar tractors.

Technical Specifications

Engine

Manufacturer
Shibaura
Model
Shibaura
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
3
Displacement (ci)
81.2
Bore (in)
-
Stroke (in)
-
Rated RPM
2600
Power Output (hp)
27.3

Transmission

Type
Sliding gear or Hydrostatic
Forward Gears
9 (Sliding gear) or Infinite (Hydrostatic)
Reverse Gears
3 (Sliding gear) or Infinite (Hydrostatic)
Total Gears
-

Dimensions

Length (in)
106.2 (Standard), 115.3 (SuperSteer)
Width (in)
54.3
Height (in)
87.8
Operating Weight (lb)
2474 to 2588

Power Take-Off (PTO)

PTO Type
Middle PTO: Live (hydro), Rear PTO: Continuous live
PTO Speed 1 (rpm)
540 (Rear PTO)
PTO Speed 2 (rpm)
2000 (Middle PTO)
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
4x2 2WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag, Lawn/Turf, Industrial
Manufacture - End Year
1999
Hitch Type
Category I
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
1920 lbs
Operator Station Type
Two-post fixed ROPS or foldable ROPS (optional)
Starter Type
Electric
Brake Type
Wet disc
Hydraulic System Type
Open center
