New Holland 1715

Last Updated: June 2024

Overview

The New Holland 1715 is a versatile tractor meant for various duties around the small farm or worksite. Its Shimaura J843 diesel engine ensures reliable performance and adequate power for its size. Utilitarian by design, it features an open operator station for visibility and ease of access, while protective ROPS ensure the driver's safety during operation. Its hitching capabilities, PTO, and hydraulic power make it suitable for a range of attachments, and the choice between 2WD and 4WD allows it to be configured for different working conditions.

Key Specifications

Category: Utility

Power Output: 27.3

Transmission: Gear

Drive Type: 2WD/4WD

Operating Weight: 1929 (2WD), 2116 (4WD)

Fuel Type: Diesel

Image Gallery

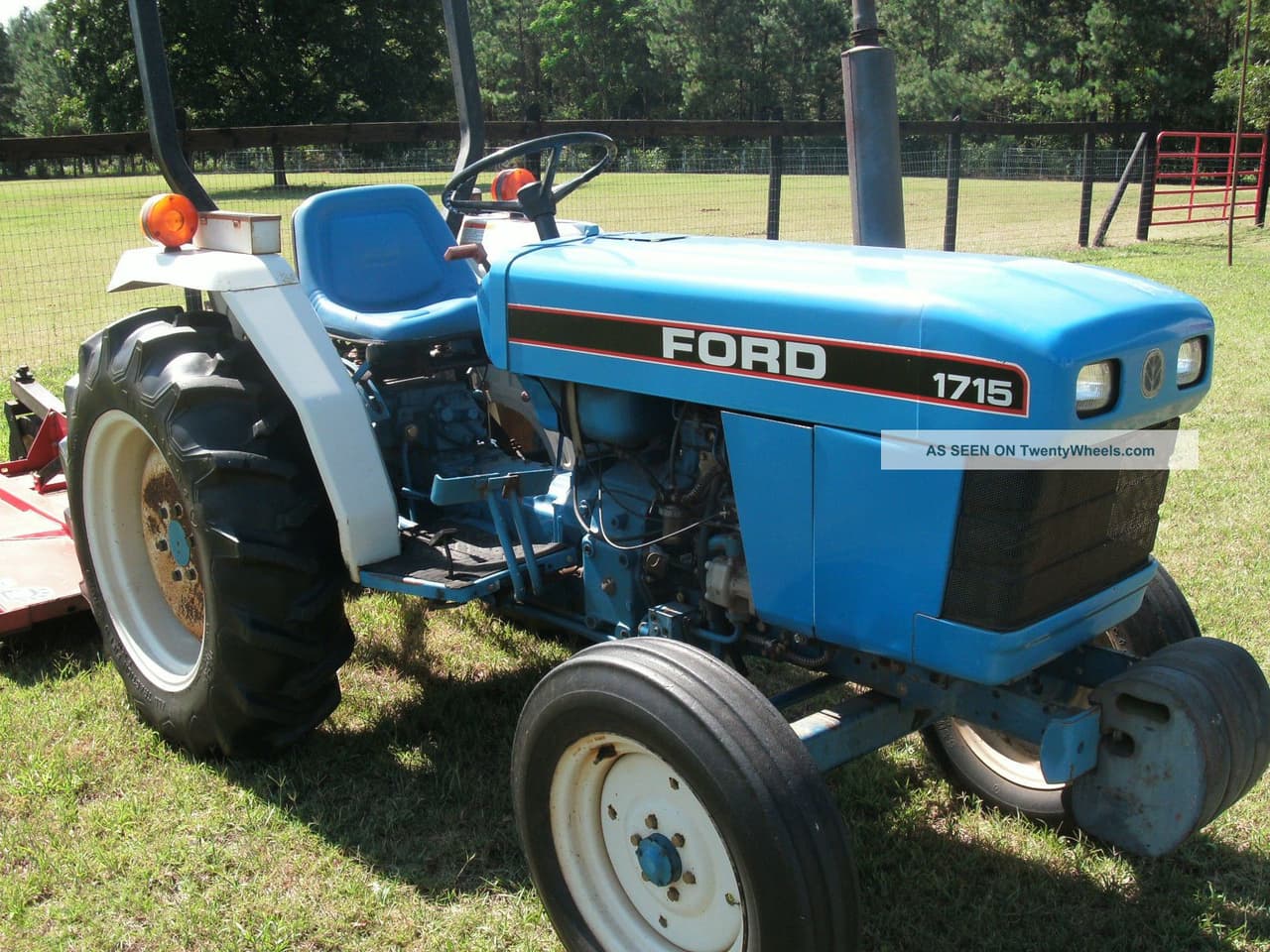

New Holland 1715 Tractor

New Holland 1715 vs. Similar Tractors

Power Output

Below Average

Greater than 21% of similar tractors.

Hitch Capacity

Below Average

Greater than 29% of similar tractors.

Operating Weight

Average

Greater than 69% of similar tractors.

Technical Specifications

Engine

Manufacturer: Shibaura
Model: J843
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally aspirated
Cylinders: 3
Displacement (ci): 81.2
Bore (in): 3.307
Stroke (in): 3.15
Rated RPM: 2600
Power Output (hp): 27.3

Transmission

Type: Gear
Forward Gears: 9
Reverse Gears: 3
Total Gears: -

Dimensions

Length (in): 112.4
Width (in): 51.3
Height (in): 84.4
Operating Weight (lb): 1929 (2WD), 2116 (4WD)

Power Take-Off (PTO)

PTO Type: Transmission
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD or 4x4 MFWD 4WD
Drive Type: 2WD/4WD
Steering Type: Manual/Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: 1997
Hitch Type: Three-Point Hitch
Hitch Category: I
Hitch Position: Rear
Hitch Capacity (lb): 1632
Operator Station Type: Open operator station with two-post ROPS
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Open center
