Massey Ferguson 1825E

Last Updated: June 2024

Overview

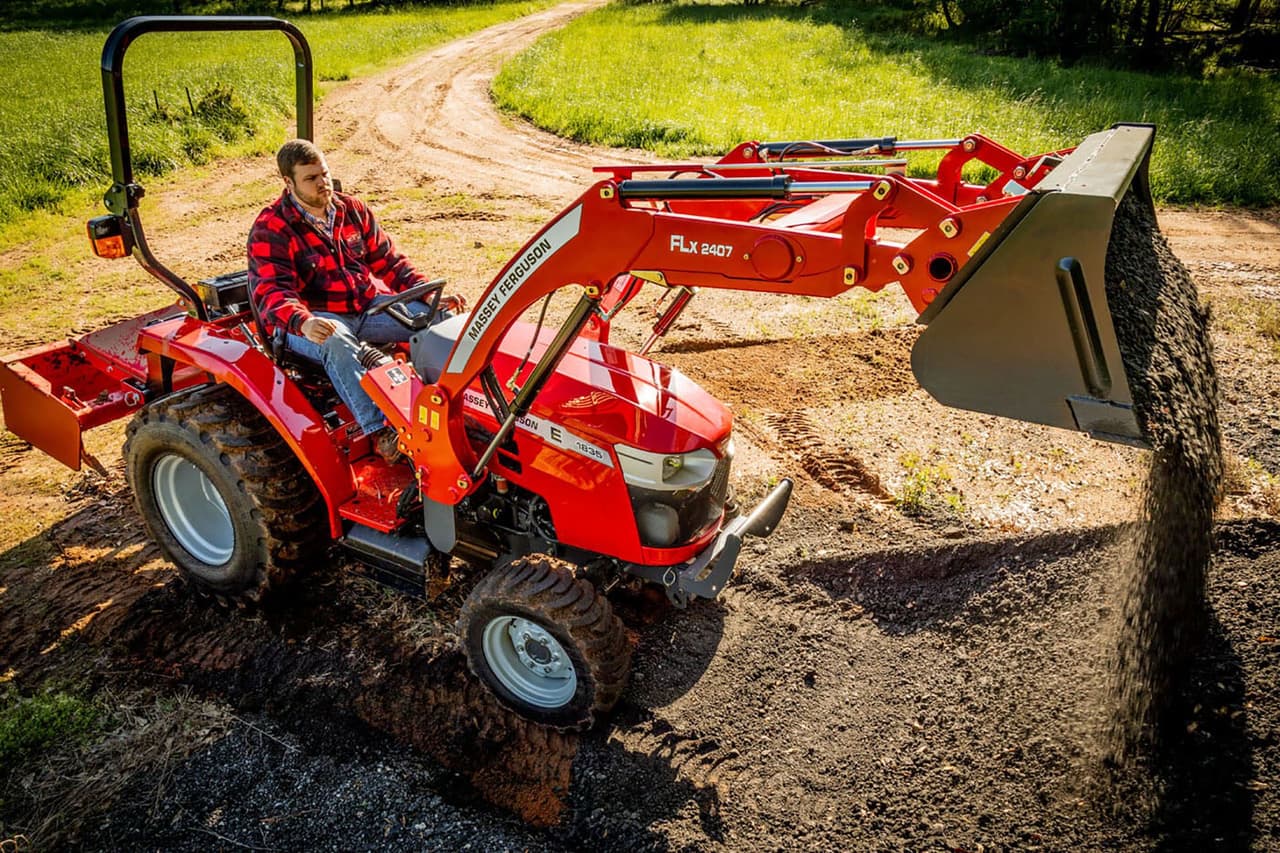

The Massey Ferguson 1825E is a compact utility tractor that is part of the 1800E series manufactured since 2020. It's a versatile machine designed for a variety of tasks around the farm, small holdings, or as a grounds maintenance tractor. Powered by an Iseki 3-cylinder, liquid-cooled, 91.4 ci diesel engine, it provides a power output of 24 horsepower at 2600 RPM. This tractor is equipped with a 4-wheel drive chassis and offers two types of transmissions, a mechanical shuttle with 8 forward and reverse gears, and a hydrostatic transmission with 3-range infinite speeds forward and reverse. It features power steering for ease of maneuverability and has a rear Category I hitch system. The 1825E has a sturdy build with an operating weight of 2668 pounds and measures 116.5 inches in length, 52.4 inches in width, and 97.6 inches in height, with a ground clearance of 11 inches. Tire configurations vary with options for agricultural or industrial use. Further details regarding specific dimensions, PTO speeds, and hydraulic capacity are, however, not provided.
Show more...

Key Specifications

Category: Utility

Power Output: 24

Transmission: Mechanical Shuttle / Hydrostatic

Drive Type: 4WD

Operating Weight: 2668

Fuel Type: Diesel

Massey Ferguson 1825E vs. Similar Tractors

Power Output
Below Average
Greater than 16% of similar tractors.
Operating Weight
Below Average
Greater than 22% of similar tractors.

Technical Specifications

Engine

Manufacturer
Iseki
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
3
Displacement (ci)
91.4
Bore (in)
3.43
Stroke (in)
3.31
Rated RPM
2600
Power Output (hp)
24

Transmission

Type
Mechanical Shuttle / Hydrostatic
Forward Gears
8 / Infinite (3-range)
Reverse Gears
8 / Infinite (3-range)
Total Gears
16 / Infinite (3-range)

Dimensions

Length (in)
116.5
Width (in)
52.4
Height (in)
97.6
Operating Weight (lb)
2668

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
24
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag: Front: 7-16, Rear: 11.2-24, Industrial: Front: 27x8.50-15, Rear: 15x19.5
Manufacture - End Year
-
Hitch Type
Category I
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
