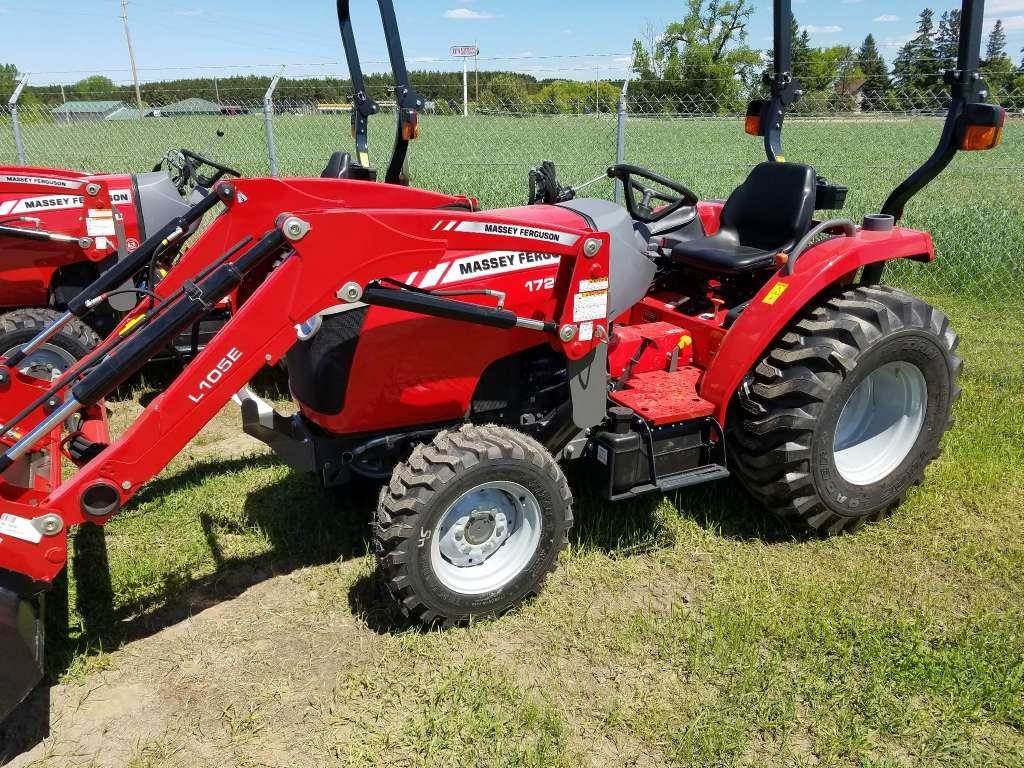

Massey Ferguson 1726E

Last Updated: June 2024

Overview

The Massey Ferguson 1726E is a versatile and durable tractor suitable for a variety of tasks. Manufactured since 2013, it features a powerful Shibaura N843T-F turbocharged diesel engine with a displacement of 91.3 cubic inches, producing 24 horsepower at 2600 RPM. The tractor is equipped with either a gear type transmission with 9 forward and 3 reverse gears or a hydrostatic transmission offering infinite (3-range) forward and reverse speeds. It comes standard with 4-wheel drive, hydrostatic power steering, and wet disc brakes, enhancing the machine's performance and handling. The two-post foldable ROPS ensure operator safety while its rear three-point hitch with a lift capacity of over 1500 pounds demonstrates its utility in a variety of working conditions. Despite its power, the compact design with a length of 116 inches and a width of 52.4 inches ensures that the 1726E is agile and easily maneuverable in tight spaces.
Show more...

Key Specifications

Category: Utility

Power Output: 24

Transmission: Gear or Hydrostatic

Drive Type: 4WD

Operating Weight: 2600 (Gear), 2657 (Hydro)

Fuel Type: Diesel

Massey Ferguson 1726E vs. Similar Tractors

Power Output
Below Average
Greater than 16% of similar tractors.
Hitch Capacity
Below Average
Greater than 28% of similar tractors.
Operating Weight
Below Average
Greater than 21% of similar tractors.

Technical Specifications

Engine

Manufacturer
Shibaura
Model
N843T-F
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
3
Displacement (ci)
91.3
Bore (in)
3.31
Stroke (in)
3.54
Rated RPM
2600
Power Output (hp)
24

Transmission

Type
Gear or Hydrostatic
Forward Gears
9 (Gear), Infinite (Hydrostatic)
Reverse Gears
3 (Gear), Infinite (Hydrostatic)
Total Gears
-

Dimensions

Length (in)
116
Width (in)
52.4
Height (in)
97.6
Operating Weight (lb)
2600 (Gear), 2657 (Hydro)

Power Take-Off (PTO)

PTO Type
Transmission
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Three-Point Hitch
Hitch Category
I
Hitch Position
Rear
Hitch Capacity (lb)
1598.4 lbs
Operator Station Type
Two-post foldable ROPS
Starter Type
Electric
Brake Type
Wet disc
Hydraulic System Type
Open center gear pump
