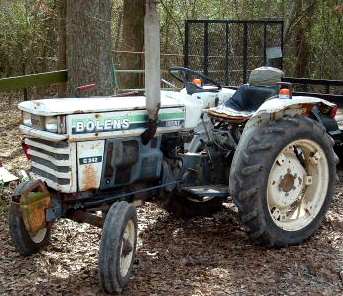

Bolens G242

Last Updated: June 2024

Overview

The Bolens G242 is a durable and rugged tractor designed for a variety of tasks. It features an Isuzu 2AB1, liquid-cooled, two-cylinder diesel engine with a pre-heating induction system. With the gear transmission system, it provides nine forward and three reverse gears that offer flexibility in different working conditions. This tractor is also known for its impressive ground clearance, offering 11.8 inches. The operating weight is 1672 lbs with a wheelbase of 58.3 inches, which makes it sturdy and perfectly balanced for various tasks. Other features include a dry disc clutch, and it uses standard agricultural tires with front: 4.00-12 and rear: 8.3/8-24 specifications. It boasts an open operator station with an electric starter. In terms of dimensions, it is 105.5 inches long, 47.6 inches wide, and 75.4 inches tall.
Show more...

Key Specifications

Power Output: 24

Transmission: Gear

Operating Weight: 1672

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Iseki
Model
Isuzu 2AB1
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Pre-heating
Cylinders
2
Displacement (ci)
72.2
Bore (in)
-
Stroke (in)
-
Rated RPM
2600
Power Output (hp)
24

Transmission

Type
Gear
Forward Gears
9
Reverse Gears
3
Total Gears
-

Dimensions

Length (in)
105.5
Width (in)
47.6
Height (in)
75.4
Operating Weight (lb)
1672

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
12
Front Tire Width (in)
4
Rear Tire Diameter (in)
24
Rear Tire Width (in)
8.3
Front/Rear Rim Diameter (in)
-
Tire Type
Standard tires (ag)
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Open
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
