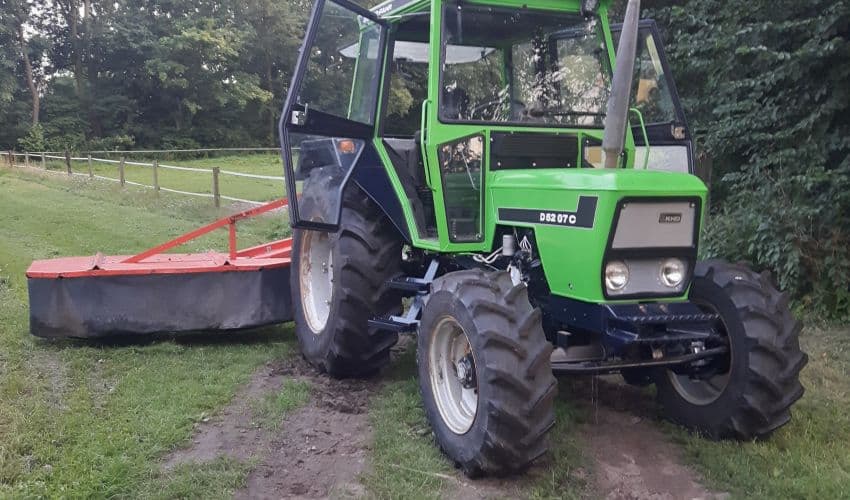

Deutz-Fahr D 5207

Last Updated: September 2024

Overview

The Deutz-Fahr D 5207 is a utility tractor built for everyday farm work. It has a 2WD chassis with power steering, making it easy to handle in fields and around the farm. The tractor uses a synchronized transmission with 8 forward and 4 reverse gears, giving the driver 12 gears to choose from.

Under the hood, the D 5207 has a Deutz F3L 912 engine. This 3-cylinder diesel engine is air-cooled and naturally aspirated. It has an average displacement of 172.5 ci and produces 51 hp at 2300 rpm. The engine's power output is about average compared to similar tractors. The D 5207 weighs 5952 lb, which is above average for its class. It has agricultural tires on both front and rear wheels. The tractor measures 137.4 inches long, 82.3 inches wide, and 95.7 inches tall. It comes with a three-point hitch at the rear, which is category II/I, and uses an open center hydraulic system.
Show more...

Key Specifications

Category: Utility

Power Output: 51 hp (38.0 kW)

Transmission: Synchronized

Drive Type: 2WD

Operating Weight: 5952 lb (2700 kg)

Fuel Type: Diesel

Deutz-Fahr D 5207 vs. Similar Tractors

Power Output

The Power Output for the Deutz-Fahr D 5207 is Average. It is greater than 50% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 4.7K+ tractors in our database)

Operating Weight

The Operating Weight for the Deutz-Fahr D 5207 is Average. It is greater than 60% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 4.4K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Deutz-Fahr D 5207 is Average. It is greater than 50% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Deutz-Fahr D 5207 is Average. It is greater than 42% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Deutz
Model
F3L 912
Cooling Type
Air-Cooled
Fuel Type
Diesel
Induction Type
Natural Aspiration
Cylinders
3
Displacement
172 ci (2.8 L)
Bore
3.94 in (100.1 mm)
Stroke
4.72 in (119.9 mm)
Rated RPM
2300
Power Output
51 hp (38.0 kW)

Transmission

Type
Synchronized
Forward Gears
8
Reverse Gears
4
Total Gears
12

Drivetrain

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power Steering
