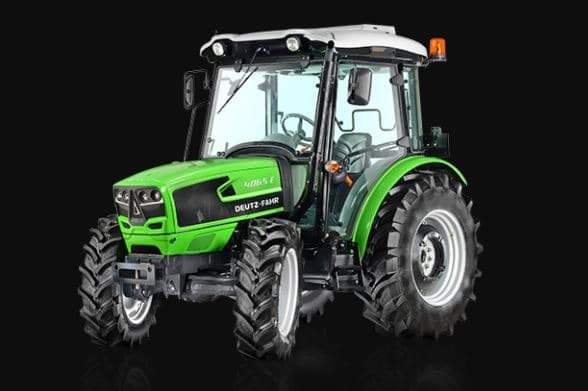

Deutz-Fahr 4050E

Last Updated: June 2024

Overview

The Deutz-Fahr 4050E is a utility tractor that offers a power output of 49.4 horsepower. It features a 4x2 2WD chassis and is equipped with a 15-speed partially synchronized transmission. Power steering provides easier maneuverability. Its engine, produced by SDF, is a turbocharged diesel model with three cylinders delivering a displacement of 183.1 cubic inches. The tractor operates with a 2WD wheelbase ranging from 80.4 inches and a 4WD wheelbase of 77.8 inches. It has a width of 70.2 inches and weighs between 5516 to 6504 pounds.
Show more...

Key Specifications

Category: Utility

Power Output: 49.4

Transmission: Partially synchronized

Drive Type: 2WD

Operating Weight: 5516 to 6504

Fuel Type: Diesel (Inferred from "turbocharged diesel")

Deutz-Fahr 4050E vs. Similar Tractors

Power Output
Average
Greater than 47% of similar tractors.
Operating Weight
Above Average
Greater than 88% of similar tractors.

Technical Specifications

Engine

Manufacturer
SDF (Inferred from "SDF 1000.3 WT")
Model
1000.3 WT
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel (Inferred from "turbocharged diesel")
Induction Type
Turbocharged
Cylinders
3
Displacement (ci)
183.1
Bore (in)
4.13
Stroke (in)
4.56
Rated RPM
-
Power Output (hp)
49.4

Transmission

Type
Partially synchronized
Forward Gears
15
Reverse Gears
15
Total Gears
-

Dimensions

Length (in)
-
Width (in)
70.2
Height (in)
-
Operating Weight (lb)
5516 to 6504

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
II
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
