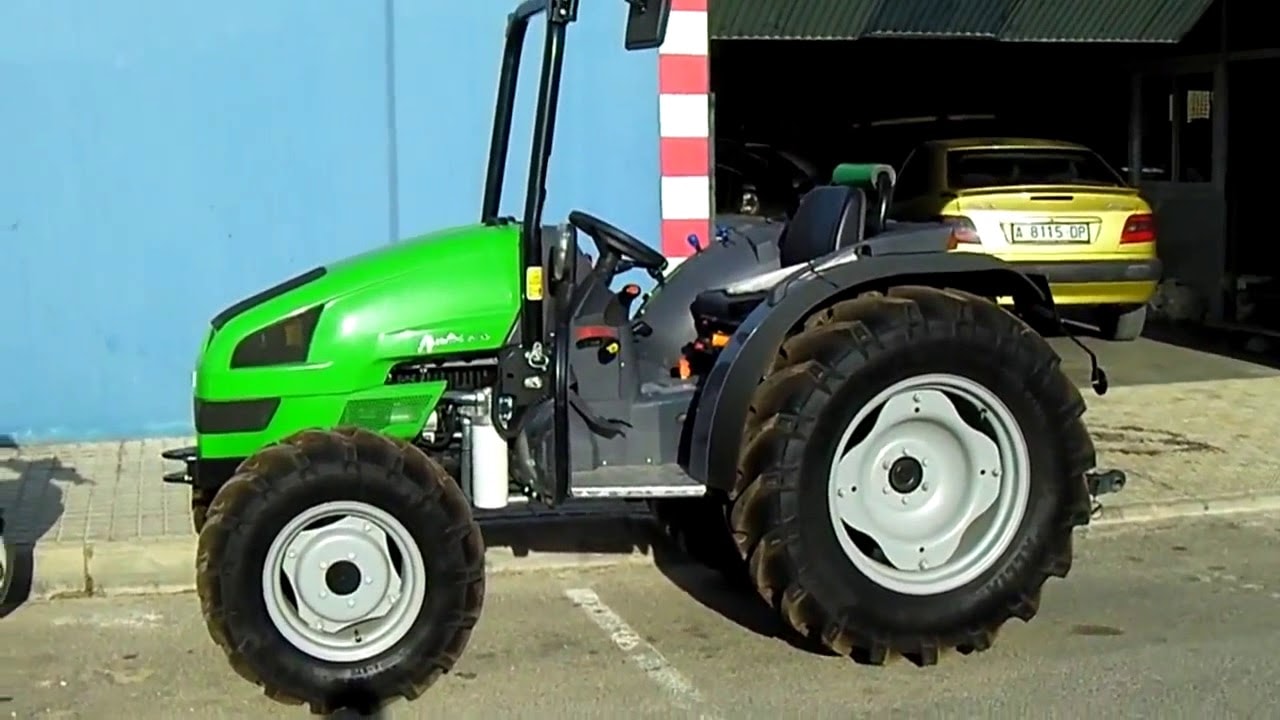

Deutz-Fahr Agrokid 230

Last Updated: June 2024

Overview

The Deutz-Fahr Agrokid 230 is a compact utility tractor perfect for a variety of tasks. Equipped with a 4x4 MFWD 4WD chassis and power steering, it provides superior control and maneuverability. The AgroKid 230 boasts a turbocharged diesel engine by Mitsubishi with 4 cylinders, attaining a power output of 49.6 hp. The engine combines a displacement of 107.3 ci with a bore and stroke of 3.07 and 3.62 inches respectively. The tractor comes with a shuttle transmission and offers 12 forward and reverse gears, which extends to 16 with a creeper. It features an Open Center hydraulic system and is fitted with category I type hitch at the rear, capable of lifting up to 5070 lbs. The operating weight of this model is listed as 2793 lbs when fitted with a ROPS. The tractor dimensions amount to a length of 117.3 inches, width of 51 inches, and a height of 86.4 inches with a cab (or 79.5 inches with ROPS), ensuring excellent stability during operation.
Show more...

Key Specifications

Category: Utility

Power Output: 49.6

Transmission: Shuttle

Drive Type: 4WD

Operating Weight: 2793 (with ROPS)

Fuel Type: Turbocharged Diesel

Image Gallery

Deutz-Fahr Agrokid 230 Tractor Deutz-Fahr Agrokid 230 Tractor Deutz-Fahr Agrokid 230 Tractor Deutz-Fahr Agrokid 230 Tractor Deutz-Fahr Agrokid 230 Tractor Deutz-Fahr Agrokid 230 Tractor Deutz-Fahr Agrokid 230 Tractor Deutz-Fahr Agrokid 230 Tractor Deutz-Fahr Agrokid 230 Tractor Deutz-Fahr Agrokid 230 Tractor

Deutz-Fahr Agrokid 230 vs. Similar Tractors

Power Output
Average
Greater than 48% of similar tractors.
Hitch Capacity
Above Average
Greater than 76% of similar tractors.
Operating Weight
Below Average
Greater than 23% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
-
Cooling Type
Liquid
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Turbocharged Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
107.3
Bore (in)
3.07
Stroke (in)
3.62
Rated RPM
3000
Power Output (hp)
49.6

Transmission

Type
Shuttle
Forward Gears
12 (16 with creeper)
Reverse Gears
12 (16 with creeper)
Total Gears
-

Dimensions

Length (in)
117.3
Width (in)
51
Height (in)
86.4 (with cab), 79.5 (with ROPS)
Operating Weight (lb)
2793 (with ROPS)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power steering
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Category I
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
5070 lbs
Operator Station Type
Optional Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
