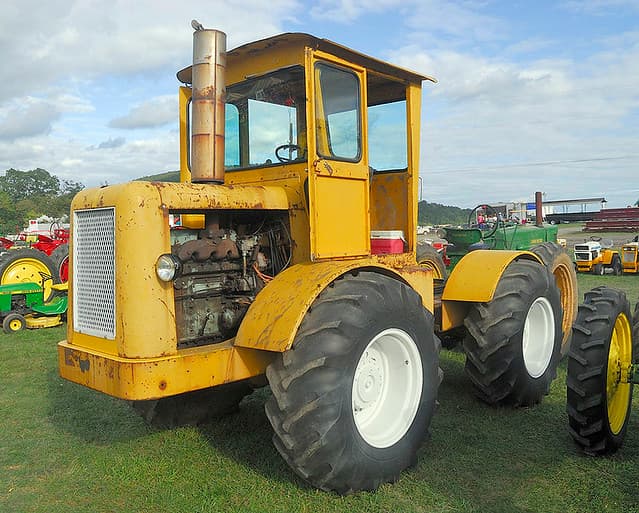

Wagner WA-4

Last Updated: September 2024

Overview

The Wagner WA-4 is a powerful utility tractor built for tough farm work. It has a strong 4-wheel drive system and can turn easily with its hydraulic power steering. The tractor uses a manual transmission with 8 forward gears and 2 reverse gears, giving the driver good control.

Under the hood, the WA-4 has a General Motors diesel engine with 4 cylinders. This engine is very powerful for its size, producing 102 horsepower. It's cooled by liquid and doesn't use a turbocharger. The tractor is quite heavy, weighing 10,300 pounds, which helps it handle big jobs. It's also pretty big, measuring about 15.5 feet long, 6.5 feet wide, and 7 feet tall. The WA-4 has big 26-inch agricultural tires on both the front and back, giving it good traction in fields. It also has a high ground clearance of 14 inches, helping it move over rough ground easily.
Show more...

Key Specifications

Category: Utility

Power Output: 102 hp (76.1 kW)

Transmission: Manual

Drive Type: 4WD

Operating Weight: 10300 lb (4672 kg)

Fuel Type: Diesel

Wagner WA-4 vs. Similar Tractors

Power Output

The Power Output for the Wagner WA-4 is Above Average. It is greater than 84% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 4.7K+ tractors in our database)

Operating Weight

The Operating Weight for the Wagner WA-4 is Above Average. It is greater than 87% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 4.4K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Wagner WA-4 is Average. It is greater than 62% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Wagner WA-4 is Below Average. It is greater than 28% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
General Motors
Model
Apr-53
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
4
Displacement
212 ci (3.5 L)
Bore
3.88 in (98.4 mm)
Stroke
4.50 in (114.3 mm)
Rated RPM
2200
Power Output
102 hp (76.1 kW)

Transmission

Type
Manual
Forward Gears
8
Reverse Gears
2

Drivetrain

Chassis
4x4 articulated 4WD
Drive Type
4WD
Steering Type
Hydraulic power
