Wagner TR-6

Last Updated: June 2024

Overview

The Wagner TR-6 is an articulated four-wheel drive tractor, characterized by its substantial operating weight of 12,700 lbs and a versatile 4x4 chassis. With a robust Cummins JF-6 diesel engine, the TR-6 offers a displacement of 401 cubic inches and a power output of 105 hp at 2,200 RPM, paired with a substantial torque of 280 lb-ft at 1,600 RPM. Its power is managed through an 8-speed manual transmission, allowing for 8 forward gears and 2 reverse gears. The TR-6's maneuverability is supported by hydraulic power steering and it rides on standard 13.00x26 agricultural tires, indicating its suitability for a variety of demanding field tasks. Overall, the Wagner TR-6's design reflects a focus on power and functionality for large-scale agricultural operations.

Key Specifications

Category: Utility, Four-Wheel Drive

Power Output: 105

Transmission: Manual

Drive Type: 4WD

Operating Weight: 12700

Fuel Type: Diesel

Image Gallery

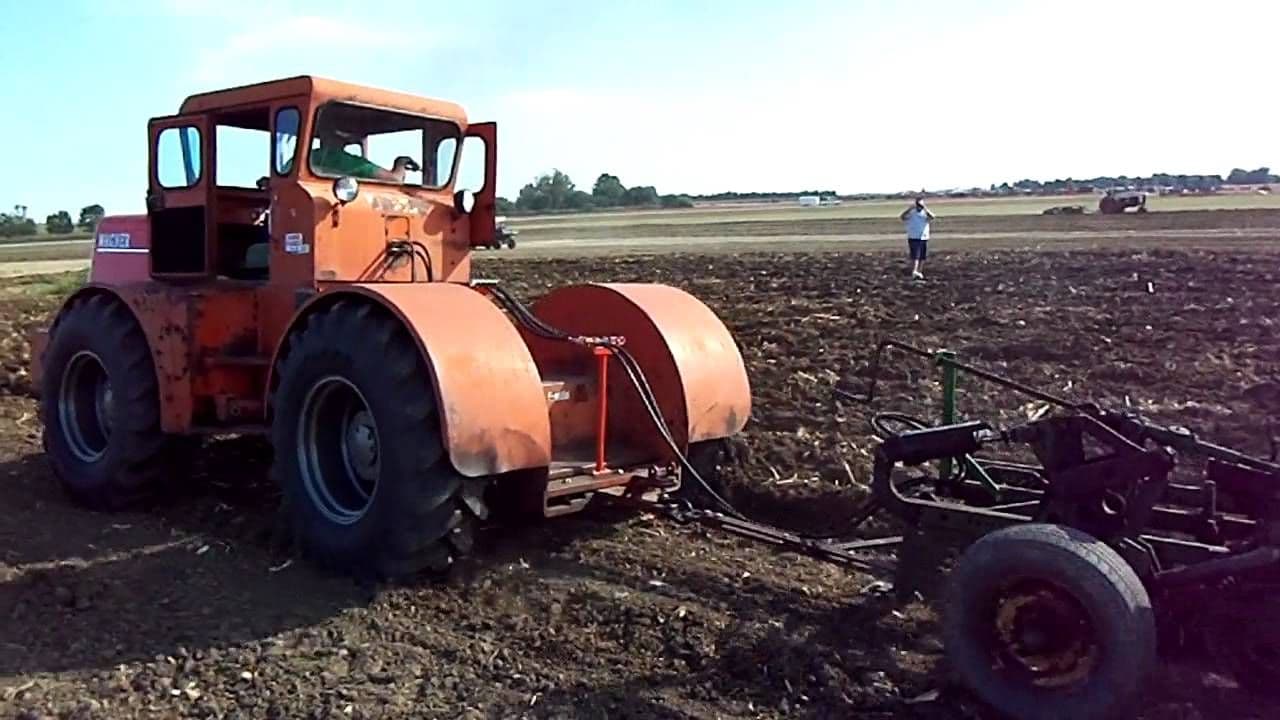

Wagner TR-6 Tractor

Wagner TR-6 vs. Similar Tractors

Power Output

Above Average

Greater than 84% of similar tractors.

Operating Weight

Average

Greater than 66% of similar tractors.

Technical Specifications

Engine

Manufacturer: Cummins
Model: JF-6
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: -
Cylinders: 6
Displacement (ci): 401
Bore (in): 4.125
Stroke (in): 5
Rated RPM: 2200
Power Output (hp): 105

Transmission

Type: Manual
Forward Gears: 8
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): 190
Width (in): 81
Height (in): 80 (103 with cab)
Operating Weight (lb): 12700

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 articulated 4WD
Drive Type: 4WD
Steering Type: Hydraulic power
Coolant Capacity (qts): 30
Front Tire Diameter (in): 26
Front Tire Width (in): -
Rear Tire Diameter (in): 26
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: -
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Unknown (cab height provided, suggesting possibility of a cab)
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
