AGCO LT75A

Last Updated: June 2024

Overview

The AGCO LT75A is a 2WD utility tractor, powered by a 100 hp (74.6 kW) Sisu engine with a turbocharged four-cylinder liquid-cooled design, an 18.5:1 compression ratio, and a 268.3 cubic inch displacement. It features hydrostatic power steering and a 16-speed powershift transmission, allowing versatility across a range of tasks. Its operating weight ranges from 8,820 lbs for the 2WD platform version, and it is fitted with 14.9R24 front tires and 18.4R34 rear agricultural tires. The tractor's dimensions are 174 inches in length and 106.5 inches in height, with a wheelbase of 107.5 inches to provide stability and comfort during operations.

Key Specifications

Category: Utility

Power Output: 100

Transmission: powershift

Drive Type: 2WD

Operating Weight: 8820 (2WD platform)

Fuel Type: Diesel

Image Gallery

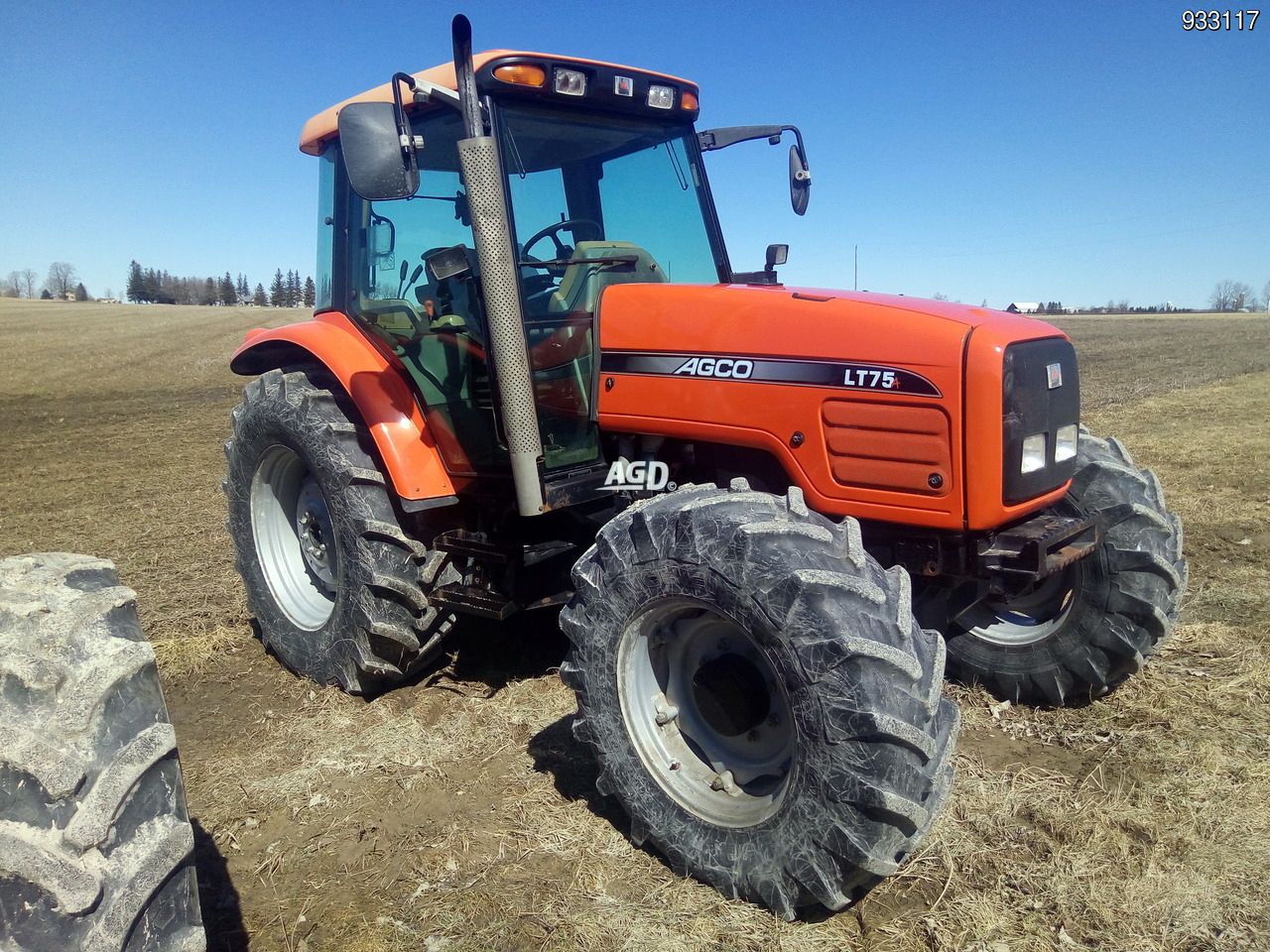

AGCO LT75A Tractor

AGCO LT75A vs. Similar Tractors

Power Output

Above Average

Greater than 82% of similar tractors.

Operating Weight

Above Average

Greater than 80% of similar tractors.

Technical Specifications

Engine

Manufacturer: Sisu
Model: -
Cooling Type: liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 4
Displacement (ci): 268.3
Bore (in): 4.252
Stroke (in): 4.724
Rated RPM: Engine - Rated RPM | 2200
Power Output (hp): 100

Transmission

Type: powershift
Forward Gears: 16
Reverse Gears: 16
Total Gears: -

Dimensions

Length (in): 174
Width (in): -
Height (in): 106.5
Operating Weight (lb): 8820 (2WD platform)

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: hydrostatic power
Coolant Capacity (qts): -
Front Tire Diameter (in): 24
Front Tire Width (in): 14.9
Rear Tire Diameter (in): 34
Rear Tire Width (in): 18.4
Front/Rear Rim Diameter (in): -
Tire Type: Ag (agricultural)
Manufacture - End Year: -
Hitch Type: Rear Type II
Hitch Category: -
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: 12 volts
Brake Type: -
Hydraulic System Type: Open center
