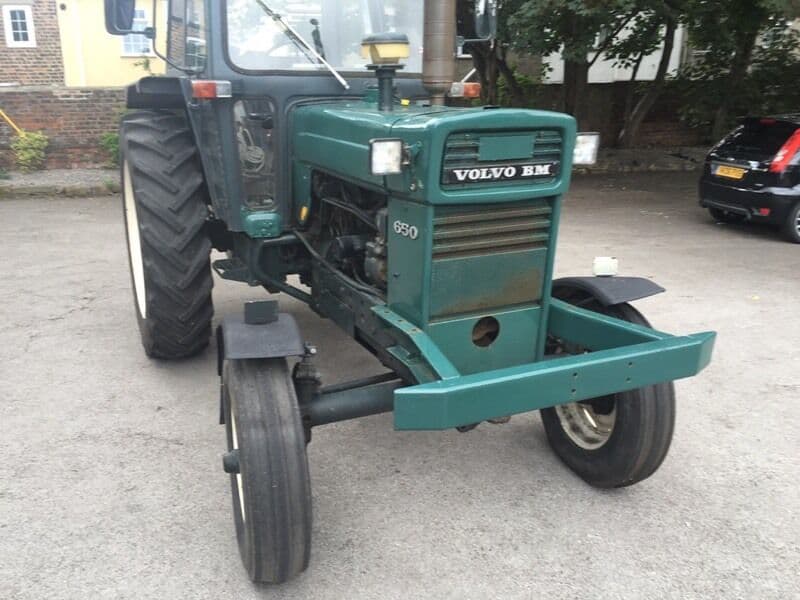

Volvo T650

Last Updated: June 2024

Overview

The Volvo T650 is a durable and capable tractor, designed to meet a variety of agricultural and industrial needs. It is powered by a Volvo D42 diesel engine, capable of producing 73 horsepower. With a sturdy 4x2 (two-wheel drive) chassis and a two-speed power shift transmission featuring 16 forward and 4 reverse gears, it is designed for both efficiency and reliability in a range of working conditions. The tractor's power steering and liquid-cooled engine ensure comfortable and efficient operations. The T650 boasts a wheelbase of 96.1 inches, providing stability and ease of maneuverability despite its substantial operating weight of 8378 pounds. The tractor's dimensions with a length of 144.9 inches, width of 76.4 inches, and height of 104.3 inches give it a commanding presence that is balanced by its efficient design. Despite the available data, details such as the specific category, hitch type, and hydraulic system type remain unknown, which would otherwise provide a more comprehensive understanding of the tractor's capabilities.
Show more...

Key Specifications

Power Output: 73

Transmission: Two-speed power shift

Drive Type: Two-wheel drive (2WD)

Operating Weight: 8378

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Volvo
Model
D42
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
256.28
Bore (in)
4.16
Stroke (in)
4.72
Rated RPM
2300
Power Output (hp)
73

Transmission

Type
Two-speed power shift
Forward Gears
16
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
144.9
Width (in)
76.4
Height (in)
104.3
Operating Weight (lb)
8378

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2
Drive Type
Two-wheel drive (2WD)
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
18
Front Tire Width (in)
7.5
Rear Tire Diameter (in)
38
Rear Tire Width (in)
14.9/13
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
