Volvo 2254

Last Updated: June 2024

Overview

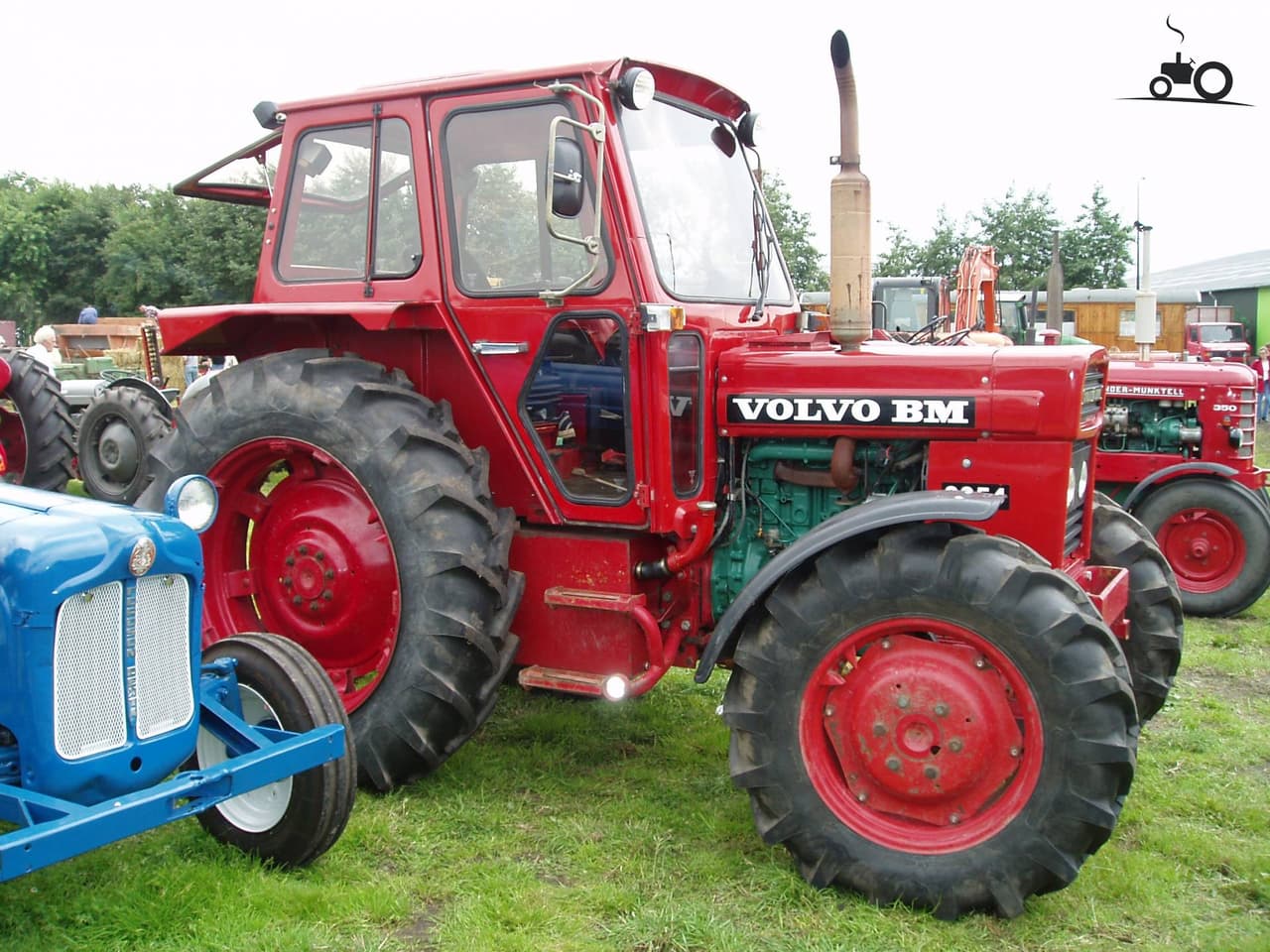

The Volvo 2254 is a utility tractor that showcases robust capabilities, suited for a variety of tasks around the farm or worksite. At its core is a 4-cylinder Volvo D39T diesel engine with liquid cooling, direct injection, and a displacement of 235.6 ci, producing a solid 68 hp. This engine runs at a rated RPM of 2200 and delivers a torque of 183.7 lb-ft at 1400 RPM. The tractor has a hydrostatic power steering system and a 4-wheel-drive chassis. Transmission is handled via an 8-speed synchromesh equipped with a two-speed power shift, translating to 16 forward and 8 reverse gears. The tractor's chassis supports a wheelbase of 85.43 inches, ensuring stability and maneuverability, and has a weight of 7308 lbs, indicating its substantial build quality. The 2254 model's dimensions stand at a length of 145.67 inches and a height of 100.39 inches, underlining its considerable size. It is fitted with "Ag" type tires, measuring 11.2-24 at the front and 13.6-38 at the rear. This tractor is also equipped with a Category II hitch system, typically at the rear, although lift capacity details are not specified.
Show more...

Key Specifications

Category: Utility

Power Output: 68

Transmission: Synchromesh with two-speed power shift

Drive Type: 4WD

Operating Weight: 7308

Fuel Type: Diesel

Volvo 2254 vs. Similar Tractors

Power Output
Average
Greater than 63% of similar tractors.
Operating Weight
Average
Greater than 54% of similar tractors.

Technical Specifications

Engine

Manufacturer
Volvo
Model
D39T
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Direct injection
Cylinders
4
Displacement (ci)
235.6
Bore (in)
3.874
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
68

Transmission

Type
Synchromesh with two-speed power shift
Forward Gears
16
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
145.67
Width (in)
-
Height (in)
100.39
Operating Weight (lb)
7308

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
12 volts
Brake Type
-
Hydraulic System Type
-
