Antonio Carraro TGF 7800S

Last Updated: June 2024

Overview

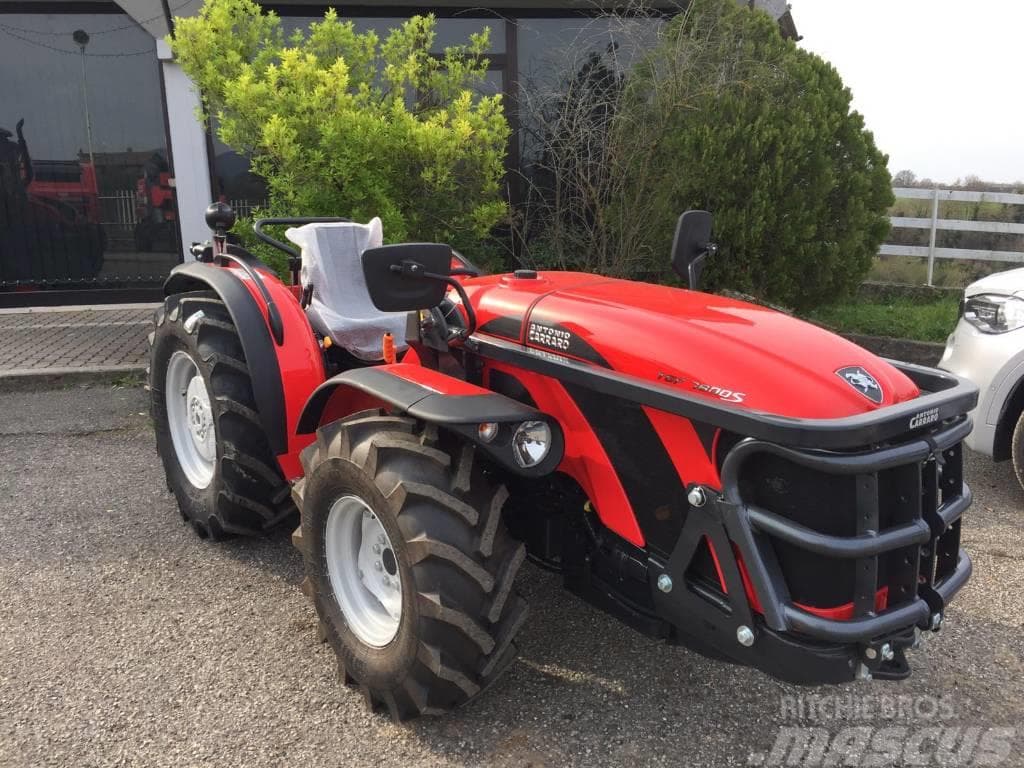

The Antonio Carraro TGF 7800S is a versatile utility tractor known for its reliable performance. It features a powerful 71 hp Yanmar diesel engine with a 202.5 ci displacement and a top-rated RPM of 2500. This 4-wheel drive tractor has a 4x4 articulated chassis, indicating high maneuverability. The TGF 7800S sports a direct injection fuel system for efficient fuel delivery and a liquid cooling system that ensures optimal operating temperatures are maintained. Additionally, it provides a comfortable and user-friendly operator station with the option of a ROPS or a StarLight Cab. The tractor has efficient 16-speed forward and reverse transmission, which allows precise control over speed and power. It also flaunts Ag type tires for improved traction in various conditions and is designed to meet Stage 3A emissions standards. The TGF 7800S is a utility tractor that delivers robust performance and reliable service.
Show more...

Key Specifications

Category: Utility

Power Output: 71

Transmission: Manual

Drive Type: 4WD

Operating Weight: 5093

Fuel Type: Diesel

Image Gallery

Antonio Carraro TGF 7800S Tractor Antonio Carraro TGF 7800S Tractor Antonio Carraro TGF 7800S Tractor Antonio Carraro TGF 7800S Tractor Antonio Carraro TGF 7800S Tractor Antonio Carraro TGF 7800S Tractor Antonio Carraro TGF 7800S Tractor Antonio Carraro TGF 7800S Tractor

Antonio Carraro TGF 7800S vs. Similar Tractors

Power Output
Average
Greater than 65% of similar tractors.
Operating Weight
Average
Greater than 43% of similar tractors.

Technical Specifications

Engine

Manufacturer
Yanmar
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
OHV (4-cylinder, 16 valve)
Fuel Type
Diesel
Induction Type
Natural (direct injection)
Cylinders
4
Displacement (ci)
202.5
Bore (in)
3.86
Stroke (in)
4.33
Rated RPM
2500
Power Output (hp)
71

Transmission

Type
Manual
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
135.6
Width (in)
52.4
Height (in)
90.2 (with ROPS), 86.4 (with Cab)
Operating Weight (lb)
5093

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 articulated 4WD
Drive Type
4WD
Steering Type
Hydraulic power steering
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
8.25
Rear Tire Diameter (in)
-
Rear Tire Width (in)
11.2
Front/Rear Rim Diameter (in)
-
Tire Type
Ag tires
Manufacture - End Year
-
Hitch Type
Category II/I
Hitch Category
3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Either ROPS or StarLight Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
