Versatile 836

Last Updated: June 2024

Overview

The Versatile 836 is a robust four-wheel drive (4WD) tractor designed for a variety of agricultural tasks. With a 4x4 articulated chassis, it operates using a 210 hp Cummins turbocharged diesel engine. It has a liquid cooling system with a 55-quart capacity. The tractor's transmission offers 12 forward gears and 3 reverse gears, providing flexibility for different working conditions. It features a closed center load sensing hydraulic system and a hitch lift capacity of 21,700 lbs at 24 inches. The tractor maintains an operating weight of 24,280 lbs and supports agricultural tires with a diameter of 18.4 inches. The Versatile 836 emphasizes power and adaptability in its operations, suitable for a range of agriculture-related duties.

Key Specifications

Category: Utility, Four-Wheel Drive

Power Output: 210

Drive Type: 4WD

Operating Weight: 24,280

Fuel Type: diesel

Lift Capacity: 21,700 (at 24 inches)

Image Gallery

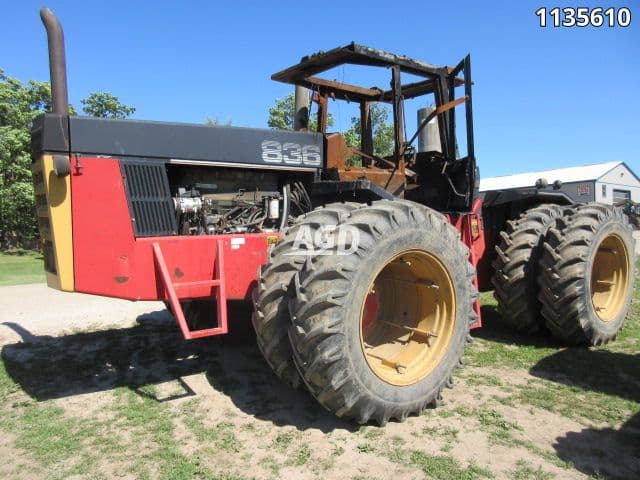

Versatile 836 Tractor

Versatile 836 vs. Similar Tractors

Power Output

Excellent

Greater than 92% of similar tractors.

Hitch Capacity

Below Average

Greater than 14% of similar tractors.

Operating Weight

Poor

Greater than 6% of similar tractors.

Technical Specifications

Engine

Manufacturer: Cummins
Model: -
Cooling Type: liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: diesel
Induction Type: turbocharged
Cylinders: 6
Displacement (ci): 611
Bore (in): 4.921
Stroke (in): 5.354
Rated RPM: 2100
Power Output (hp): 210

Transmission

Type: -
Forward Gears: 12
Reverse Gears: 3
Total Gears: -

Dimensions

Length (in): 260
Width (in): -
Height (in): 131 (exhaust height)
Operating Weight (lb): 24,280

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 articulated 4WD
Drive Type: 4WD
Steering Type: hydraulic power
Coolant Capacity (qts): 55
Front Tire Diameter (in): 18.4
Front Tire Width (in): -
Rear Tire Diameter (in): 18.4
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag (Agricultural)
Manufacture - End Year: -
Hitch Type: III/IVN
Hitch Category: Category 3
Hitch Position: Rear
Hitch Capacity (lb): 21,700 (at 24 inches)
Operator Station Type: Cab
Starter Type: Electric Starter
Brake Type: -
Hydraulic System Type: Closed center load sensing
