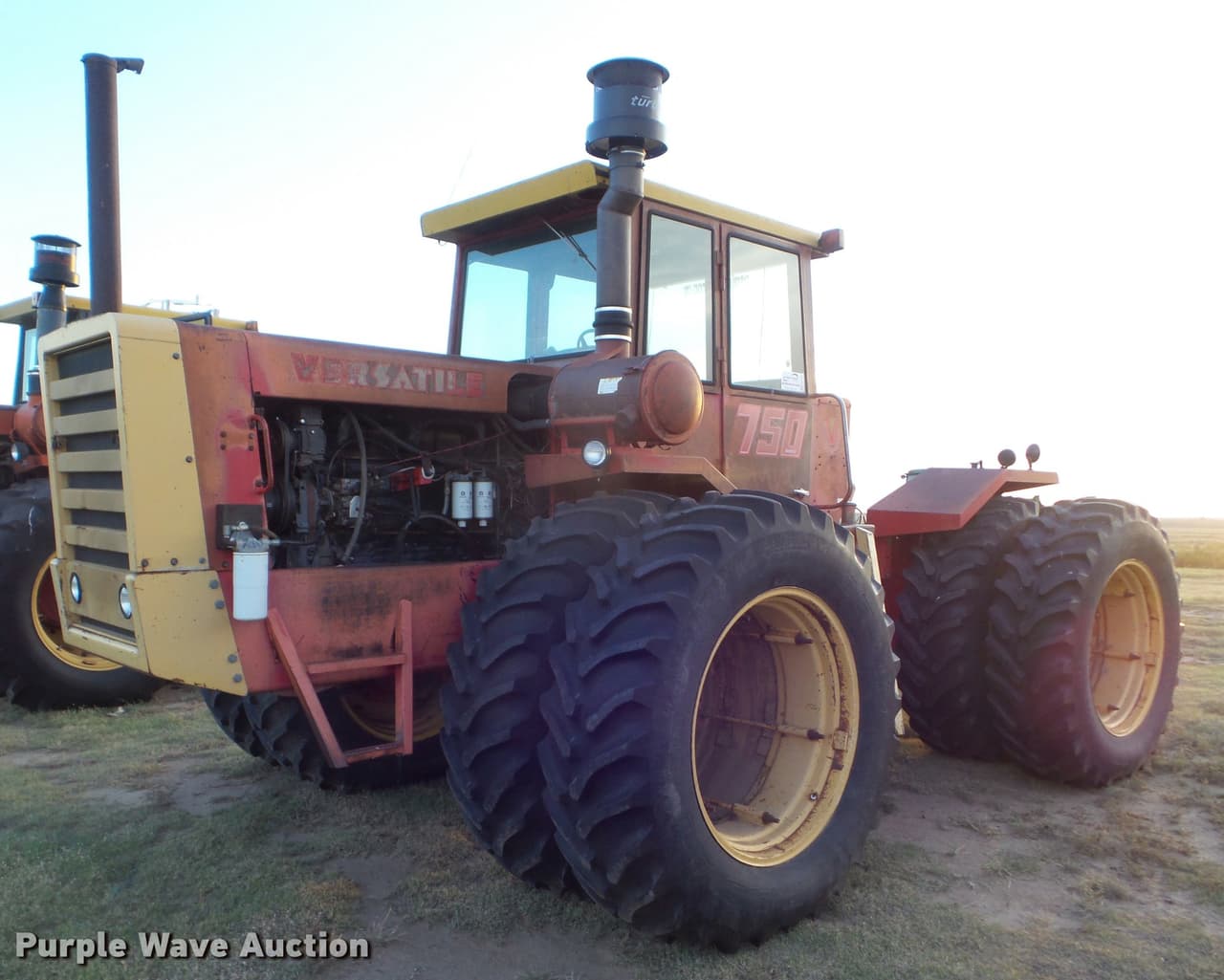

Versatile 750

Last Updated: September 2024

Overview

The Versatile 750 is a powerful utility tractor built for tough jobs. It has a 4x4 articulated frame and four-wheel drive, making it great for working in rough fields. The tractor is big and strong, weighing 25,000 pounds, which is very heavy compared to most tractors.

Under the hood, the Versatile 750 has a Cummins diesel engine with 6 cylinders. This engine is very large, with 855 cubic inches of displacement, putting it near the top for engine size. It can produce 220 horsepower, which is also very high for tractors. The tractor has 12 forward gears and 4 reverse gears, giving the driver lots of options for different tasks. It also has a strong hydraulic system and a comfortable cab for the driver. With its size and power, the Versatile 750 is ready to handle big farming jobs with ease.
Show more...

Key Specifications

Category: Utility

Power Output: 220 hp (164.1 kW)

Transmission: gear

Drive Type: 4WD

Operating Weight: 25000 lb (11340 kg)

Fuel Type: diesel

Versatile 750 vs. Similar Tractors

Power Output

The Power Output for the Versatile 750 is Excellent. It is greater than 95% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 4.7K+ tractors in our database)

Operating Weight

The Operating Weight for the Versatile 750 is Excellent. It is greater than 96% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 4.4K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Versatile 750 is Excellent. It is greater than 97% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Versatile 750 is Below Average. It is greater than 15% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Cummins
Model
N-855-C220
Cooling Type
liquid-cooled
Cylinder Orientation
inline
Fuel Type
diesel
Cylinders
6
Displacement
855 ci (14.0 L)
Bore
5.50 in (139.7 mm)
Stroke
6.00 in (152.4 mm)
Rated RPM
2100
Power Output
220 hp (164.1 kW)

Transmission

Type
gear
Forward Gears
12
Reverse Gears
4

Drivetrain

Chassis
4x4 articulated 4WD
Drive Type
4WD
Steering Type
articulated power
