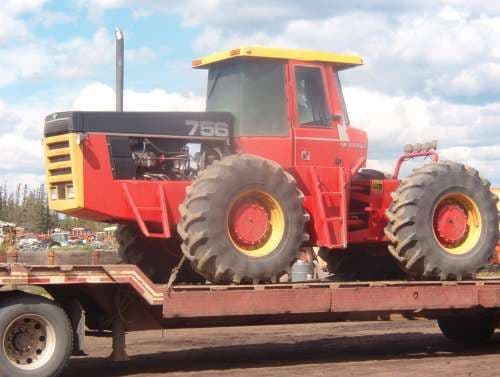

Versatile 756

Last Updated: June 2024

Overview

The Versatile 756 is a robust, four-wheel drive tractor which stands out for its articulated power steering and a mighty Cummins turbocharged diesel engine, which houses 6 cylinders and offers 505 ci of displacement, contributing to its 190 horsepower output. Well-suited for demanding farm tasks that require reliability and power, this tractor comes with a 15-speed forward and 5-speed reverse transmission that enhances its operational flexibility. With a solid chassis and a 4x4 articulated 4WD drive system, the Versatile 756 can navigate challenging terrain with ease. The liquid-cooling system ensures efficiency and longevity of the engine. Although complete tire dimensions are not specified, it is fitted with 38-inch agriculture tires both front and rear, indicative of its primary application in various soil conditions. With a starting weight of 21,000 lbs and a category 3 hitch system on the rear, it is prepared to handle substantial implements and loads.
Show more...

Key Specifications

Category: Utility, Four-Wheel Drive

Power Output: 190

Drive Type: 4WD

Operating Weight: 21,000

Fuel Type: Diesel

Versatile 756 vs. Similar Tractors

Power Output
Excellent
Greater than 92% of similar tractors.
Operating Weight
Poor
Greater than 6% of similar tractors.

Technical Specifications

Engine

Manufacturer
Cummins
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
505
Bore (in)
4.49
Stroke (in)
5.32
Rated RPM
-
Power Output (hp)
190

Transmission

Type
-
Forward Gears
15
Reverse Gears
5
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
21,000

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 articulated 4WD
Drive Type
4WD
Steering Type
Articulated power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
38
Tire Type
Ag (Agriculture)
Manufacture - End Year
-
Hitch Type
III
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Closed center
