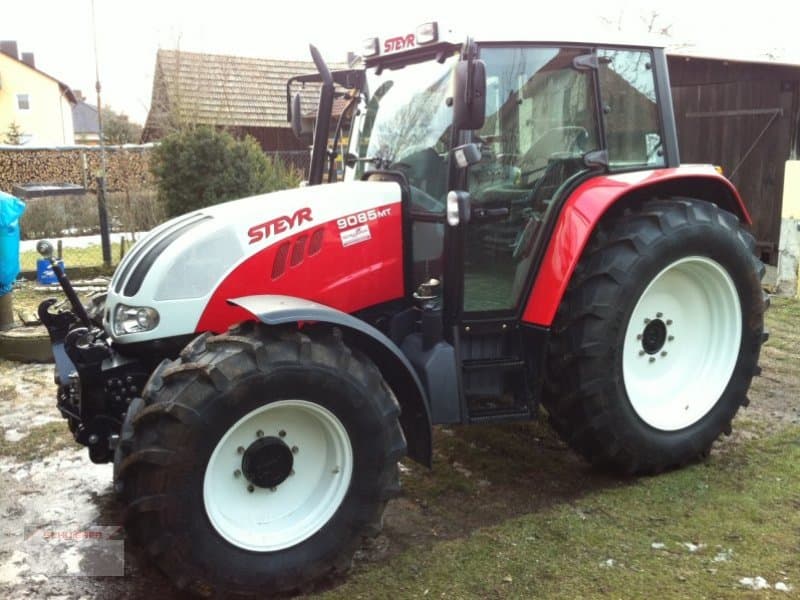

Steyr 9085 MT

Last Updated: June 2024

Overview

The Steyr 9085 MT is a tractor with a turbocharged and intercooled engine comprising 4 cylinders with a displacement of 268.4 cubic inches, capable of delivering a net power output of 85.5 horsepower at 2300 rpm. The steering and drive types of this particular Steyr model remain unspecified, but the tractor is equipped with a STEYR Power-2 transmission, featuring 16 forward gears and 8 reverse gears, making it versatile in a variety of operating conditions. The tire configuration includes radial tires with front tires measuring 14.9 R24 and rear tires measuring 18.4 R34, supporting a narrative of this tractor potentially being used in diverse agricultural settings which require good traction and stability. As the hydraulic system is responsible for various functions on a tractor, this model comes with a pump flow capacity of 13.3 gallons per minute and a relief valve pressure of 2538.2 psi, which indicates it has a capacity for heavy-duty applications. Details about the tractor's overall dimensions suggest that it's a medium-sized tractor with a total length of 166.8 inches, a width of 86.4 inches, and a height of 108 inches. Additional operational and functional specifications such as the hitch type, PTO speeds, operating weight, and braking system are not provided in the data and, therefore, remain unspecified.
Show more...

Key Specifications

Power Output: 85.5

Transmission: STEYR Power-2

Technical Specifications

Engine

Manufacturer
-
Model
-
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
-
Induction Type
Turbocharged, intercooled
Cylinders
4
Displacement (ci)
268.4
Bore (in)
-
Stroke (in)
-
Rated RPM
2300
Power Output (hp)
85.5

Transmission

Type
STEYR Power-2
Forward Gears
16
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
166.8
Width (in)
86.4
Height (in)
108
Operating Weight (lb)
-

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
24 (size: 14.9 R24)
Front Tire Width (in)
Unknown (size: 14.9 R24)
Rear Tire Diameter (in)
34 (size: 18.4 R34)
Rear Tire Width (in)
Unknown (size: 18.4 R34)
Front/Rear Rim Diameter (in)
-
Tire Type
R (radial)
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
