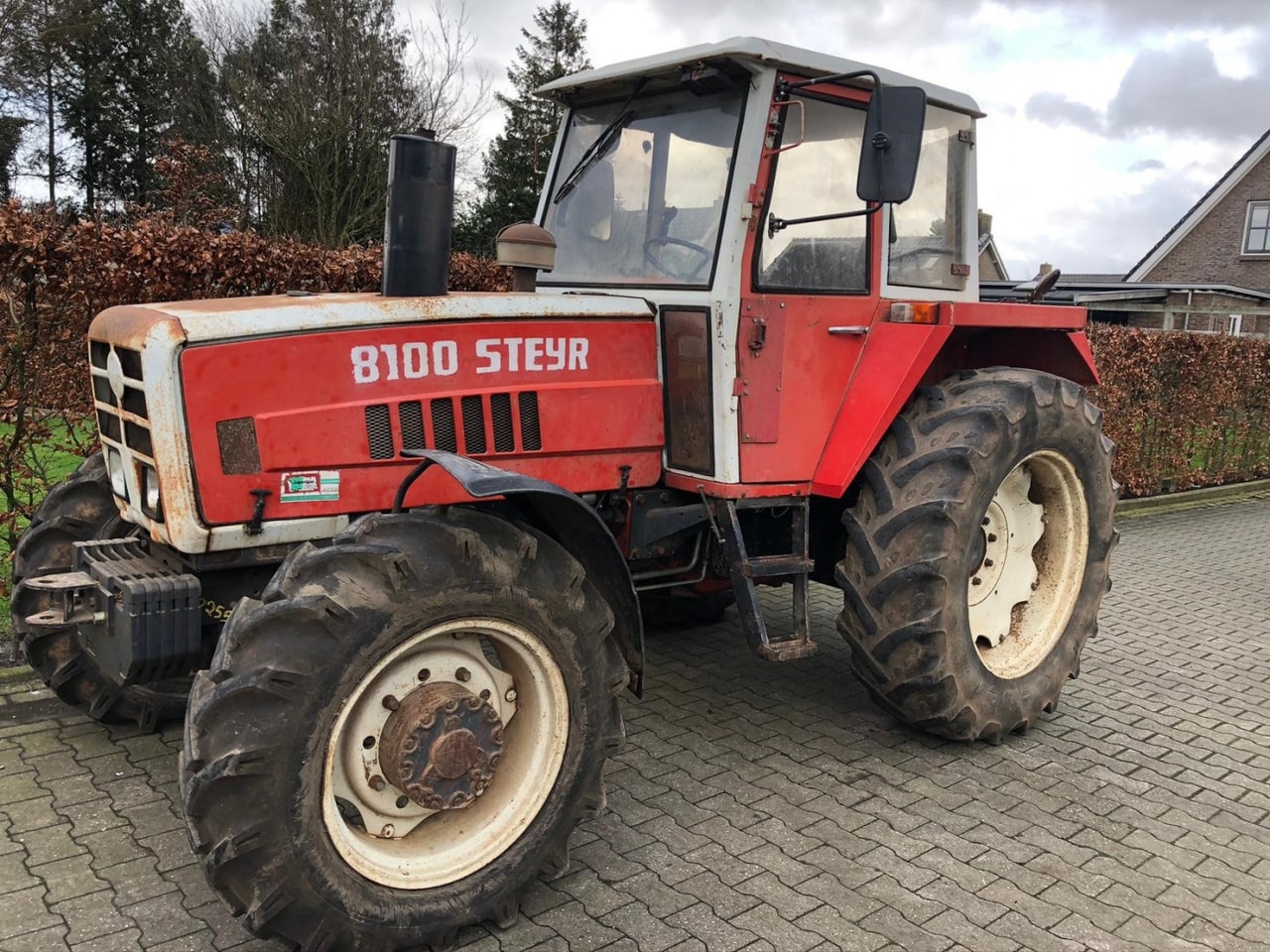

Steyr 8100

Last Updated: June 2024

Overview

The Steyr 8100 tractor is a utility vehicle designed with a 2-wheel drive (2WD) chassis, offering a simplistic yet effective solution for a variety of agricultural tasks. It is powered by a Steyr WD 611.40 diesel engine with a naturally aspirated induction system and six cylinders, providing a displacement of 316.2 cubic inches and delivering 85 horsepower at a rated RPM of 2300. Featuring a hydrostatic power steering system and a synchro transmission, the 8100 model provides a balance between efficiency and control. The specific number of forward and reverse gears is uncertain; however, the presence of synchro transmission suggests an ease of shifting gears which is beneficial during field operations. The tractor has a well-sized wheelbase of 100 inches, enabling stability during tasks. Weighing in at 9327 pounds and measured at a length of 165.4 inches and a height of 101.2 inches, this model is robust and built for the demands of daily farm work. The tractor rides on agricultural tires, but additional details about the tire dimensions are not available. With its strong engine performance and durable build, the Steyr 8100 plays a significant role in the daily grind of agricultural labor.
Show more...

Key Specifications

Category: Utility

Power Output: 85

Transmission: Synchro

Drive Type: 2WD

Operating Weight: 9327

Fuel Type: Diesel

Steyr 8100 vs. Similar Tractors

Power Output
Above Average
Greater than 74% of similar tractors.
Operating Weight
Average
Greater than 61% of similar tractors.

Technical Specifications

Engine

Manufacturer
Steyr
Model
WD 611.40
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
6
Displacement (ci)
316.2
Bore (in)
3.94
Stroke (in)
4.33
Rated RPM
2300
Power Output (hp)
85

Transmission

Type
Synchro
Forward Gears
-
Reverse Gears
-
Total Gears
-

Dimensions

Length (in)
165.4
Width (in)
-
Height (in)
101.2
Operating Weight (lb)
9327

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2
Drive Type
2WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
