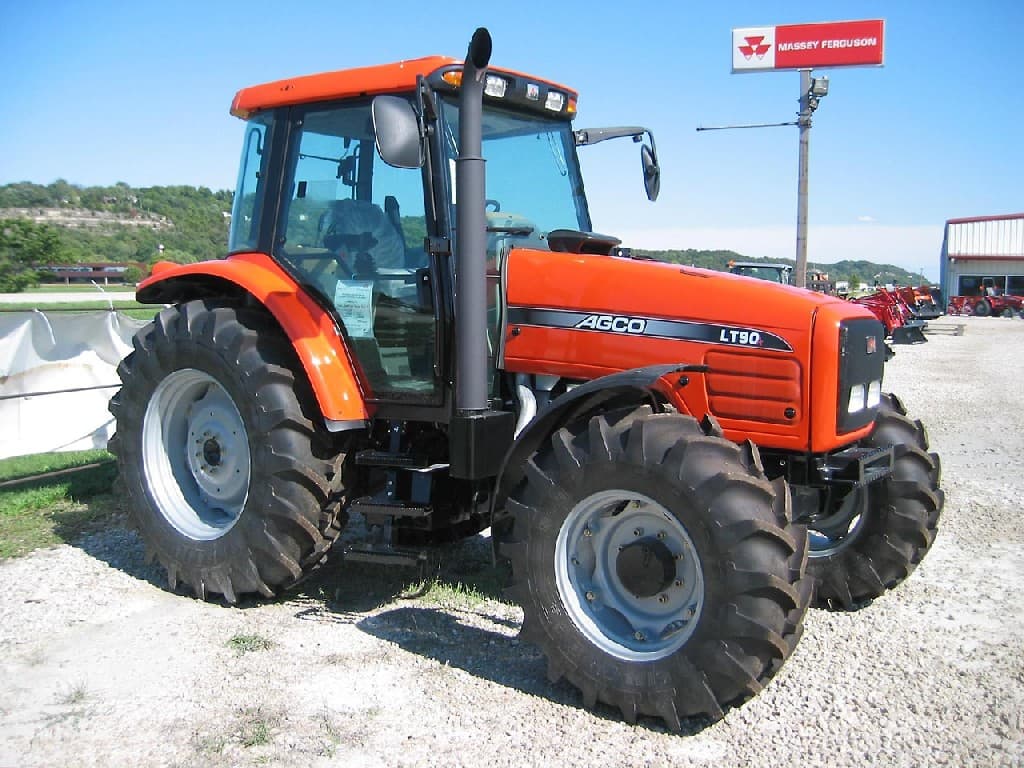

Agco LT90

Last Updated: June 2024

Overview

The Agco LT90 is a utility tractor known for its balanced performance and adaptability in various agricultural tasks. Equipped with a powerful engine that delivers an approximate 85 PTO horsepower and operates at a rated RPM of 2200, it is effective for both fieldwork and other farming applications. The inclusion of a wastegated turbo signifies enhanced engine efficiency and perhaps a boost in power output under demanding conditions. It has an advanced power/mechanical transmission system with an ample range of 16 forward and reverse gears, enabling farmers to select the optimal speed for different tasks. The tractor comes with a Category II three-point hitch, capable of handling a lift capacity of 7710 lbs, and supports a variety of implements via two remote control valves. With a sizeable fuel capacity of 39 gallons, it can operate for extended periods without refueling, increasing productivity on the farm. Despite some missing information regarding dimensions and specific engine details, the overall capabilities of the Agco LT90 make it a resilient and efficient choice for modern farming needs.
Show more...

Key Specifications

Category: Utility

Power Output: 85 (PTO Power)

Transmission: Power/Mechanical

Operating Weight: 8980

Fuel Type: Diesel

Lift Capacity: 7710 lbs @ 24 inches

Agco LT90 vs. Similar Tractors

Power Output
Above Average
Greater than 74% of similar tractors.
Hitch Capacity
Excellent
Greater than 96% of similar tractors.
Operating Weight
Average
Greater than 60% of similar tractors.

Technical Specifications

Engine

Manufacturer
-
Model
-
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Wastegated Turbo
Cylinders
4
Displacement (ci)
274.7
Bore (in)
-
Stroke (in)
-
Rated RPM
2200
Power Output (hp)
85 (PTO Power)

Transmission

Type
Power/Mechanical
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
165.6
Width (in)
-
Height (in)
110.4 (from Top of Cab, incorrect conversion from 9.2 feet. Should be 9.2 feet * 12 inches/foot = 110.4 inches)
Operating Weight (lb)
8980

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Three-Point Hitch
Hitch Category
Category II
Hitch Position
Rear
Hitch Capacity (lb)
7710 lbs @ 24 inches
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
