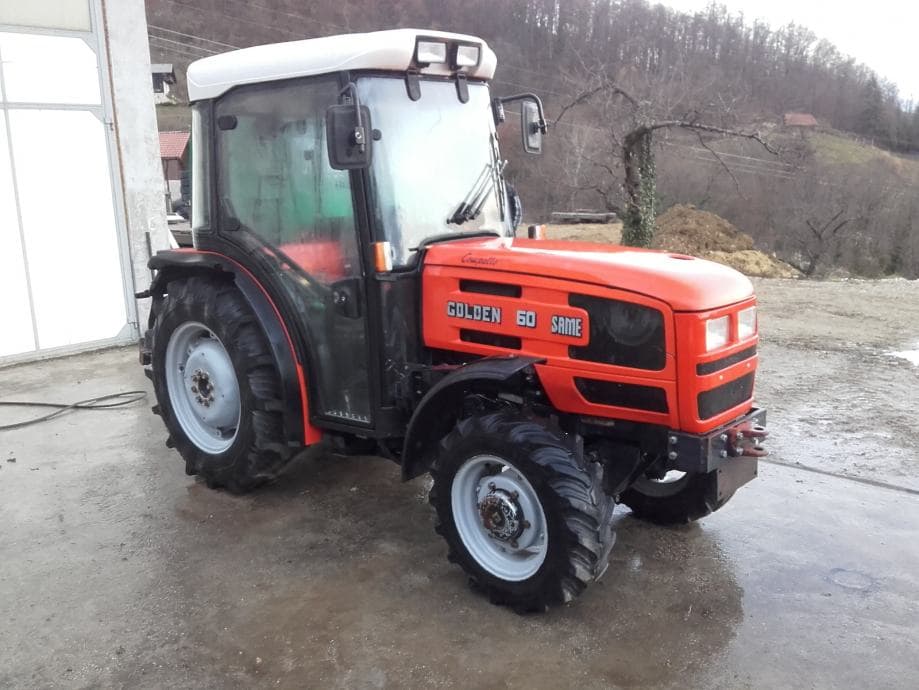

SAME Golden 60

Last Updated: June 2024

Overview

The SAME Golden 60 is an orchard/vineyard tractor that is best suited for specialized agricultural tasks due to its relatively narrow width and orchard/vineyard category designation. It features a 2-wheel drive (2WD) chassis and is equipped with power steering for easier maneuverability. With a synchronized 16-speed transmission, it allows for significant flexibility in operation. It's powered by a SAME 1000.3A three-cylinder diesel engine that is air-cooled with a displacement of 183.1 cubic inches, achieving 59 horsepower at 2350 RPM. The engine provides a torque of 151.9 lb-ft at 1450 RPM, making it competent for a range of tasks. The tractor's operating weight varies from 4409 pounds with a 2WD ROPS (Roll-Over Protection Structure) to 5291 pounds with a 4WD Cab, indicating the availability of different configurations to meet various operational needs. The overall dimensions afford it the capability to operate in tighter spaces which is often required in orchard and vineyard environments.
Show more...

Key Specifications

Category: Agricultural, Orchard/Vineyard

Power Output: 59

Transmission: Synchronized

Drive Type: 2WD

Operating Weight: 4409 (2WD ROPS) - 5291 (4WD Cab)

Fuel Type: Diesel

SAME Golden 60 vs. Similar Tractors

Power Output
Average
Greater than 30% of similar tractors.
Operating Weight
Excellent
Greater than 95% of similar tractors.

Technical Specifications

Engine

Manufacturer
SAME
Model
1000.3A
Cooling Type
Air-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
3
Displacement (ci)
183.1
Bore (in)
4.13
Stroke (in)
4.56
Rated RPM
2350
Power Output (hp)
59

Transmission

Type
Synchronized
Forward Gears
16
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
116.9
Width (in)
47.2
Height (in)
-
Operating Weight (lb)
4409 (2WD ROPS) - 5291 (4WD Cab)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
ROPS / Cab (optional)
Starter Type
Electric Starter (assuming based on standard tractor features)
Brake Type
-
Hydraulic System Type
-
