SAME Golden 65

Last Updated: June 2024

Overview

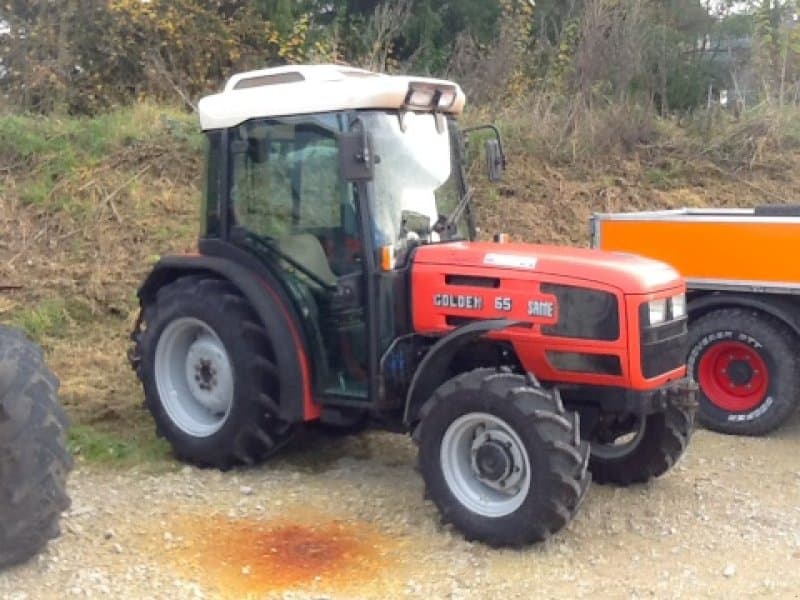

The SAME Golden 65 is an orchard and vineyard tractor known for its versatility and suitability for work in tight spaces. Equipped with a SAME 1000.3AT turbocharged diesel engine, it offers a displacement of 183.1 cubic inches and a power output of 65.7 horsepower at a rated 2350 RPM. Its chassis is a 4x2 2WD configuration with power steering for easy maneuverability. The tractor has a synchronized transmission with an extensive gear selection of 45 forward and 45 reverse gears, facilitated by the Agroshift system, providing flexibility for various agriculture tasks. The air-cooled engine minimizes overheating risks during long working hours. The standard operational weight is 5291 pounds when fully equipped, and the tractor measures 116.9 inches in length and 47.2 inches in width, making it well-suited for navigation between rows in orchards. The tractor’s utility is enhanced with a Category 3 three-point hitch positioned at the rear.
Show more...

Key Specifications

Category: Agricultural, Orchard/Vineyard

Power Output: 65.7

Transmission: Synchronized

Drive Type: 2WD

Operating Weight: 5291

Fuel Type: Diesel

SAME Golden 65 vs. Similar Tractors

Power Output
Average
Greater than 38% of similar tractors.
Operating Weight
Average
Greater than 31% of similar tractors.

Technical Specifications

Engine

Manufacturer
SAME
Model
1000.3AT
Cooling Type
Air-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
3
Displacement (ci)
183.1
Bore (in)
4.13
Stroke (in)
4.56
Rated RPM
2350
Power Output (hp)
65.7

Transmission

Type
Synchronized
Forward Gears
45
Reverse Gears
45
Total Gears
-

Dimensions

Length (in)
116.9
Width (in)
47.2
Height (in)
-
Operating Weight (lb)
5291

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
12
Front Tire Width (in)
-
Rear Tire Diameter (in)
24
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
ROPS and Cab (assuming both types due to weights provided)
Starter Type
-
Brake Type
-
Hydraulic System Type
-
