SAME Vigneron 62

Last Updated: June 2024

Overview

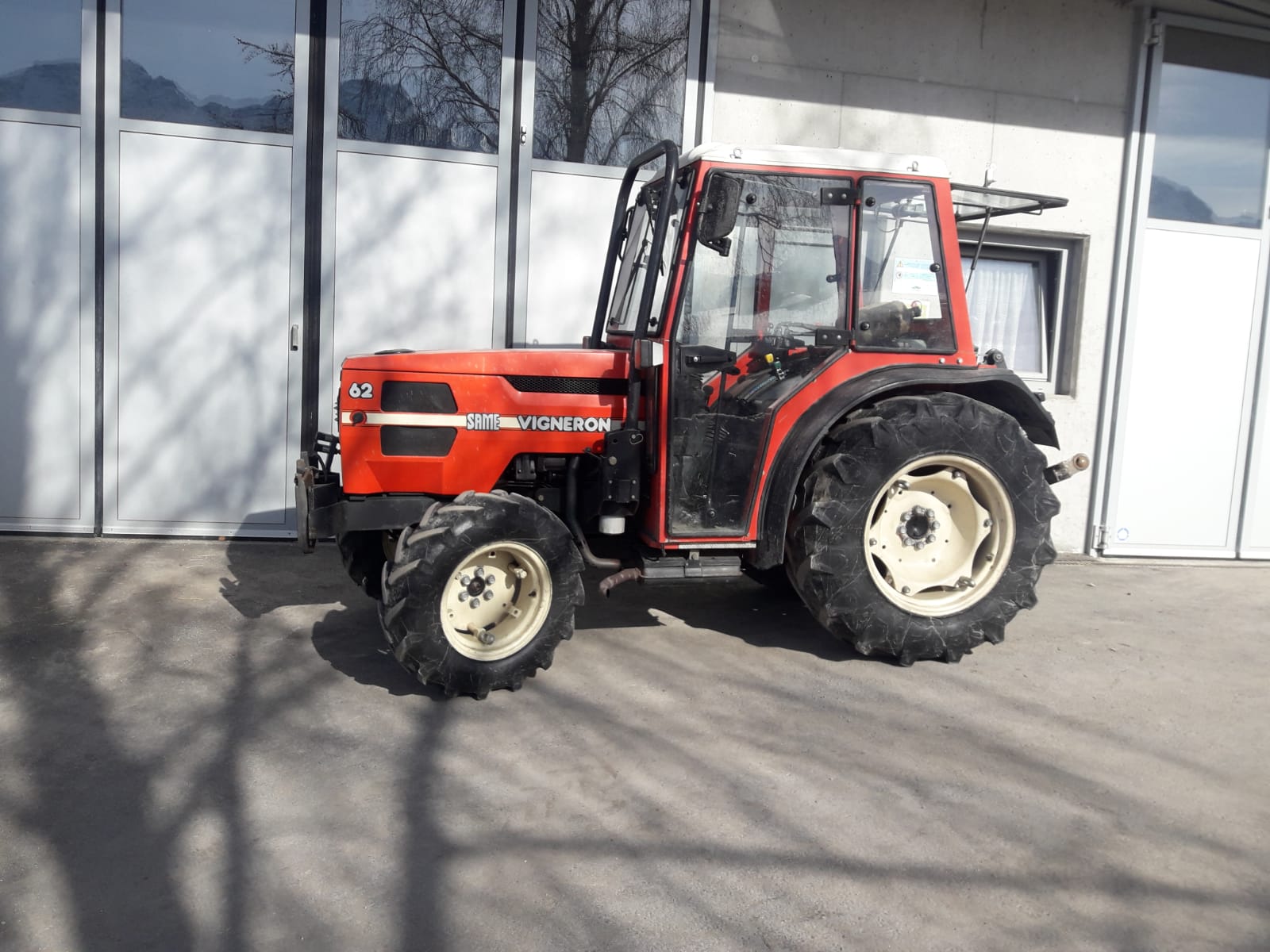

The SAME Vigneron 62 is an orchard/vineyard tractor known for its agility and compact design, making it suitable for working within the confines of vineyards and orchards. Featuring a 4x4 MFWD 4WD chassis and power steering, it provides improved maneuverability and traction over various terrains. The tractor is powered by a SAME 100.3A 3-cylinder air-cooled diesel engine capable of delivering 60 hp with a displacement of 183 cubic inches. The engine runs at a rated RPM of 2500 and implements a partially synchronized transmission system with 12 forward and reverse gears, complemented by a creeper gear option for precise speed control during specialized tasks. The Vigneron 62 has a wheelbase of 74.5 inches, a length of 129.1 inches, and a width of 46 inches. The operating weight of the tractor is 4300 lbs, and it features standard agricultural tires. The tractor offers a three-point hitch (assumed from 'Rear Type: II/I') at the rear, intended for attaching various implements required for vineyard or orchard work.
Show more...

Key Specifications

Category: Agricultural, Orchard/Vineyard

Power Output: 60

Transmission: Partially synchronized

Drive Type: 4WD

Operating Weight: 4300

Fuel Type: Diesel

SAME Vigneron 62 vs. Similar Tractors

Power Output
Average
Greater than 33% of similar tractors.
Operating Weight
Below Average
Greater than 22% of similar tractors.

Technical Specifications

Engine

Manufacturer
SAME
Model
100.3A
Cooling Type
Air-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
3
Displacement (ci)
183
Bore (in)
4.13
Stroke (in)
4.54
Rated RPM
2500
Power Output (hp)
60

Transmission

Type
Partially synchronized
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
129.1
Width (in)
46
Height (in)
50 (Assuming height is consistent, as steering wheel and hood heights are the same)
Operating Weight (lb)
4300

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
Three-Point Hitch (Assumed from 'Rear Type: II/I')
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
