New Holland TM175

Last Updated: July 2024

Overview

The New Holland TM175 is a utility tractor powered by a 6-cylinder, turbocharged and air-to-air intercooled diesel engine with a displacement of 456 cubic inches. It produces a maximum power output of 195.7 hp at 2200 rpm with a bore of 4.4 inches and a stroke of 5 inches. The engine uses No. 2 Diesel fuel with a specific gravity of 0.843 and requires SAE 10W30 oil with API CG-4 classification. The Power Command powershift transmission offers 19 forward and 6 reverse gears. Coolant temperature is controlled by a thermostat and variable speed fan. The tractor has radial tires, with rear tires sized 650/65R42 at 12 psi and front tires 540/65R30 at 12 psi. It has an operating weight of 15,960 lbs and a height of 114 inches. Additional features include a 12-volt starting system, various filters, and a hydraulic system with a pump flow capacity of 31.7 gal/min and relief valve pressure of 2,750 psi.
Show more...

Key Specifications

Category: Utility

Power Output: 195.7

Transmission: Power Command powershift

Operating Weight: 15960

Lift Capacity: 17581

Image Gallery

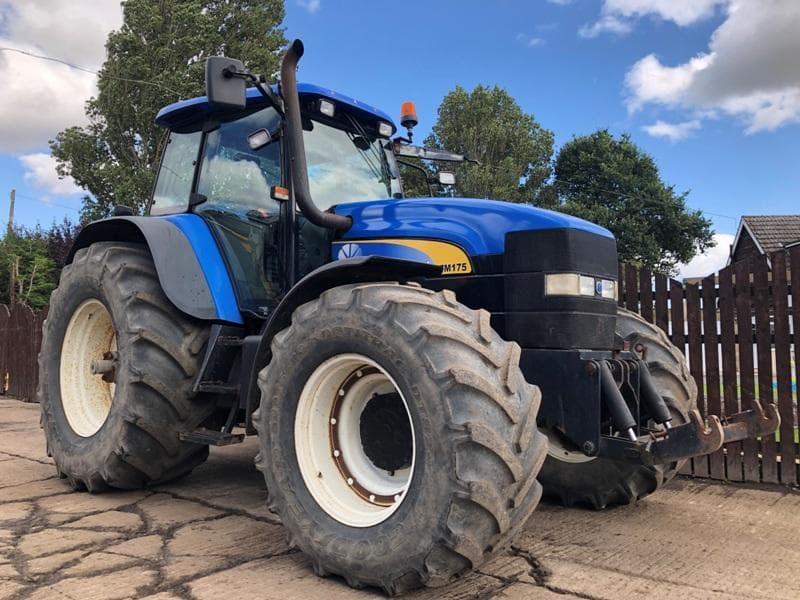

New Holland TM175 Tractor New Holland TM175 Tractor

New Holland TM175 vs. Similar Tractors

Power Output
Excellent
Greater than 92% of similar tractors.
Hitch Capacity
Excellent
Greater than 90% of similar tractors.
Operating Weight
Average
Greater than 67% of similar tractors.

Technical Specifications

Engine

Manufacturer
-
Model
-
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
-
Induction Type
Turbocharged, air-to-air intercooled
Cylinders
6
Displacement (ci)
456
Bore (in)
-
Stroke (in)
-
Rated RPM
2200
Power Output (hp)
195.7

Transmission

Type
Power Command powershift
Forward Gears
19
Reverse Gears
6
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
114
Operating Weight (lb)
15960

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
27.6
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Radial
Manufacture - End Year
2007
Hitch Type
Cat II/IIIN
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
17581
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
Open Center

Test Results

Nebraska Tractor Test Laboratory - Test Date: September 2003 to April 2004

Maximum Power and Fuel Consumption

  • Maximum Power: 160.8 HP (119.9 kW) at 1799 rpm
  • Fuel Consumption at Maximum Power: 9.03 Gal/hr (34.18 l/h) with a fuel efficiency of 0.394 lb/hp.hr (0.240 kg/kW.h)
  • Standard Power Take-off Speed: 154.2 HP (115.0 kW) at 2154 rpm with a fuel consumption of 9.44 Gal/hr (35.73 l/h)

Drawbar Performance

  • Power at Rated Engine Speed (9th Gear): 123.6 HP (92.2 kW) with a drawbar pull of 9600 lbs (42.7 kN) and a speed of 4.83 mph (7.77 km/h)
  • Fuel Consumption at Rated Speed (9th Gear): 0.539 lb/hp.hr (0.328 kg/kW.h) with a fuel efficiency of 13.03 Hp.hr/gal (2.57 kW.h/l)
  • Maximum Power at Reduced Engine Speed (10th Gear): 97.2 HP (72.5 kW) with a drawbar pull of 7200 lbs (32.0 kN) and a speed of 5.06 mph (8.15 km/h) with a fuel efficiency of 14.01 Hp.hr/gal (2.76 kW.h/l)

Torque and Engine Performance

  • Maximum Torque: 512.1 lb.-ft. (694.3 Nm) at 1500 rpm
  • Torque Rise: 41.8% with power increase at 1799 engine rpm of 30%

Hydraulic Performance

  • Maximum Force Exerted Through Whole Range: 11305 lbs (50.3 kN)
  • Pump Delivery Rate: 31.2 GPM (118.0 l/min) at maximum hydraulic power
  • Hydraulic Power: 43.4 HP (32.3 kW) at delivery pressure of 2755 psi (190 bar)

Recommended Citation Format



NTTL.(2003).Nebraska Summary S436 New Holland TM175 Diesel. Lincoln, NE:Nebraska Tractor Test Laboratory. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/2845
