CaseIH 7140

Last Updated: June 2024

Overview

The CaseIH 7140 is a 2WD or 4WD row-crop tractor from the Magnum series. This tractor was manufactured by CaseIH in Racine, Wisconsin, USA from 1987 to 1993. The tractor is powered by a turbocharged intercooled diesel engine, with 6 vertical inline cylinders, and an engine displacement of 504.5 ci. It has three different types of transmission options, with a total of 20 gears (18 forward and 2 reverse) available. Equipped with hydrostatic power steering and differential hydraulic wet disc brakes. The tractor is also fitted with a Silent Guardian II Cab with air-conditioning for better operator comfort.

Key Specifications

Category: Row Crop

Power Output: 195

Transmission: full power shift, powershift with creeper

Drive Type: 2WD or 4WD

Operating Weight: 17,850

Fuel Type: diesel

Image Gallery

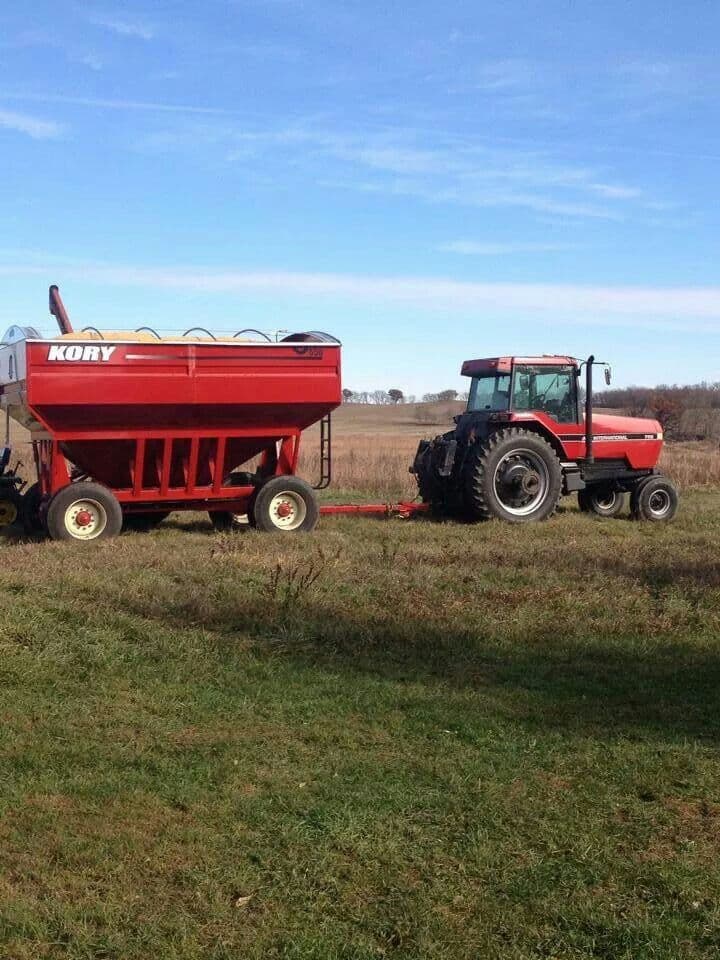

CaseIH 7140 Tractor

CaseIH 7140 vs. Similar Tractors

Power Output

Above Average

Greater than 71% of similar tractors.

Hitch Capacity

Below Average

Greater than 15% of similar tractors.

Operating Weight

Below Average

Greater than 11% of similar tractors.

Technical Specifications

Engine

Manufacturer: CDC
Model: -
Cooling Type: liquid-cooled
Cylinder Orientation: vertical inline
Valve Configuration: 12-valve
Fuel Type: diesel
Induction Type: turbocharged intercooled
Cylinders: 6
Displacement (ci): 504.5
Bore (in): 4.488
Stroke (in): 5.315
Rated RPM: 2200
Power Output (hp): 195

Transmission

Type: full power shift, powershift with creeper
Forward Gears: 18
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): 191.4 (2WD)
Width (in): Between 60 to 95 inches
Height (in): 119.3 (2WD)
Operating Weight (lb): 17,850

Power Take-Off (PTO)

PTO Type: Independent with wet disc clutch
PTO Speed 1 (rpm): 1000
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 (2WD) or 4x4 (MFWD 4WD)
Drive Type: 2WD or 4WD
Steering Type: hydrostatic power
Coolant Capacity (qts): 31
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: 1993
Hitch Type: -
Hitch Category: III/IIIN
Hitch Position: -
Hitch Capacity (lb): 10,200 lbs
Operator Station Type: Silent Guardian II Cab with air-conditioning
Starter Type: Electric
Brake Type: Differential hydraulic wet disc
Hydraulic System Type: closed center pressure flow compensated (PFC)
