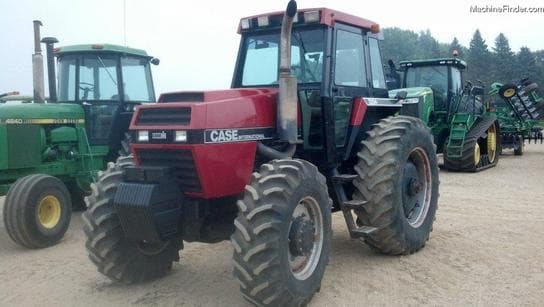

CaseIH 3294

Last Updated: September 2024

Overview

The CaseIH 3294 is a powerful row crop tractor built for serious farming. It has a strong 4-wheel drive system and a sturdy 4x4 chassis, making it great for tough jobs. The tractor is powered by a big 6-cylinder diesel engine made by Case. This engine is turbocharged and liquid-cooled, giving it lots of power. It can produce 197 horsepower, which is above average for tractors like this.

The 3294 has a power shift transmission with 12 forward gears and 3 reverse gears. This makes it easy to change speeds while working. The tractor has power steering, making it easier to control. It's a heavy machine, weighing 18,000 pounds, which helps it grip the ground well. The tractor is 96 inches wide and has special ag tires for farm work. It also has a closed center hydraulic system, which is good for running farm tools. With its electric starter and 44-quart coolant capacity, this CaseIH tractor is ready for long days in the field.
Show more...

Key Specifications

Category: Row Crop

Power Output: 197 hp (146.9 kW)

Transmission: Power Shift

Drive Type: 4WD

Operating Weight: 18000 lb (8165 kg)

Fuel Type: Diesel

CaseIH 3294 vs. Similar Tractors

Power Output

The Power Output for the CaseIH 3294 is Above Average. It is greater than 75% of similar Row Crop tractors in our database.

Horsepower distribution of Row Crop tractors

(across 1.1K+ tractors in our database)

Operating Weight

The Operating Weight for the CaseIH 3294 is Above Average. It is greater than 78% of similar Row Crop tractors in our database.

Operating weight distribution of Row Crop tractors

(across 1.3K+ tractors in our database)

Engine Displacement

The Engine Displacement for the CaseIH 3294 is Above Average. It is greater than 85% of similar Row Crop tractors in our database.

Engine displacement distribution of Row Crop tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the CaseIH 3294 is Below Average. It is greater than 28% of similar Row Crop tractors in our database.

Engine rated RPM distribution of Row Crop tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Case
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement
504 ci (8.3 L)
Bore
4.62 in (117.5 mm)
Stroke
5.00 in (127.0 mm)
Rated RPM
2100
Power Output
197 hp (146.9 kW)

Transmission

Type
Power Shift
Forward Gears
12
Reverse Gears
3

Drivetrain

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
