New Holland 7840

Last Updated: June 2024

Overview

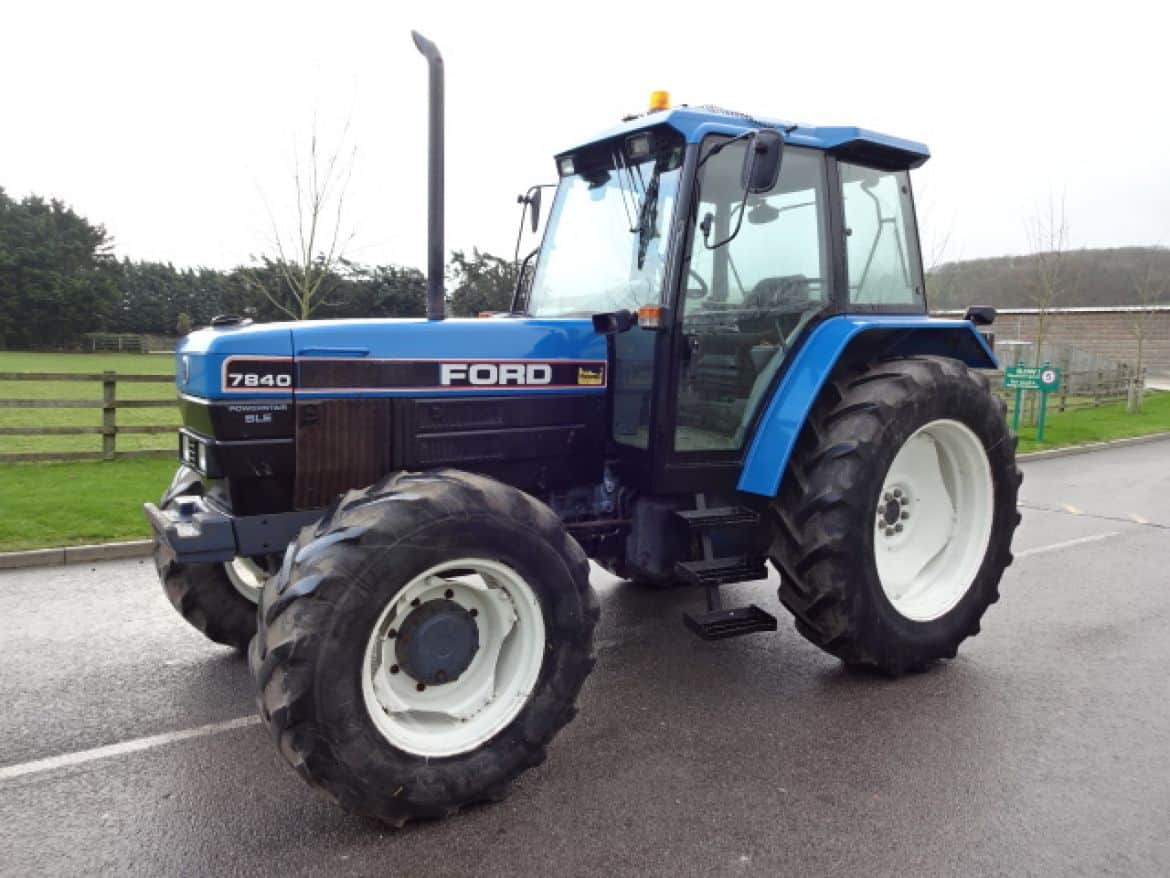

The New Holland 7840 is a versatile row-crop tractor that was part of the PowerStar 40 series, manufactured by New Holland in Basildon, England from 1996 to 1998. It's powered by a robust Ford Genesis 6.6 L six-cylinder diesel engine, capable of delivering up to 90 HP. The 7840 model featured a range of transmission options including constant mesh, power shift, and synchronized systems, offering varying forward and reverse gears. The tractor could be equipped with either a two-post foldable ROPS or an optional Comfort Command Cab for enhanced operating comfort. It boasted a hydraulic open center or load sensing system, depending on the variant, and came with an optional electronic lower-link sensing for the hitch system. The 7840's design catered to efficient operations with ease of control, thanks to its hydrostatic power steering and a choice of mechanical or hydraulic wet disc brakes. Optimized for a range of agricultural tasks, the tractor was equipped with independent PTO and was capable of lifting significant weight with its Cat II hitch system.
Show more...

Key Specifications

Category: Row Crop

Power Output: 90

Transmission: Constant mesh / Two-speed power shift / Synchronized / Four-speed power shift

Operating Weight: 8076 to 10274

Fuel Type: Diesel

Lift Capacity: SL: 6210 lbs, SLE: 6564 lbs

New Holland 7840 vs. Similar Tractors

Power Output
Below Average
Greater than 16% of similar tractors.
Hitch Capacity
Average
Greater than 43% of similar tractors.
Operating Weight
Excellent
Greater than 90% of similar tractors.

Technical Specifications

Engine

Manufacturer
Ford
Model
Genesis
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural aspirated
Cylinders
6
Displacement (ci)
401.8
Bore (in)
4.41
Stroke (in)
4.41
Rated RPM
2100
Power Output (hp)
90

Transmission

Type
Constant mesh / Two-speed power shift / Synchronized / Four-speed power shift
Forward Gears
8/16/2012
Reverse Gears
2/4/2012
Total Gears
-

Dimensions

Length (in)
176
Width (in)
82.7
Height (in)
109.8 (cab)
Operating Weight (lb)
8076 to 10274

Power Take-Off (PTO)

PTO Type
Independent
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
1000
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD / 4x4 MFWD 4WD
Drive Type
-
Steering Type
Hydrostatic power
Coolant Capacity (qts)
21.1
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
1998
Hitch Type
-
Hitch Category
II
Hitch Position
-
Hitch Capacity (lb)
SL: 6210 lbs, SLE: 6564 lbs
Operator Station Type
Two-post foldable ROPS / Comfort Command Cab (optional)
Starter Type
Electric
Brake Type
Mechanical (S) / Hydraulic wet disc (SL/SLE)
Hydraulic System Type
Open center (S/SL) / Closed center load sensing (SLE)
