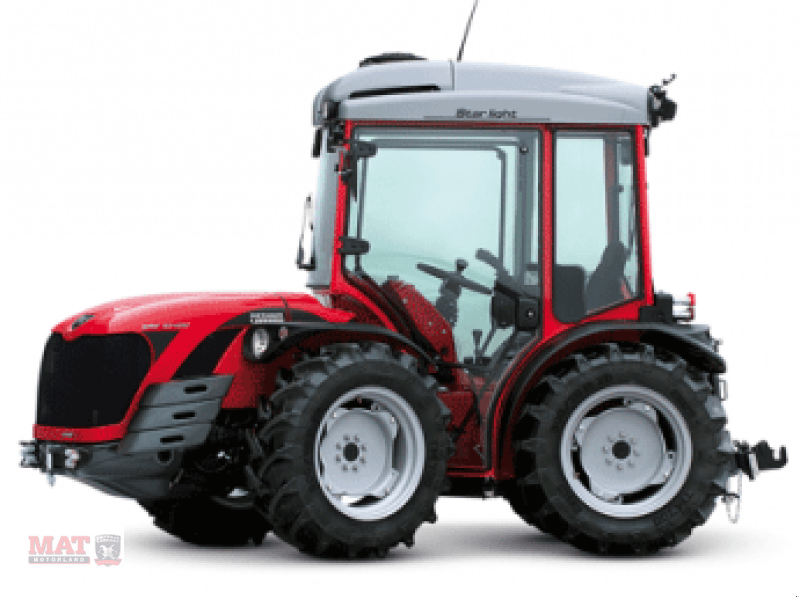

Antonio Carraro SRX 9800

Last Updated: September 2024

Overview

The Antonio Carraro SRX 9800 is a powerful orchard and vineyard tractor designed for agricultural use. It features a 4x4 articulated chassis with four-wheel drive, making it great for working in tight spaces. The tractor is equipped with a Yanmar diesel engine that produces 87 hp, which is above average for its class. This engine is turbocharged and intercooled, with 16 valves and 4 cylinders, providing strong performance for various farming tasks.

This compact tractor measures 137.8 inches long, 41.7 inches wide, and 84.2 inches tall, making it ideal for navigating through orchards and vineyards. It has a operating weight of 4,850 lb, which is on the lighter side for tractors. The SRX 9800 comes with a manual transmission that offers 16 forward and 16 reverse gears, giving operators plenty of options for different working speeds. It also features hydraulic power steering for easy maneuvering and a Category II/I rear hitch for attaching various implements. The tractor is equipped with agricultural tires and an electric starter for convenience. Farmers can choose between a cab or ROPS (Roll-Over Protective Structure) for the operator station, depending on their needs and preferences.
Show more...

Key Specifications

Category: Orchard/Vineyard

Power Output: 87 hp (64.9 kW)

Transmission: Manual

Drive Type: 4WD

Operating Weight: 4850 lb (2200 kg)

Fuel Type: Diesel

Antonio Carraro SRX 9800 vs. Similar Tractors

Power Output

The Power Output for the Antonio Carraro SRX 9800 is Average. It is greater than 64% of similar Orchard/Vineyard tractors in our database.

Horsepower distribution of Orchard/Vineyard tractors

(across 0.3K+ tractors in our database)

Operating Weight

The Operating Weight for the Antonio Carraro SRX 9800 is Average. It is greater than 33% of similar Orchard/Vineyard tractors in our database.

Operating weight distribution of Orchard/Vineyard tractors

(across 0.3K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Antonio Carraro SRX 9800 is Average. It is greater than 44% of similar Orchard/Vineyard tractors in our database.

Engine displacement distribution of Orchard/Vineyard tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Antonio Carraro SRX 9800 is Above Average. It is greater than 83% of similar Orchard/Vineyard tractors in our database.

Engine rated RPM distribution of Orchard/Vineyard tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Yanmar
Cooling Type
Liquid-Cooled
Valve Configuration
16-Valve
Fuel Type
Diesel
Induction Type
Turbocharged Intercooled
Cylinders
4
Displacement
202 ci (3.3 L)
Bore
3.86 in (98.0 mm)
Stroke
4.33 in (110.0 mm)
Rated RPM
2500
Power Output
87 hp (64.9 kW)

Transmission

Type
Manual

Drivetrain

Chassis
4x4 Articulated 4WD
Drive Type
4WD
Steering Type
Hydraulic Power
