New Holland TS100

Last Updated: July 2024

Overview

The New Holland TS100 is a versatile row-crop tractor powered by a four-cylinder, turbocharged, 5.0 L New Holland Genesis diesel engine. Independent test results show a maximum power output of 88.5 HP at 2050 RPM, with detailed performance figures for fuel consumption, hydraulic system capabilities, drawbar performance, and torque characteristics. The tractor is available in both 2WD and 4WD versions, offering operators a variety of transmission options with up to 24 forward and reverse gears. Designed for diverse agricultural tasks, it features hydrostatic power steering, hydraulic wet disc brakes, and a rear hitch with lifting capabilities tested up to 8,240 lbs with two assist rams. This model also offers the flexibility of ROPS or cab options and comes with a substantial fuel tank capacity.
Show more...

Key Specifications

Category: Row Crop

Power Output: 88.5

Transmission: Synchro Command, Dual Command, ElectroShift (unsynchronized gear, two-speed power shift)

Drive Type: 4x2 2WD or 4x4 MFWD 4WD

Operating Weight: 7275 to 9855

Fuel Type: Diesel

Image Gallery

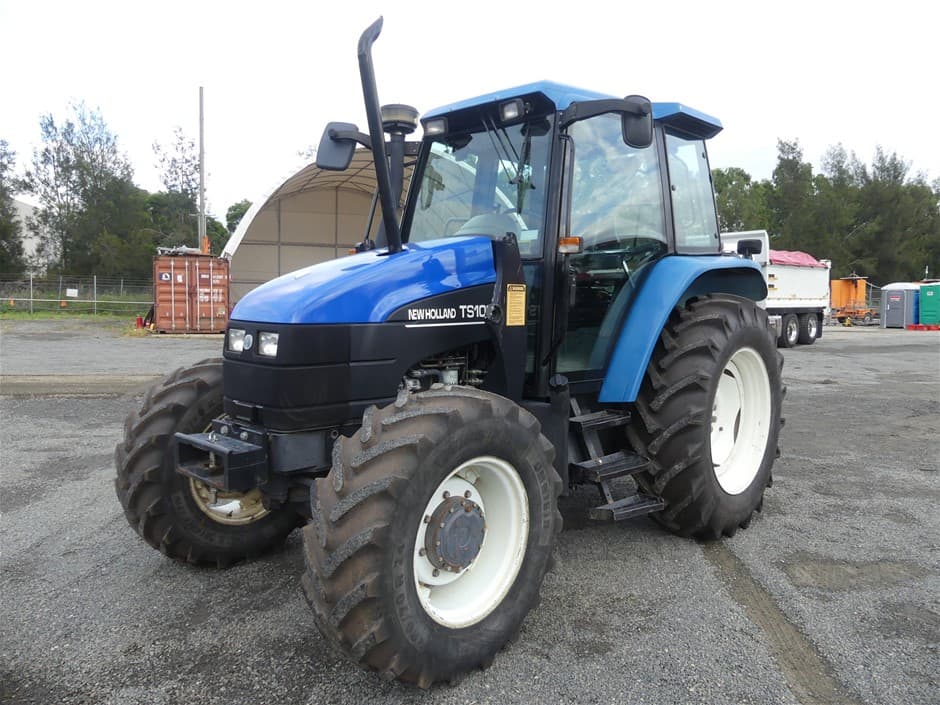

New Holland TS100 Tractor New Holland TS100 Tractor New Holland TS100 Tractor New Holland TS100 Tractor New Holland TS100 Tractor New Holland TS100 Tractor New Holland TS100 Tractor New Holland TS100 Tractor New Holland TS100 Tractor New Holland TS100 Tractor

New Holland TS100 vs. Similar Tractors

Power Output
Below Average
Greater than 22% of similar tractors.
Operating Weight
Above Average
Greater than 89% of similar tractors.

Technical Specifications

Engine

Manufacturer
New Holland
Model
Genesis
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
304
Bore (in)
4.40
Stroke (in)
5
Rated RPM
2170
Power Output (hp)
88.5

Transmission

Type
Synchro Command, Dual Command, ElectroShift (unsynchronized gear, two-speed power shift)
Forward Gears
-
Reverse Gears
-
Total Gears
12 forward and 12 reverse, 24 forward and 24 reverse, 16 forward and 16 reverse, 24 forward and reverse with creeper (EconoShift: 8 forward and 2 reverse, Econo Dual Command: 16 forward and 4 reverse, Synchro Command: 12 forward and reverse, Synchro Dual Command: 24 forward and reverse, ElectroShift: 16 forward and reverse, ElectroShift - creeper: 24 forward and reverse)

Dimensions

Length (in)
150.2 (2WD), 158.9 (4WD)
Width (in)
79.1
Height (in)
113.4 (ROPS), 106.7 (Cab)
Operating Weight (lb)
7275 to 9855

Power Take-Off (PTO)

PTO Type
Independent
PTO Speed 1 (rpm)
540/1000
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
4x2 2WD or 4x4 MFWD 4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
14.8 ROPS, 16.8 Cab
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
30
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
2003
Hitch Type
-
Hitch Category
II/IIIN
Hitch Position
Rear
Hitch Capacity (lb)
4200 lbs, Assist ram: 6210 lbs, Two assist rams: 8240 lbs
Operator Station Type
ROPS or Cab
Starter Type
Electric
Brake Type
Hydraulic wet disc
Hydraulic System Type
Open or closed load sensing (optional)

Test Results

Nebraska Tractor Test Laboratory - Test Date: July - September, 1998

Maximum Power and Fuel Consumption

  • Maximum Power: 88.5 HP (66.0 kW) at 2050 rpm
  • Fuel Consumption at Maximum Power: 5.11 Gal/hr (19.34 l/h) with a fuel efficiency of 0.403 lb/hp.hr (0.245 kg/kW.h)
  • Standard Power Take-off Speed (1000 rpm): 5.11 Gal/hr (19.34 l/h) with a fuel efficiency of 0.403 lb/hp.hr (0.245 kg/kW.h)

Drawbar Performance

  • Power in 6th Gear: 72.9 HP (54.4 kW) with a drawbar pull of 7530 lbs (33.5 kN) and a speed of 3.63 mph (5.85 km/h)
  • Fuel Consumption in 6th Gear: 0.481 lb/hp.hr (0.293 kg/kW.h) with a fuel efficiency of 14.52 Hp.hr/gal (2.86 kW.h/l)

Torque and Engine Performance

  • Maximum Torque: 276.4 lb-ft (374.7 Nm) at 1355 rpm
  • Torque Rise: 33.6%

Hydraulic Performance

  • Pump Delivery Rate at Maximum Hydraulic Power: 19.8 GPM (74.8 l/min)
  • Hydraulic Power: 25.4 HP (18.96 kW) at delivery pressure of 2205 psi (152 bar)

Overall Efficiency

  • Fuel Efficiency at Standard PTO Speed (1000 rpm): 17.31 Hp.hr/gal (3.41 kW.h/l)
  • Fuel Consumption: 5.11 Gal/hr (19.34 l/h) at 2050 rpm

    NTTL.(1998). Nebraska Summary: S295 New Holland TS100 Diesel. Lincoln, NE: Nebraska Tractor Test Lab. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/2803
