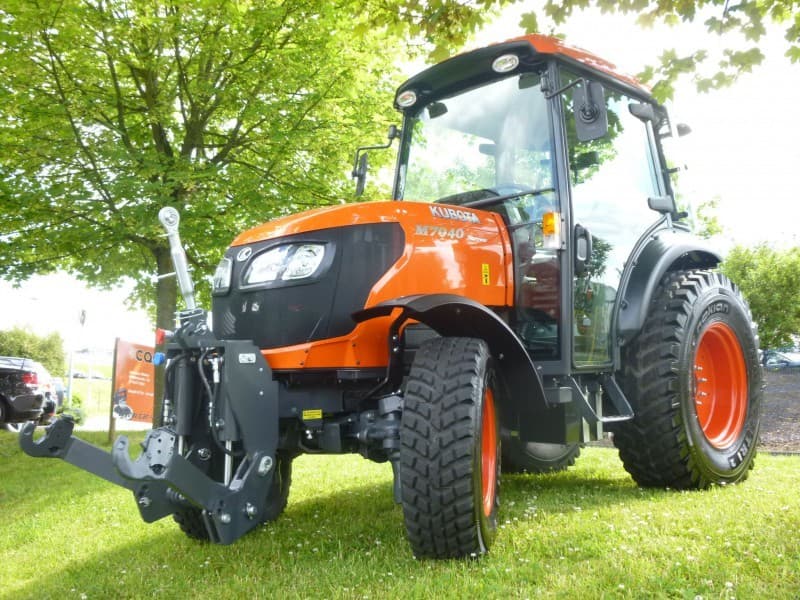

Kubota M7040

Last Updated: June 2024

Overview

The Kubota M7040 utility tractor offers a robust suite of features, making it versatile for various agricultural tasks. It is available in both two-wheel drive and four-wheel drive models, with a wheelbase of 80.7 inches that promotes stability during operation. Equipped with a powerful Kubota diesel engine, available in either naturally aspirated or turbocharged versions depending on the year, the M7040 delivers up to 68 horsepower while sustaining fuel efficiency. The operator can choose between a partially synchronized (Synchro-Shuttle) or a power shuttle (Hydraulic Shuttle) transmission, both featuring 8 forward and 8 reverse gears. The tractor's hydraulic system is of the open-center type, aided by hydrostatic power steering for ease of maneuvering. It features a rear three-point hitch with a lift capacity of 4190 pounds and an independent rear PTO operating at 540 rpm. Operator comfort is considered with an open station featuring two-post ROPS or an optional cab with air conditioning. The operational weight varies between 4475 to 5470 pounds, making the M7040 substantial enough to handle challenging tasks while remaining nimble.
Show more...

Key Specifications

Category: Utility

Power Output: 68

Transmission: Partially synchronized (Synchro-Shuttle) or power shuttle (Hydraulic-Shuttle)

Operating Weight: 4475 (2WD with ROPS) to 5470 (4WD with Cab)

Fuel Type: Diesel

Lift Capacity: 4190

Kubota M7040 vs. Similar Tractors

Power Output
Average
Greater than 63% of similar tractors.
Hitch Capacity
Above Average
Greater than 71% of similar tractors.
Operating Weight
Excellent
Greater than 96% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
V3307-DI (2007-2009), V3307-DI-T (2010-2013)
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged (V3307-DI-T version)
Cylinders
4
Displacement (ci)
203
Bore (in)
3.7
Stroke (in)
4.72
Rated RPM
2600
Power Output (hp)
68

Transmission

Type
Partially synchronized (Synchro-Shuttle) or power shuttle (Hydraulic-Shuttle)
Forward Gears
8
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
142.7 (2WD with Cab)
Width (in)
73.2
Height (in)
97.2 (ROPS), 101.0 (Cab)
Operating Weight (lb)
4475 (2WD with ROPS) to 5470 (4WD with Cab)

Power Take-Off (PTO)

PTO Type
Independent
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD or 4x4 MFWD 4WD
Drive Type
-
Steering Type
Hydrostatic power
Coolant Capacity (qts)
8.45
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
2013
Hitch Type
Three-Point Hitch
Hitch Category
II
Hitch Position
Rear
Hitch Capacity (lb)
4190
Operator Station Type
Open (ROPS) / Cab (Option)
Starter Type
Electric
Brake Type
Multiple wet discs
Hydraulic System Type
Open center
