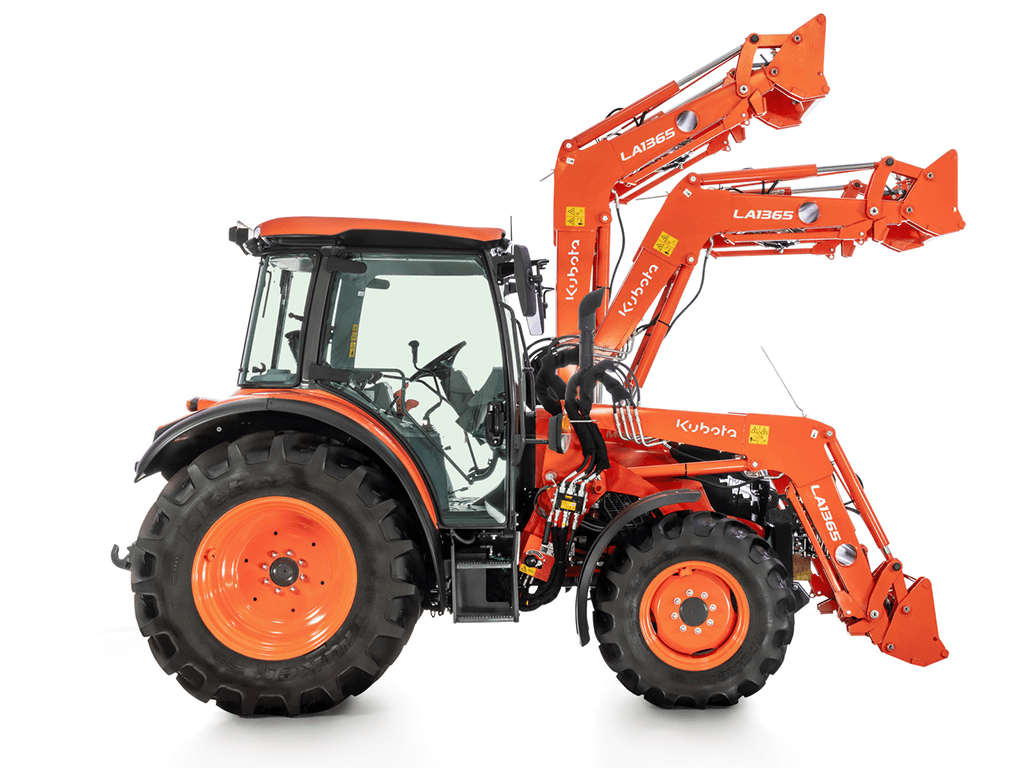

Kubota M4063

Last Updated: June 2024

Overview

The Kubota M4063 is a utility tractor that is part of the M4003 Series, designed to meet the various needs of modern farming and agriculture. With a robust 4-cylinder Kubota V3307 engine, it offers a displacement of 203.3 cubic inches and a power output of 66 horsepower. The engine operates at a rated RPM of 2400 and includes a liquid-cooled system to maintain optimum performance and durability. The tractor is equipped with an 18-speed power shuttle transmission, providing abundant gearing options for diverse tasks. The four-wheel drive (4WD), also known as 4x4 MFWD, ensures superior traction and handling across different terrains. The tractor's dimensions, with a length of 145.7 inches, a width of 76.8 inches, and a height of 101.6 inches when equipped with a cabin, are crafted to accommodate both functionality and operator comfort. This series began production in 2021 and adheres to Stage 5 emission standards, reinforcing Kubota's commitment to environmental sustainability. The M4063 is well-suited for various agricultural tasks ranging from fieldwork to loader work, aided by its lifting and traction capabilities.
Show more...

Key Specifications

Category: Utility

Power Output: 66

Transmission: Power shuttle

Drive Type: 4WD

Operating Weight: 5666 (ROPS) to 6702 (cab)

Fuel Type: Diesel

Kubota M4063 vs. Similar Tractors

Power Output
Average
Greater than 62% of similar tractors.
Operating Weight
Above Average
Greater than 89% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
V3307
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
203.3
Bore (in)
3.7
Stroke (in)
4.7
Rated RPM
2400
Power Output (hp)
66

Transmission

Type
Power shuttle
Forward Gears
18
Reverse Gears
18
Total Gears
-

Dimensions

Length (in)
145.7
Width (in)
76.8
Height (in)
101.6 (with cab)
Operating Weight (lb)
5666 (ROPS) to 6702 (cab)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard tires (ag)
Manufacture - End Year
-
Hitch Type
Category 2
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cabin (assumed from "Height (cab)" spec)
Starter Type
-
Brake Type
-
Hydraulic System Type
-
