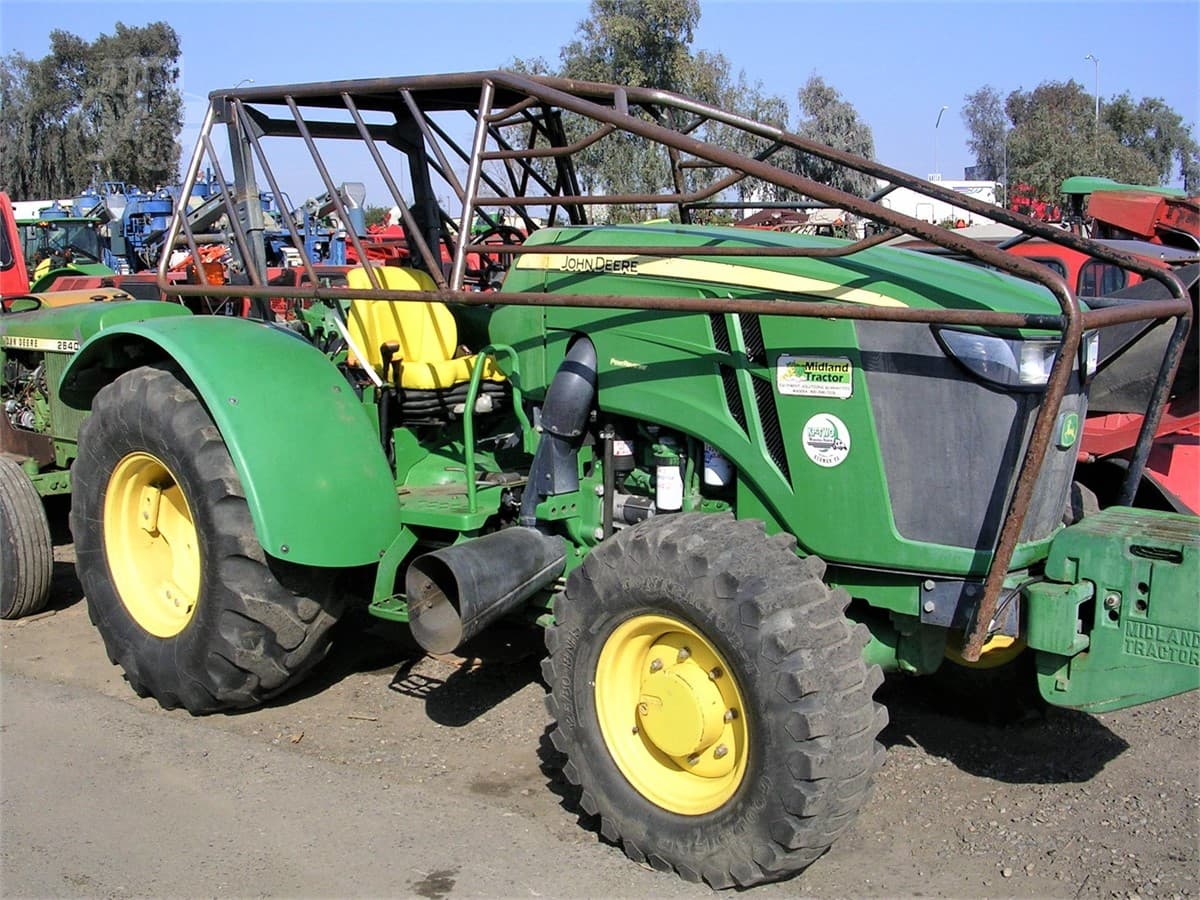

John Deere 5115ML

Last Updated: June 2024

Overview

The John Deere 5115ML is an orchard/vineyard tractor designed with a 4x4 MFWD 4WD chassis for superior traction and maneuverability. This model is powered by a 276 ci, 4-cylinder, turbocharged aftercooled diesel engine that delivers 115 horsepower at 2200 RPM. Its PowrReverser transmission provides 16 forward and reverse gears, enabling versatile operation across a variety of tasks. The tractor's power steering system, with a steering flow of 6.3 gpm and a 1950 psi pressure, ensures responsive navigation in tight spaces common in orchards and vineyards. With an operating weight of 7950 lbs and a height with ROPS of 89.3 inches, this tractor is designed to handle substantial work while fitting comfortably under tree canopies. The John Deere 5115ML operates on a 12-volt electric starter system and has an oil capacity of 13.6 quarts with a coolant capacity of 20 quarts to maintain efficient thermal management during extended operations.
Show more...

Key Specifications

Category: Agricultural, Orchard/Vineyard

Power Output: 115

Transmission: PowrReverser

Drive Type: 4WD

Operating Weight: 7950

Fuel Type: Diesel

John Deere 5115ML vs. Similar Tractors

Power Output
Above Average
Greater than 82% of similar tractors.
Operating Weight
Average
Greater than 43% of similar tractors.

Technical Specifications

Engine

Manufacturer
John Deere
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged aftercooled
Cylinders
4
Displacement (ci)
276
Bore (in)
4.19
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
115

Transmission

Type
PowrReverser
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
-
Width (in)
84
Height (in)
89.3
Operating Weight (lb)
7950

Power Take-Off (PTO)

PTO Type
Optional Transmission or Live PTO
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
20
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Category 3
Hitch Category
II
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
