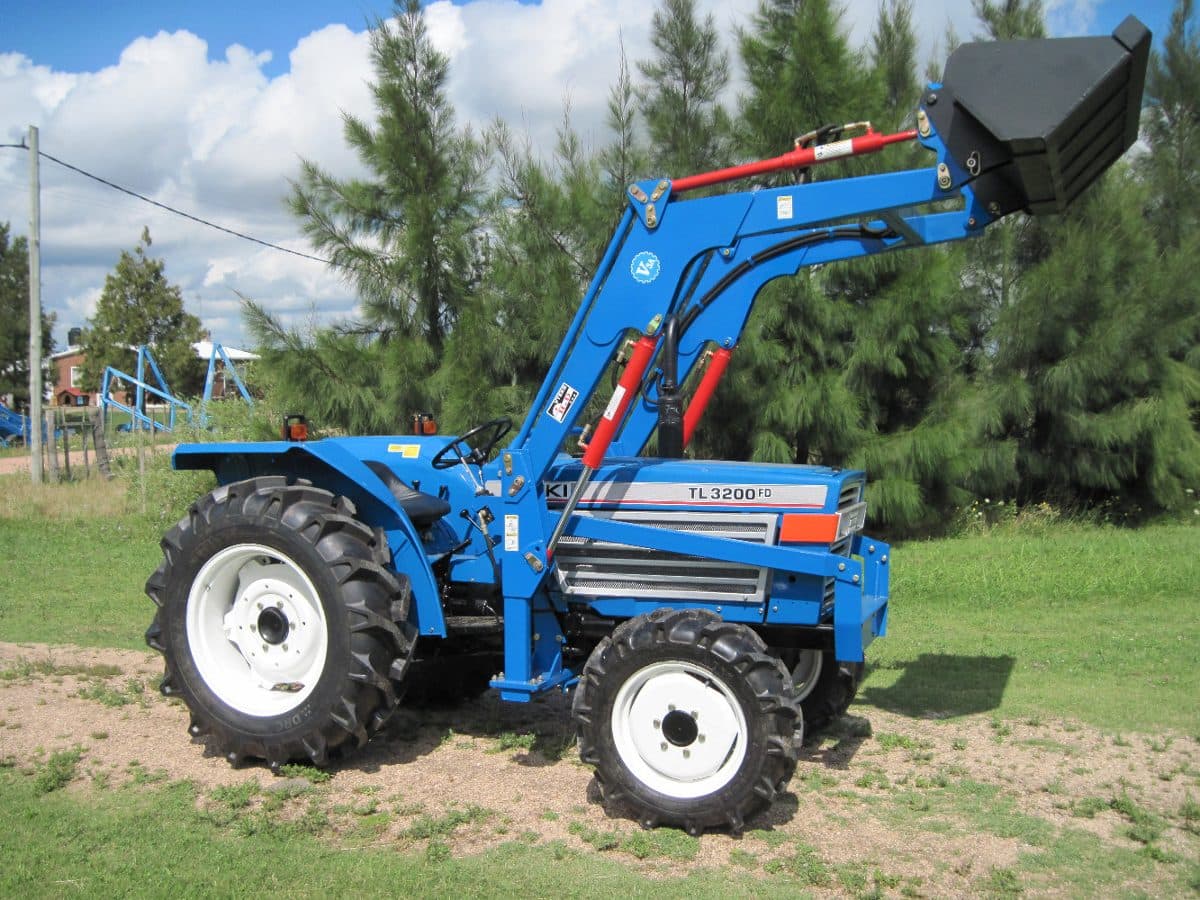

Iseki TL3200

Last Updated: June 2024

Overview

The Iseki TL3200 is a utility tractor that was outfitted with a four-cylinder, liquid-cooled, diesel Isuzu 4FA1 engine with a power output of 31.6 horsepower. With engine displacement at 90.7 cubic inches and an electric starter system running on a 12-volt circuit, it is built to deliver consistent and reliable performance. The tractor operates on either a 2WD or a 4WD chassis, with a wheelbase of 70.9 inches, and weighs between 2910 to 3175 pounds depending on the drive type. Featuring an 18 forward and 6 reverse transmission system, the TL3200 offers a variety of speed options for various tasks. The tractor is sized at 126.2 inches in length, 60 inches in width, and 76 inches in height (to the exhaust). Ground clearance stands at 14.2 inches which should afford good maneuverability over uneven terrains. Standard tire configuration for the 2WD model comes with 6.00-16 front tires and 13.6-26 rear tires, while the 4WD model steps up the front tire size to 8-18. This tractor is designed for a range of uses and would be at home on small farms or larger estates where its power and size are beneficial.
Show more...

Key Specifications

Category: Utility

Power Output: 31.6

Drive Type: 2WD/4WD

Operating Weight: 2910 (2WD) / 3175 (4WD)

Fuel Type: Diesel

Iseki TL3200 vs. Similar Tractors

Power Output
Below Average
Greater than 26% of similar tractors.
Operating Weight
Excellent
Greater than 95% of similar tractors.

Technical Specifications

Engine

Manufacturer
Isuzu
Model
4FA1
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
4
Displacement (ci)
90.7
Bore (in)
2.992
Stroke (in)
3.228
Rated RPM
2600
Power Output (hp)
31.6

Transmission

Type
-
Forward Gears
18
Reverse Gears
6
Total Gears
-

Dimensions

Length (in)
126.2
Width (in)
60
Height (in)
76
Operating Weight (lb)
2910 (2WD) / 3175 (4WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
2WD/4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag (Agricultural)
Manufacture - End Year
-
Hitch Type
JIS1
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
