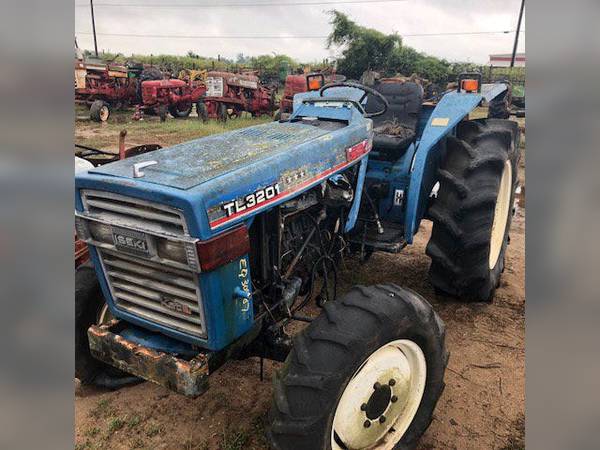

Iseki TL3201

Last Updated: June 2024

Overview

The Iseki TL3201 is a compact utility tractor known for its straightforward design and utility. Featuring a 31.6 horsepower Isuzu 4FA1 diesel engine and an 18-speed transmission, it provides adequate power and a variety of speed options for different tasks. With a 4x2 2WD chassis, it is less complex than 4WD systems, aimed at operations that require less traction. The tractor's liquid-cooled engine ensures long operating hours without overheating, vital for demanding tasks on a farm or job site. The substantial operating weight of 2932 pounds for the 2WD variant gives it stability and capacity for handling numerous attachments and implements. At a length of 126.4 inches and a width of 60.2 inches, the TL3201 balances compact dimensions with a functionality that makes it a versatile machine for a variety of tasks. The tire configuration with standard agricultural treads allows it to navigate on different terrains, although tread sizes and types may vary to accommodate different working conditions and personal preferences. With an electric starter and a height of 76 inches at the exhaust, the Iseki TL3201 offers a combination of practical features and size for a range of tasks.
Show more...

Key Specifications

Category: Utility

Power Output: 31.6

Drive Type: 2WD

Operating Weight: 2932 (2WD)

Fuel Type: diesel

Iseki TL3201 vs. Similar Tractors

Power Output
Below Average
Greater than 26% of similar tractors.
Operating Weight
Above Average
Greater than 72% of similar tractors.

Technical Specifications

Engine

Manufacturer
Isuzu
Model
4FA1
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
diesel
Induction Type
-
Cylinders
4
Displacement (ci)
90.7
Bore (in)
-
Stroke (in)
-
Rated RPM
2600
Power Output (hp)
31.6

Transmission

Type
-
Forward Gears
18
Reverse Gears
6
Total Gears
-

Dimensions

Length (in)
126.4
Width (in)
60.2
Height (in)
76 (height of the exhaust)
Operating Weight (lb)
2932 (2WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard tires (ag)
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
electric
Brake Type
-
Hydraulic System Type
-
