IMR Rakovica R 50 DV

Last Updated: June 2024

Overview

The IMR Rakovica R 50 DV is a versatile utility tractor well-suited for a variety of tasks in many different settings. Equipped with a 46.9 horsepower diesel engine and an 8-speed synchronized gear transmission, it has enough power and control for both field and specialty tasks. This model comes with a liquid-cooled, three-cylinder engine, direct-injection fuel system, and an electric starter. It offers a four-wheel drive (MFWD 4WD) chassis and a wheelbase of 66.5 inches, providing stability and traction across different terrains. With its weight of 3968 pounds and 8-speed gearbox, it offers durability and functionality for many farming applications. Additionally, Stage 2 emissions standards reflect its compliance with environmental regulations at the time of manufacture.
Show more...

Key Specifications

Category: Utility

Power Output: 46.9

Transmission: Synchronized gear

Drive Type: MFWD (Mechanical Front Wheel Drive)

Operating Weight: 3968

Fuel Type: Diesel

Image Gallery

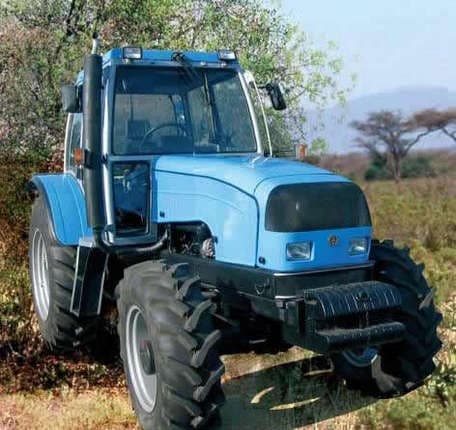

IMR Rakovica R 50 DV Tractor IMR Rakovica R 50 DV Tractor IMR Rakovica R 50 DV Tractor IMR Rakovica R 50 DV Tractor IMR Rakovica R 50 DV Tractor IMR Rakovica R 50 DV Tractor IMR Rakovica R 50 DV Tractor IMR Rakovica R 50 DV Tractor IMR Rakovica R 50 DV Tractor IMR Rakovica R 50 DV Tractor

IMR Rakovica R 50 DV vs. Similar Tractors

Power Output
Average
Greater than 44% of similar tractors.
Operating Weight
Average
Greater than 36% of similar tractors.

Technical Specifications

Engine

Manufacturer
-
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Direct-injection
Cylinders
3
Displacement (ci)
127.1
Bore (in)
3.7
Stroke (in)
3.937
Rated RPM
2600
Power Output (hp)
46.9

Transmission

Type
Synchronized gear
Forward Gears
8
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
116.1
Width (in)
52.8
Height (in)
-
Operating Weight (lb)
3968

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
MFWD (Mechanical Front Wheel Drive)
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Radial
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
