IMR Rakovica R 65 Super

Last Updated: June 2024

Overview

The IMR Rakovica R 65 Super is a utility tractor known for its robust build and simple, functional design. It is powered by an IMR Rakovica DM34T four-cylinder liquid-cooled diesel engine with a displacement of 203.2 cubic inches, capable of delivering 63 horsepower and a torque of 151.9 lb-ft at low engine speeds. The tractor features a 4x2 2WD chassis with hydrostatic power steering, a basic gear transmission providing 6 forward and 2 reverse gears, dry discs clutch, and a rated RPM of 2300. It operates on standard-sized agricultural front and rear tires and offers a substantial operating weight of 5732 lbs, together with a good ground clearance. With its electric starter system and open center hydraulic type, the R 65 Super emphasizes functionality and reliability for various utility tasks.
Show more...

Key Specifications

Category: Utility

Power Output: 63

Transmission: gear

Drive Type: 2WD

Operating Weight: 5732

Fuel Type: diesel

Image Gallery

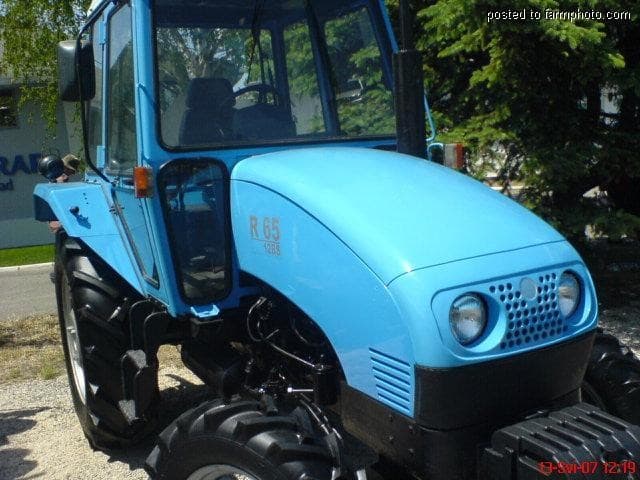

IMR Rakovica R 65 Super Tractor IMR Rakovica R 65 Super Tractor IMR Rakovica R 65 Super Tractor IMR Rakovica R 65 Super Tractor IMR Rakovica R 65 Super Tractor IMR Rakovica R 65 Super Tractor IMR Rakovica R 65 Super Tractor IMR Rakovica R 65 Super Tractor IMR Rakovica R 65 Super Tractor IMR Rakovica R 65 Super Tractor

IMR Rakovica R 65 Super vs. Similar Tractors

Power Output
Average
Greater than 59% of similar tractors.
Operating Weight
Average
Greater than 47% of similar tractors.

Technical Specifications

Engine

Manufacturer
IMR Rakovica
Model
DM34T
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
diesel
Induction Type
direct-injection
Cylinders
4
Displacement (ci)
203.2
Bore (in)
3.6
Stroke (in)
5
Rated RPM
2300
Power Output (hp)
63

Transmission

Type
gear
Forward Gears
6
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
142.1
Width (in)
72.6
Height (in)
98.8 (assuming this is with cab)
Operating Weight (lb)
5732

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
hydrostatic power
Coolant Capacity (qts)
16.9
Front Tire Diameter (in)
16
Front Tire Width (in)
-
Rear Tire Diameter (in)
28
Rear Tire Width (in)
13 (assuming 14.9 refers to the tire profile width)
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
II
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Unknown (assuming cab based on height dimension)
Starter Type
electric
Brake Type
-
Hydraulic System Type
open center
