CaseIH MX305 Magnum

Last Updated: June 2024

Overview

The CaseIH MX305 Magnum is a hardworking Row-Crop tractor equipped with a turbocharged and intercooled CNH diesel engine. It features a 4-wheel drive (4WD) chassis with hydrostatic power steering. This model is built with a power-shift transmission, offering 18 forward and 4 reverse gears. With extended options for overdrive and creeper, the MX305 provides added flexibility, with up to 23 forward and 6 reverse gears. The liquid-cooled engine houses six cylinders, with 540 ci displacement and an achieving power output of 304 horsepower. Weighing in at 21,585 lbs., and standing at a height of 128.5 inches, the MX305 Magnum showcases a robust build for demanding row-crop tasks.
Show more...

Key Specifications

Category: Row Crop

Power Output: 304

Transmission: Powershift

Drive Type: 4WD

Operating Weight: 21,585

Fuel Type: Diesel

Image Gallery

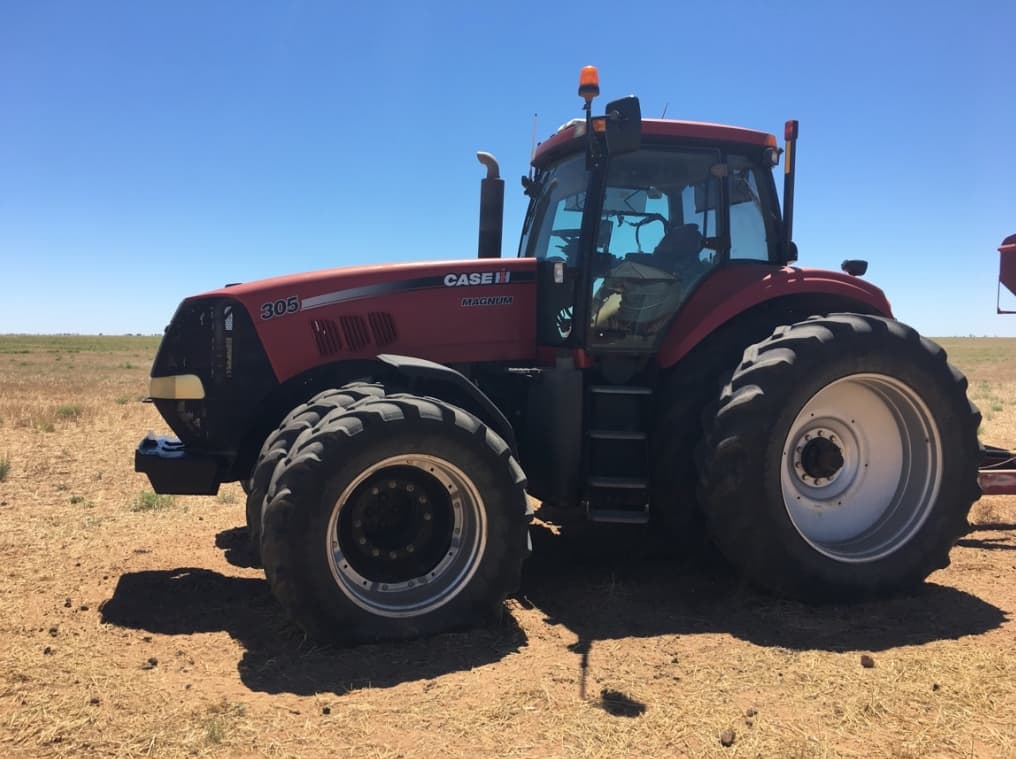

CaseIH MX305 Magnum Tractor CaseIH MX305 Magnum Tractor CaseIH MX305 Magnum Tractor CaseIH MX305 Magnum Tractor CaseIH MX305 Magnum Tractor CaseIH MX305 Magnum Tractor CaseIH MX305 Magnum Tractor CaseIH MX305 Magnum Tractor CaseIH MX305 Magnum Tractor CaseIH MX305 Magnum Tractor CaseIH MX305 Magnum Tractor CaseIH MX305 Magnum Tractor

CaseIH MX305 Magnum vs. Similar Tractors

Power Output
Above Average
Greater than 88% of similar tractors.
Operating Weight
Below Average
Greater than 13% of similar tractors.

Technical Specifications

Engine

Manufacturer
CNH
Model
-
Cooling Type
Liquid
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged, Intercooled
Cylinders
6
Displacement (ci)
540
Bore (in)
4.488
Stroke (in)
5.689
Rated RPM
2000
Power Output (hp)
304

Transmission

Type
Powershift
Forward Gears
18 (option for overdrive: 19, option for Creeper: 23)
Reverse Gears
4 (option for overdrive: 4 , option for Creeper: 6)
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
128.5
Operating Weight (lb)
21,585

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
24
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
III
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric (12 volts)
Brake Type
-
Hydraulic System Type
PFC
