CaseIH Optum 300

Last Updated: June 2024

Overview

The CaseIH Optum 300 is a versatile row-crop tractor designed for power and efficiency. Equipped with FPT's electronic variable geometry turbocharged with air-to-air aftercooling diesel engine, the Optum 300 offers significant power with an output of 300 hp, which can be maximized up to 313 hp. This 6-cylinder engine has a displacement of 410.6 ci and is cooled by a liquid-cooled system. The Optum 300 has a weight of 23,149 lbs and a maximum allowable weight of 35,274 lbs, making it a robust and reliable choice for a broad range of applications.

Key Specifications

Category: Row Crop

Power Output: 300 hp

Transmission: Continuously Variable Transmission (CVT)

Drive Type: 4WD

Operating Weight: 23149

Fuel Type: Diesel

Image Gallery

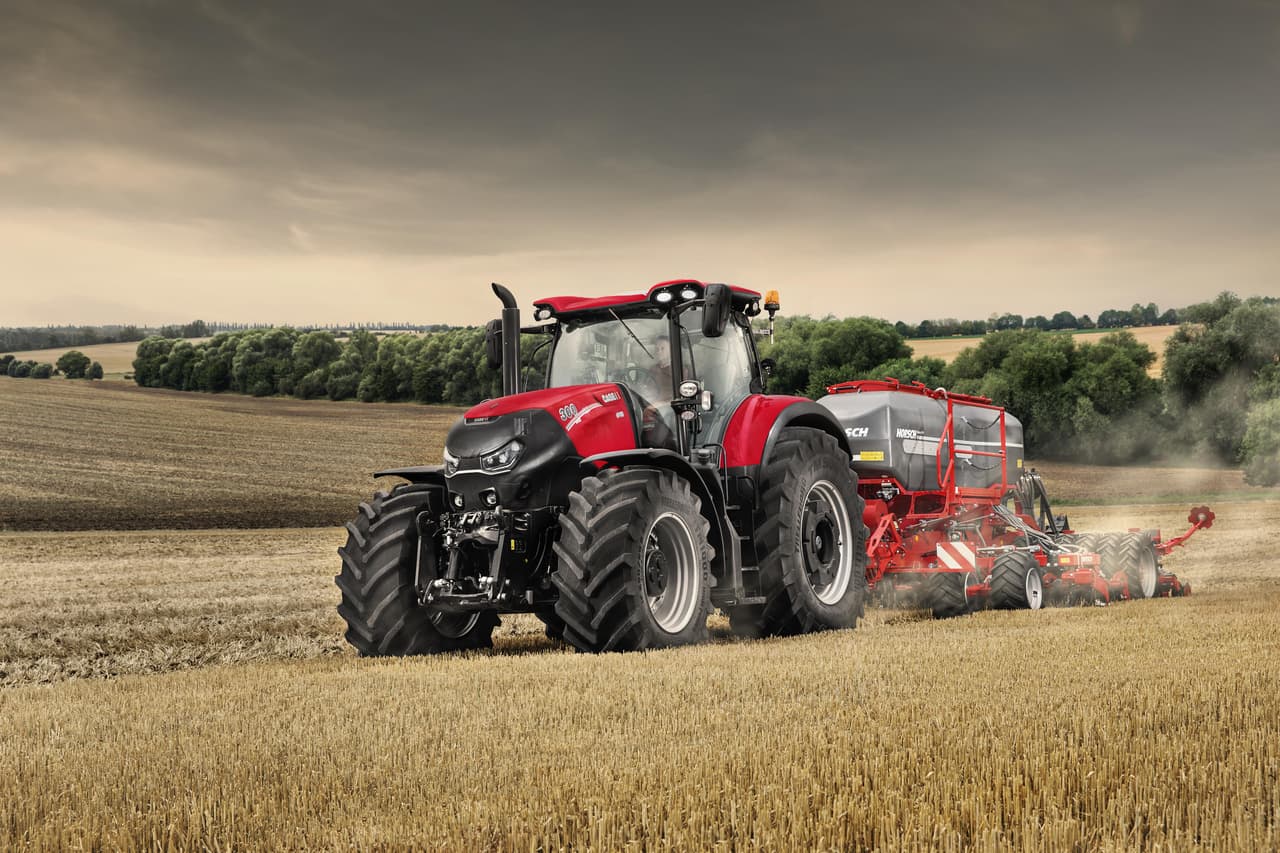

CaseIH Optum 300 Tractor

CaseIH Optum 300 vs. Similar Tractors

Power Output

Above Average

Greater than 88% of similar tractors.

Operating Weight

Above Average

Greater than 77% of similar tractors.

Technical Specifications

Engine

Manufacturer: FPT
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Electronic Variable Geometry Turbocharged with air-to-air aftercooling
Cylinders: 6
Displacement (ci): 410.6
Bore (in): 4.095
Stroke (in): 5.197
Rated RPM: 2100
Power Output (hp): 300 hp

Transmission

Type: Continuously Variable Transmission (CVT)
Forward Gears: Infinite (4 range) forward and infinite (2 range) reverse
Reverse Gears: Infinite (4 range) forward and infinite (2 range) reverse
Total Gears: -

Dimensions

Length (in): 208.2
Width (in): 119
Height (in): 132.5 (cab)
Operating Weight (lb): 23149

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): 24
Front Tire Width (in): 16.54
Rear Tire Diameter (in): 50
Rear Tire Width (in): 18.9
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: -
Hitch Type: III
Hitch Category: -
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: Cab
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Closed center pressure flow compensating (PFC)
