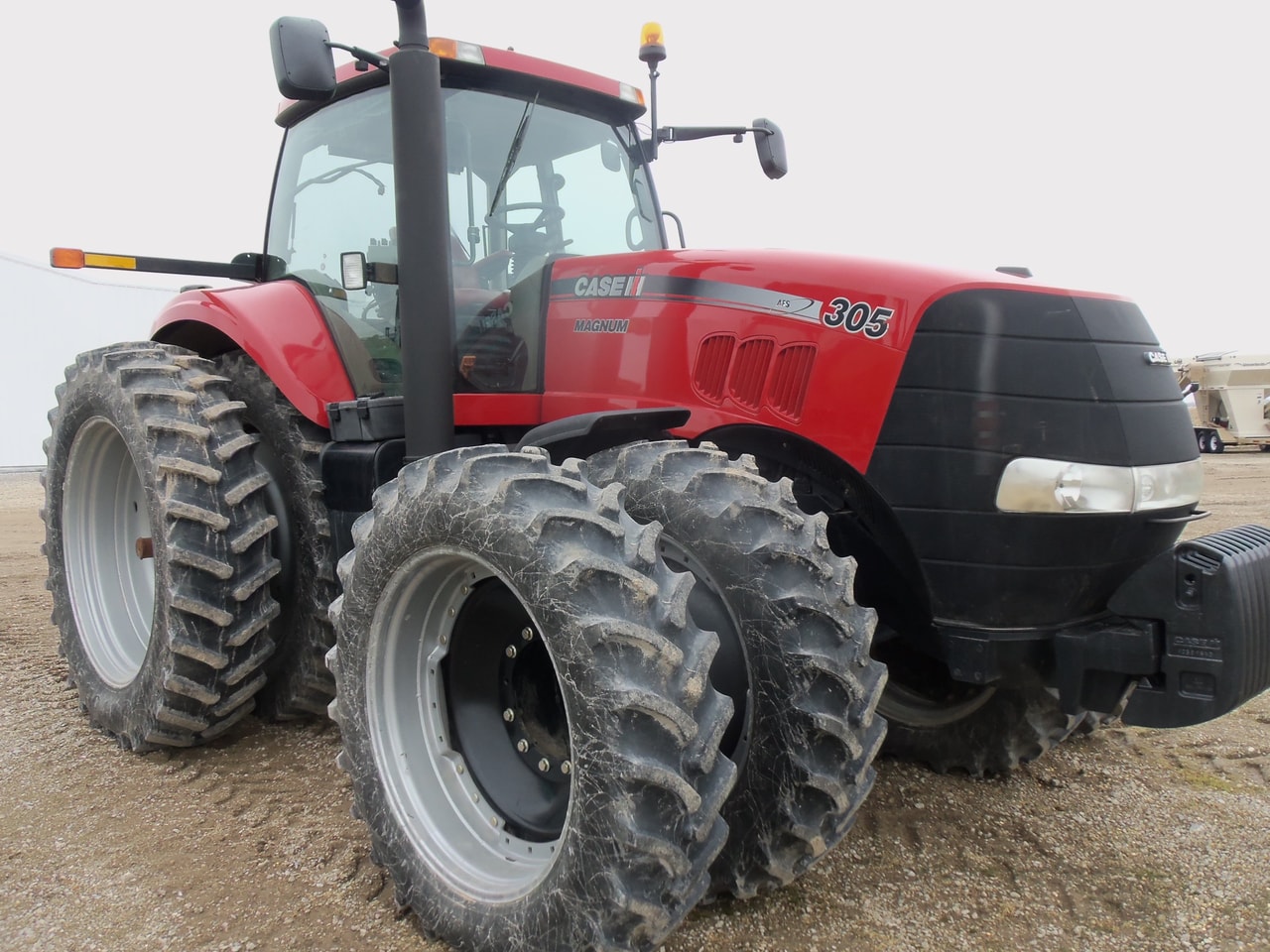

CaseIH Magnum 305

Last Updated: September 2024

Overview

The CaseIH Magnum 305 is a powerful row crop tractor built for serious farming. It has a strong 6-cylinder diesel engine that puts out 304 horsepower. This engine is very big for a tractor, with 540 cubic inches of space inside. It's also turbocharged, which means it can work hard all day long.

This tractor is a 4-wheel drive model with a full powershift transmission. It has 23 forward gears and 6 reverse gears, so you can always find the right speed for your job. The Magnum 305 is heavy, weighing 21,585 pounds, which helps it pull big equipment. It has a cab for the driver and power steering to make it easier to control. The hydraulic system is high-tech, using pressure-flow compensating (PFC) technology. At the back, there's a strong Category 3 hitch for attaching tools.
Show more...

Key Specifications

Category: Row Crop

Power Output: 304 hp (226.7 kW)

Transmission: Full powershift

Drive Type: 4WD

Operating Weight: 21585 lb (9791 kg)

Fuel Type: Diesel

CaseIH Magnum 305 vs. Similar Tractors

Power Output

The Power Output for the CaseIH Magnum 305 is Excellent. It is greater than 93% of similar Row Crop tractors in our database.

Horsepower distribution of Row Crop tractors

(across 1.1K+ tractors in our database)

Operating Weight

The Operating Weight for the CaseIH Magnum 305 is Above Average. It is greater than 88% of similar Row Crop tractors in our database.

Operating weight distribution of Row Crop tractors

(across 1.3K+ tractors in our database)

Engine Displacement

The Engine Displacement for the CaseIH Magnum 305 is Excellent. It is greater than 95% of similar Row Crop tractors in our database.

Engine displacement distribution of Row Crop tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the CaseIH Magnum 305 is Below Average. It is greater than 17% of similar Row Crop tractors in our database.

Engine rated RPM distribution of Row Crop tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
CNH
Cooling Type
Liquid-cooled
Valve Configuration
24-Valve
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
6
Displacement
540 ci (8.8 L)
Bore
4.49 in (114.0 mm)
Stroke
5.69 in (144.5 mm)
Rated RPM
2000
Power Output
304 hp (226.7 kW)

Transmission

Type
Full powershift
Forward Gears
23
Reverse Gears
6

Drivetrain

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
