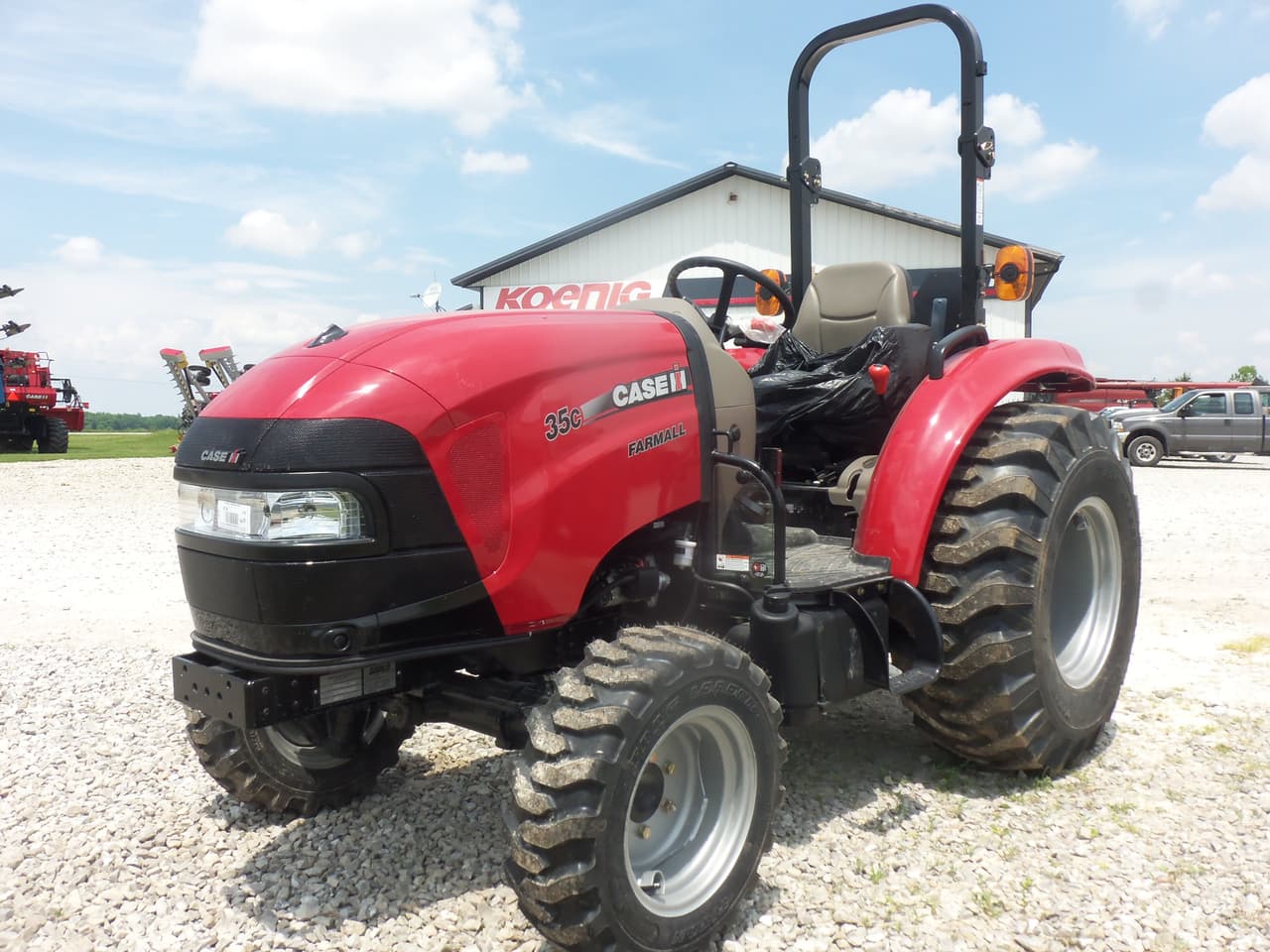

CaseIH Farmall 35C

Last Updated: September 2024

Overview

The CaseIH Farmall 35C is a compact utility tractor built for versatility and efficiency. It features a 4-wheel drive system and power steering, making it easy to handle in various farm tasks. The tractor is powered by a Shibaura diesel engine with 3 cylinders and a turbocharger. This engine produces 36.2 horsepower, which is average for its class, and meets Tier IV emissions standards for cleaner operation.

One of the Farmall 35C's strengths is its transmission. It has a synchronized shuttle with 12 forward and 12 reverse gears, giving operators plenty of options for different jobs. The tractor's rear hitch can lift up to 4,500 pounds, which is very high for its size. It has an open operator station with a roll-over protective structure (ROPS) for safety. The Farmall 35C is compact, measuring 119 inches long, 66.4 inches wide, and 93.6 inches tall. Its weight of 3,218 pounds is lighter than many similar tractors, which can be good for reducing soil compaction.
Show more...

Key Specifications

Category: Utility

Power Output: 36 hp (27.0 kW)

Transmission: Synchronized Shuttle

Drive Type: 4WD

Operating Weight: 3218 lb (1460 kg)

Fuel Type: Diesel

CaseIH Farmall 35C vs. Similar Tractors

Power Output

The Power Output for the CaseIH Farmall 35C is Average. It is greater than 33% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 4.7K+ tractors in our database)

Operating Weight

The Operating Weight for the CaseIH Farmall 35C is Below Average. It is greater than 29% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 4.4K+ tractors in our database)

Engine Displacement

The Engine Displacement for the CaseIH Farmall 35C is Below Average. It is greater than 19% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the CaseIH Farmall 35C is Above Average. It is greater than 77% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Shibaura
Model
N843T-F-27
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
3
Displacement
91 ci (1.5 L)
Bore
3.31 in (84.0 mm)
Stroke
3.54 in (90.0 mm)
Rated RPM
2600
Power Output
36 hp (27.0 kW)

Transmission

Type
Synchronized Shuttle
Forward Gears
12
Reverse Gears
12

Drivetrain

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
