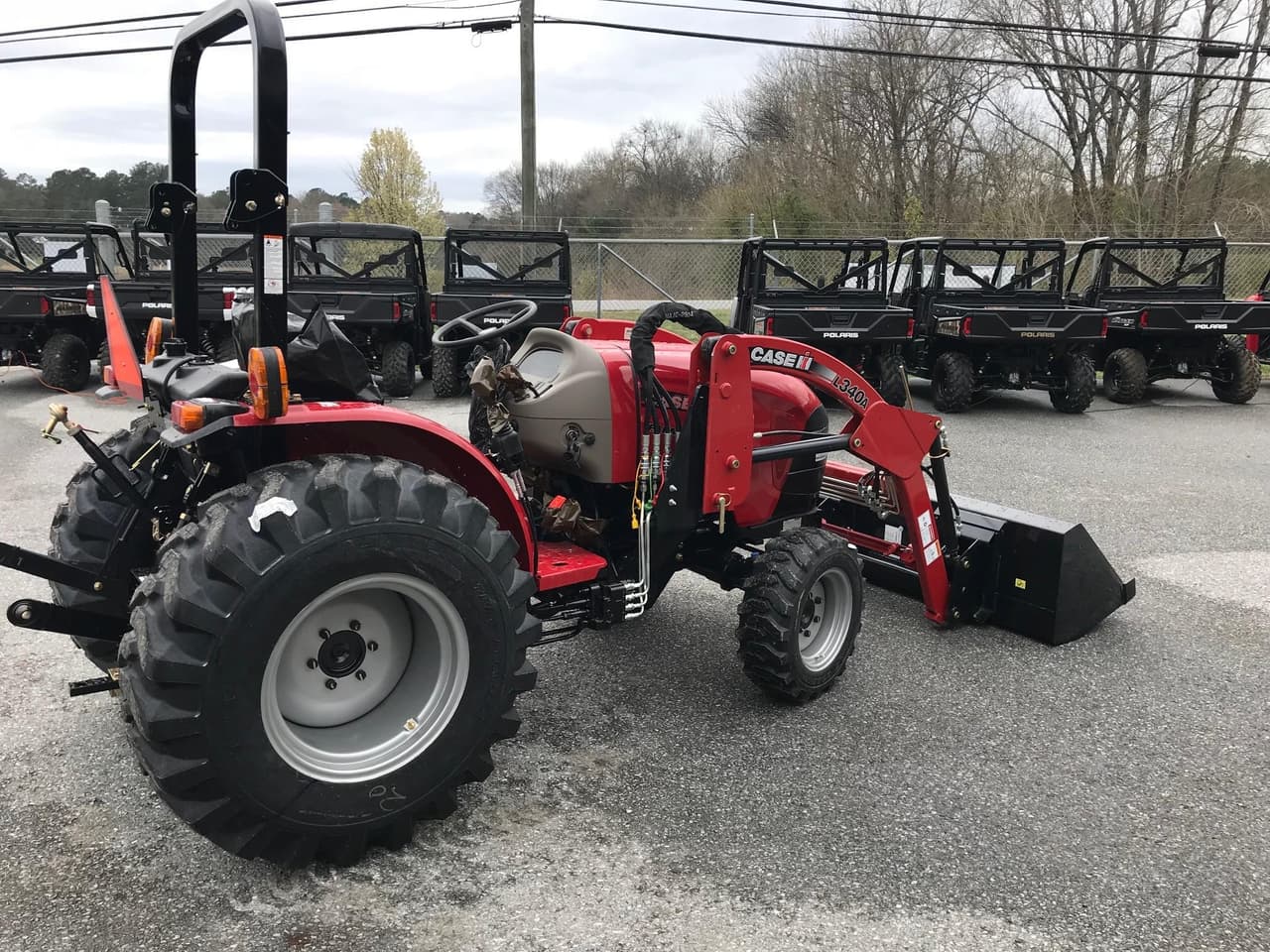

CaseIH Farmall 35A Series II

Last Updated: September 2024

Overview

The CaseIH Farmall 35A Series II is a compact utility tractor designed for various farm tasks. It features a 4-wheel drive system and a mechanical shuttle transmission with 12 forward and 12 reverse gears, giving farmers good control in different conditions.

This tractor is powered by a LS Mtron L3C19-T engine. The 3-cylinder, turbocharged diesel engine has a displacement of 115 ci, which is below average for its class. It produces 35 hp at 2600 rpm, making it suitable for light to medium-duty work. The tractor's size is compact, measuring 145.2 inches long, 66.5 inches wide, and 88.2 inches tall. With an operating weight of 3067 lb, it's relatively light and easy to maneuver. The Farmall 35A Series II comes with agricultural tires, a rear Type I hitch, and an open center hydraulic system, making it versatile for various farm implements and attachments.
Show more...

Key Specifications

Category: Utility

Power Output: 35 hp (26.1 kW)

Transmission: Mechanical Shuttle

Drive Type: 4WD

Operating Weight: 3067 lb (1391 kg)

Fuel Type: Diesel

CaseIH Farmall 35A Series II vs. Similar Tractors

Power Output

The Power Output for the CaseIH Farmall 35A Series II is Average. It is greater than 31% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 4.7K+ tractors in our database)

Operating Weight

The Operating Weight for the CaseIH Farmall 35A Series II is Below Average. It is greater than 27% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 4.4K+ tractors in our database)

Engine Displacement

The Engine Displacement for the CaseIH Farmall 35A Series II is Average. It is greater than 31% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the CaseIH Farmall 35A Series II is Above Average. It is greater than 77% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
LS Mtron
Model
L3C19-T
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
3
Displacement
115 ci (1.9 L)
Bore
3.46 in (88.0 mm)
Stroke
4.05 in (103.0 mm)
Rated RPM
2600
Power Output
35 hp (26.1 kW)

Transmission

Type
Mechanical Shuttle
Forward Gears
12
Reverse Gears
12

Drivetrain

Chassis
4x4 MFWD 4WD
Drive Type
4WD
