CaseIH Farmall 35

Last Updated: June 2024

Overview

The CaseIH Farmall 35 is a versatile compact utility tractor that delivers reliable performance for various farming tasks. It features a Shibaura N843L engine with a gross power output of 35 horsepower, combined with a hydrostatic transmission, delivering infinite forward and reverse gears. This tractor has a wheelbase of 63 inches, providing stability during operations. For increased longevity and optimum performance, the 3-cylinder diesel engine is liquid cooled, and features a dual stage dry air cleaner and glow plugs. The Farmall 35 is also well-equipped for comfortable operation, featuring hydrostatic power steering and a user-friendly open center hydraulic system.
Show more...

Key Specifications

Category: Utility

Power Output: 35

Transmission: Hydrostatic

Operating Weight: 2526

Fuel Type: Diesel

Image Gallery

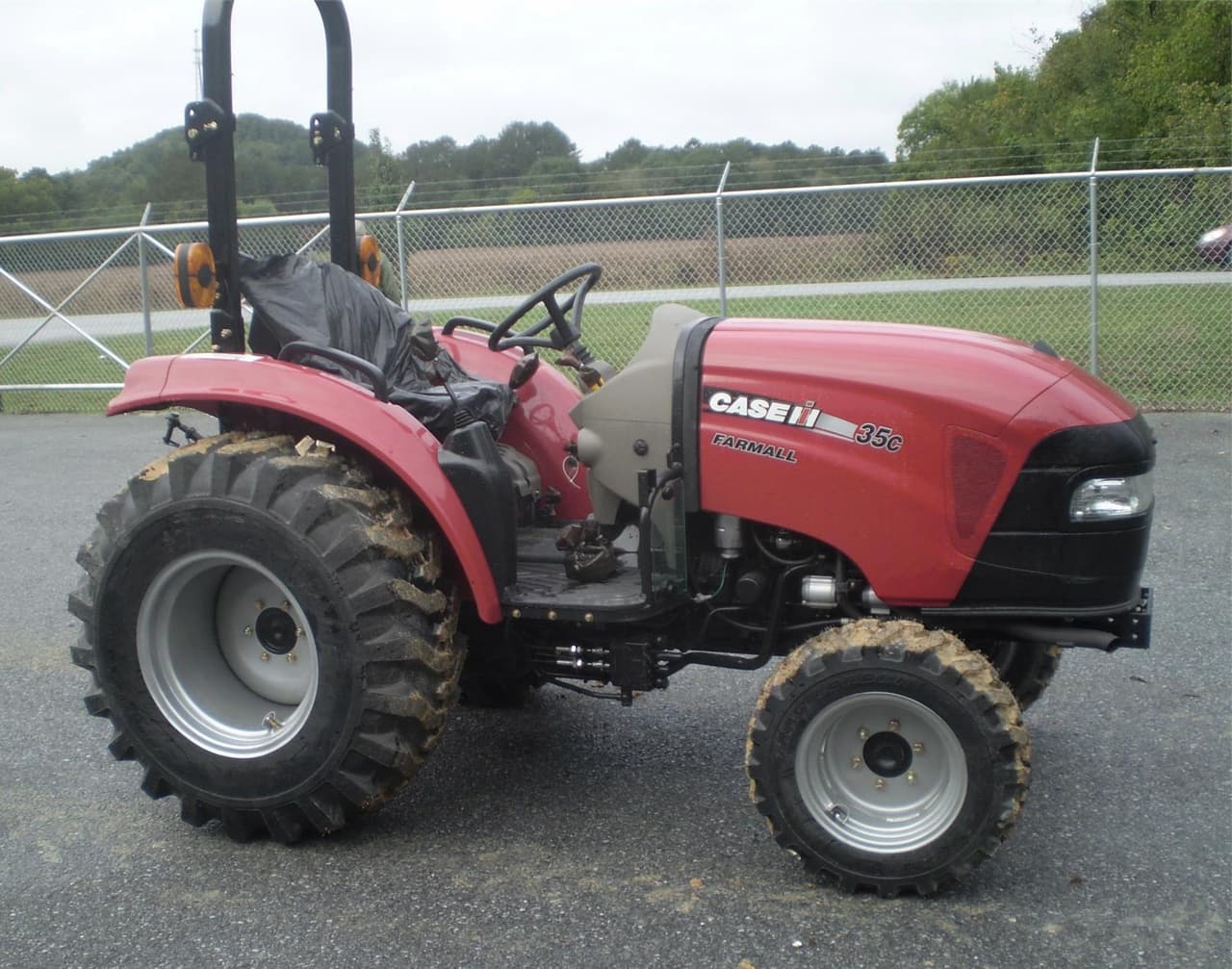

CaseIH Farmall 35 Tractor CaseIH Farmall 35 Tractor CaseIH Farmall 35 Tractor CaseIH Farmall 35 Tractor CaseIH Farmall 35 Tractor CaseIH Farmall 35 Tractor

CaseIH Farmall 35 vs. Similar Tractors

Power Output
Average
Greater than 32% of similar tractors.
Operating Weight
Below Average
Greater than 20% of similar tractors.

Technical Specifications

Engine

Manufacturer
Shibaura
Model
N843L
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural Aspiration
Cylinders
3
Displacement (ci)
101.4
Bore (in)
-
Stroke (in)
-
Rated RPM
2600
Power Output (hp)
35

Transmission

Type
Hydrostatic
Forward Gears
Infinite
Reverse Gears
Infinite
Total Gears
-

Dimensions

Length (in)
112.4
Width (in)
54.3
Height (in)
87.8 (with ROPS)
Operating Weight (lb)
2526

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
-
Steering Type
Hydrostatic Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
14
Front Tire Width (in)
7
Rear Tire Diameter (in)
24
Rear Tire Width (in)
11.2
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
