Ursus 1014

Last Updated: June 2024

Overview

The Ursus 1014 is a versatile row-crop tractor that was produced by Ursus in Warsaw, Poland. Manufactured from 1984 to 2009, it came with either a two-wheel drive (2WD) or four-wheel drive (4WD) setup. This tractor was particularly known for its robust power shift transmission that included 16 forward and 8 reverse gears, offering substantial flexibility and power. The presence of a turbocharged, four-cylinder, 278.4 cubic inch diesel engine with a rating of 96 horsepower at 2200 rpm and a torque of 247.8 lb-ft at 1600 rpm, makes it a reliable choice for various farming tasks. The engine's liquid cooling system and the power steering feature demonstrate Ursus' commitment to durability and operator comfort. Its three-point hitch system with a lift capacity of 6,725 lbs, power steering, hydraulic dry disc brakes, and a standard cab are indicative of its design for productivity and functionality in agricultural settings.

Key Specifications

Category: Row Crop

Power Output: 96

Transmission: Two-speed power shift

Drive Type: 2WD/4WD (MFWD)

Operating Weight: 8973

Fuel Type: Diesel

Image Gallery

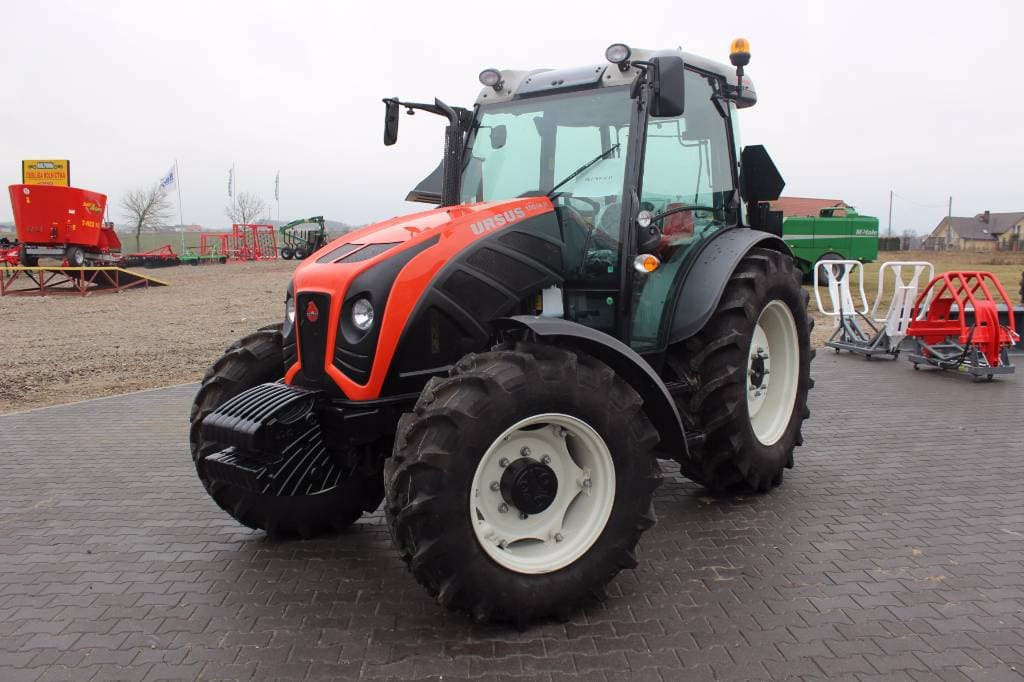

Ursus 1014 Tractor

Ursus 1014 vs. Similar Tractors

Power Output

Below Average

Greater than 19% of similar tractors.

Hitch Capacity

Average

Greater than 44% of similar tractors.

Operating Weight

Average

Greater than 30% of similar tractors.

Technical Specifications

Engine

Manufacturer: Ursus
Model: Z8002.1
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 4
Displacement (ci): 278.4
Bore (in): 4.33
Stroke (in): 4.72
Rated RPM: 2200
Power Output (hp): 96

Transmission

Type: Two-speed power shift
Forward Gears: 16
Reverse Gears: 8
Total Gears: -

Dimensions

Length (in): 155.9
Width (in): -
Height (in): 105.9
Operating Weight (lb): 8973

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): 1000
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD or 4x4 MFWD 4WD
Drive Type: 2WD/4WD (MFWD)
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): 16 (for 2WD) / 24 (for 4WD)
Front Tire Width (in): -
Rear Tire Diameter (in): 34
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: 2009
Hitch Type: Three-Point Hitch
Hitch Category: II
Hitch Position: Rear
Hitch Capacity (lb): 6725
Operator Station Type: Cab (standard)
Starter Type: Electric
Brake Type: Hydraulic dry disc
Hydraulic System Type: -
