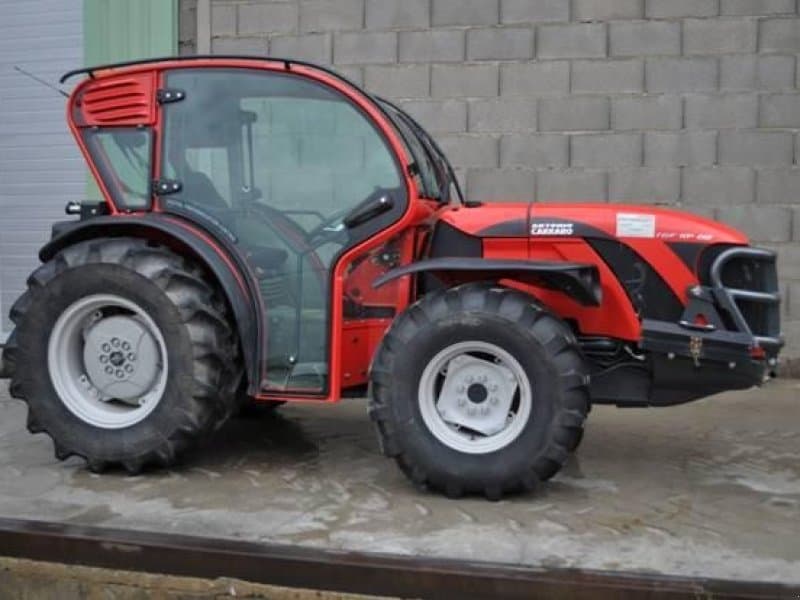

Antonio Carraro TGF 10400

Last Updated: September 2024

Overview

The Antonio Carraro TGF 10400 is a powerful orchard and vineyard tractor designed for agricultural use. It features a strong 4-cylinder diesel engine made by VM Motori, which produces 95 hp at 2600 rpm. This engine power is above average compared to other tractors, making it suitable for demanding farm tasks. The tractor has a 4x4 articulated chassis with four-wheel drive, providing excellent traction and maneuverability in tight spaces.

This tractor comes with a 16-speed transmission, offering 16 forward and 16 reverse gears. This wide range of speeds allows farmers to choose the perfect pace for different jobs. The TGF 10400 has a comfortable cab for the operator and uses hydraulic power steering for easy control. It has a rear hitch for attaching various implements and runs on agricultural tires. At 133.2 inches long and weighing 5247 lb, it's a compact yet capable machine. The tractor also meets Stage 3A emissions standards, showing its modern design and environmental consideration.
Show more...

Key Specifications

Category: Orchard/Vineyard

Power Output: 95 hp (70.8 kW)

Transmission: 16-speed

Drive Type: 4WD

Operating Weight: 5247 lb (2380 kg)

Fuel Type: Diesel

Antonio Carraro TGF 10400 vs. Similar Tractors

Power Output

The Power Output for the Antonio Carraro TGF 10400 is Above Average. It is greater than 72% of similar Orchard/Vineyard tractors in our database.

Horsepower distribution of Orchard/Vineyard tractors

(across 0.3K+ tractors in our database)

Operating Weight

The Operating Weight for the Antonio Carraro TGF 10400 is Average. It is greater than 42% of similar Orchard/Vineyard tractors in our database.

Operating weight distribution of Orchard/Vineyard tractors

(across 0.3K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Antonio Carraro TGF 10400 is Average. It is greater than 38% of similar Orchard/Vineyard tractors in our database.

Engine displacement distribution of Orchard/Vineyard tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Antonio Carraro TGF 10400 is Excellent. It is greater than 91% of similar Orchard/Vineyard tractors in our database.

Engine rated RPM distribution of Orchard/Vineyard tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
VM Motori
Model
D754
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
4
Displacement
181 ci (3.0 L)
Bore
3.70 in (94.0 mm)
Stroke
4.21 in (107.0 mm)
Rated RPM
2600
Power Output
95 hp (70.8 kW)

Transmission

Type
16-speed
Forward Gears
16
Reverse Gears
16

Drivetrain

Chassis
4x4 articulated 4WD
Drive Type
4WD
Steering Type
Hydraulic power
